GXV670 TAF2/A (GJAH) - Honda Engine, Made in Japan (SN: GJAH-1020001 - GJAH-9999999) AIR CLEANER (SNORKEL) Parts Diagram

Engine, Made in Japan

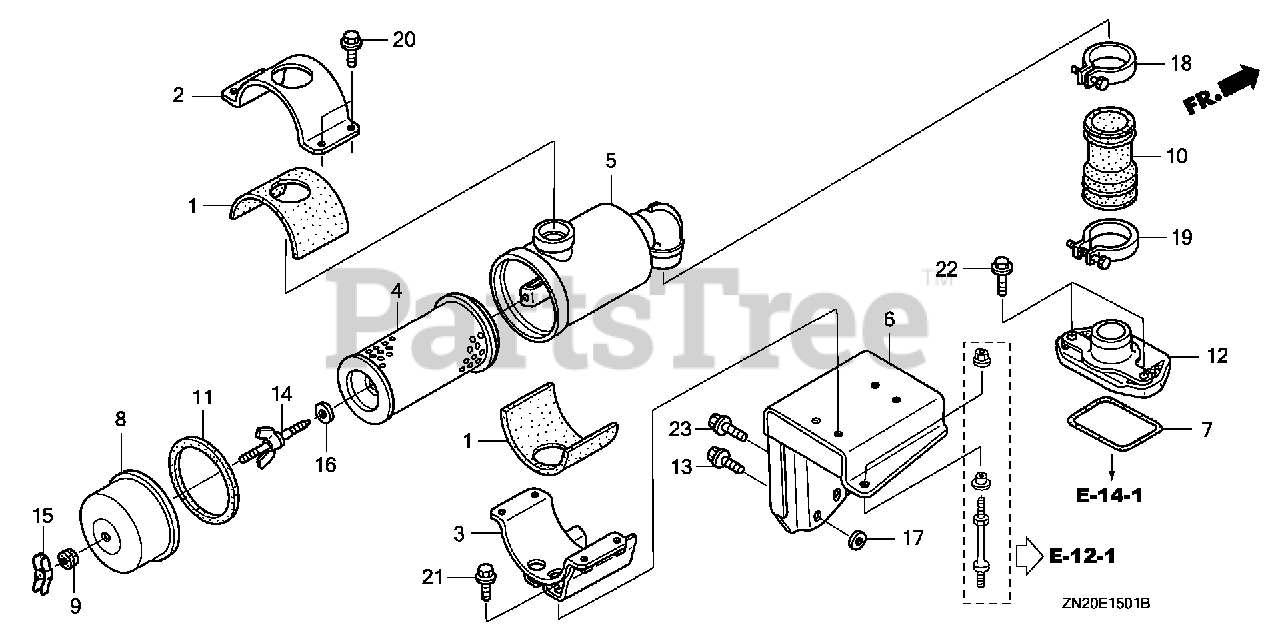

AIR CLEANER (SNORKEL) Parts Diagram

  • Title

1

Honda 17207-ZJ1-840

RUBBER, AIR CLEANER HOLDER (UPPER)

$19.99

$

Usually ships in 3-6 days

0

2

Honda 17208-ZJ1-840

HOLDER, AIR CLEANER (UPPER)

$41.99

$

Usually ships in 3-6 days

0

3

Honda 17209-ZJ1-840

HOLDER, AIR CLEANER (LOWER)

$91.99

$

Usually ships in 3-6 days

0

4

Honda 17210-759-013

ELEMENT, AIR CLEANER

$56.99

$

In Stock, only 1 left!

0

5

Honda 17220-ZN2-810

HOUSING, AIR CLEANER

$113.99

$

Usually ships in 3-6 days

0

6

Honda 17222-ZN2-000

STAY, AIR CLEANER

$79.99

$

Usually ships in 3-6 days

0

7

Honda 17229-ZN1-000

SEAL, AIR CLEANER HOUSING

$9.49

$

In Stock, only 2 left!

0

8

Honda 17230-759-003

COVER, AIR CLEANER

$70.99

$

Usually ships in 3-6 days

0

9

Honda 17232-891-000

GROMMET, AIR CLEANER

$6.49

$

In Stock, only 4 left!

0

10

Honda 17251-ZN2-000

TUBE, AIR CLEANER CONNECTING

$28.99

$

Usually ships in 3-6 days

0

11

Honda 17253-759-003

SEAL, AIR CLEANER

$20.99

$

Usually ships in 3-6 days

0

12

Honda 17418-ZN1-000

JOINT B, CONNECTING TUBE

$16.99

$

Usually ships in 3-6 days

0

13

Honda 90017-ZN2-U00

BOLT, FLANGE (6X18) (CT200)

$2.99

$

Usually ships in 3-6 days

0

14

Honda 90113-759-003

BOLT, AIR CLEANER

$15.99

$

Usually ships in 3-6 days

0

15

Honda 90203-ZA0-800

WINGNUT (6MM) (BLACK)

$4.99

$

In Stock, Qty 7

0

16

Honda 90502-759-003

WASHER, AIR CLEANER

$8.49

$

Usually ships in 3-6 days

0

17

Honda 91552-763-A00

COLLAR, SEAT

$3.99

$

Usually ships in 3-6 days

0

18

Honda 95018-52250

SEE PART DETAILS - PRI; BAND, AIR CLEANER CONNECTING TUBE (52)

$7.99

$

Usually ships in 3-6 days

0

19

Honda 95018-58250

BAND, AIR CLEANER CONNECTING TUBE (58)

$8.99

$

Usually ships in 3-6 days

0

20

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 20+

0

21

Honda 95701-06016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X16)

$2.49

$

In Stock, Qty 20+

0

22

Honda 95701-06028-00

BOLT, FLANGE (6X28)

$2.99

$

In Stock, only 2 left!

0

23

Honda 95701-08016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16)

$2.99

$

In Stock, Qty 20+

0
