GXV670 TAF2 (GJAH) - Honda Engine, Made in Japan (SN: GJAH-1000001 - GJAH-1019999) AIR CLEANER (TAF2) Parts Diagram

Engine, Made in Japan

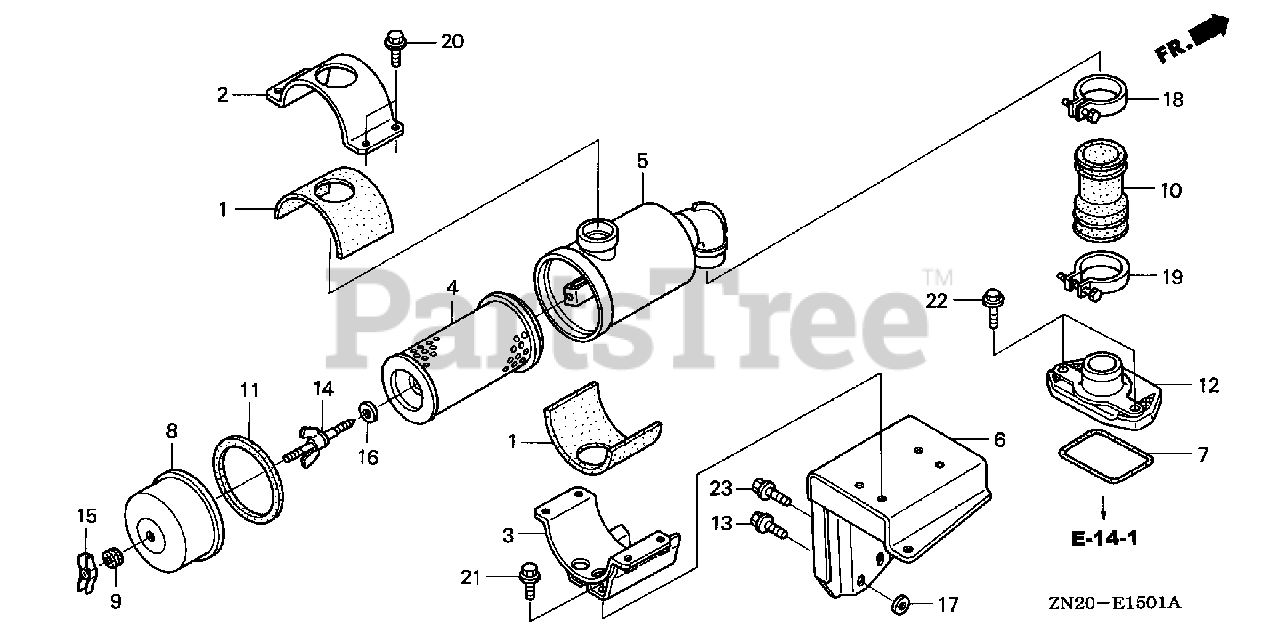

AIR CLEANER (TAF2) Parts Diagram

  • Title

1

Honda 17207-ZJ1-840

RUBBER, AIR CLEANER HOLDER (UPPER)

Note: (Honda Code 6623995).

$19.99

$

Usually ships in 3-6 days

0

2

Honda 17208-ZJ1-840

HOLDER, AIR CLEANER (UPPER)

Note: (Honda Code 6624001).

$41.99

$

Usually ships in 3-6 days

0

3

Honda 17209-ZJ1-840

HOLDER, AIR CLEANER (LOWER)

Note: (Honda Code 6624019).

$91.99

$

Usually ships in 3-6 days

0

4

Honda 17210-759-013

ELEMENT, AIR CLEANER

Note: (Honda Code 3797636).

$56.99

$

In Stock, only 1 left!

0

5

Honda 17220-ZN2-810

HOUSING, AIR CLEANER

Note: (Honda Code 7058571).

$113.99

$

Usually ships in 3-6 days

0

6

Honda 17222-ZN2-000

STAY, AIR CLEANER

Note: (Honda Code 7058589).

$79.99

$

Usually ships in 3-6 days

0

7

Honda 17229-ZN1-000

SEAL, AIR CLEANER HOUSING

Note: (Honda Code 6248033).

$9.49

$

In Stock, only 2 left!

0

8

Honda 17230-759-003

COVER, AIR CLEANER

Note: (Honda Code 3784253).

$70.99

$

Usually ships in 3-6 days

0

9

Honda 17232-891-000

GROMMET, AIR CLEANER

Note: (Honda Code 0999763).

$6.49

$

In Stock, Qty 18

0

10

Honda 17251-ZN2-000

TUBE, AIR CLEANER CONNECTING

Note: (Honda Code 7058597).

$28.99

$

Usually ships in 3-6 days

0

11

Honda 17253-759-003

SEAL, AIR CLEANER

Note: (Honda Code 3784287).

$20.99

$

Usually ships in 3-6 days

0

12

Honda 17418-ZN1-000

JOINT B, CONNECTING TUBE

Note: (Honda Code 7058613).

$16.99

$

Usually ships in 3-6 days

0

13

Honda 90014-952-000

BOLT, FLANGE (6X14)

Note: (Honda Code 0803619).

$3.49

$

In Stock, Qty 17

0

14

Honda 90113-759-003

BOLT, AIR CLEANER

Note: (Honda Code 3790870).

$15.99

$

Usually ships in 3-6 days

0

15

Honda 90203-ZA0-800

WINGNUT (6MM)

Note: (Honda Code 1742238).

$4.99

$

In Stock, Qty 5

0

16

Honda 90502-759-003

WASHER, AIR CLEANER

Note: (Honda Code 3792066).

$8.49

$

Usually ships in 3-6 days

0

17

Honda 91552-763-A00

COLLAR, SEAT

Note: (Honda Code 3177326).

$3.99

$

Usually ships in 3-6 days

0

18

Honda 95018-50250

BAND, AIR CLEANER CONNECTING TUBE (50)

Note: (Honda Code 5754403).

$11.99

$

Usually ships in 3-6 days

0

19

Honda 95018-58250

BAND, AIR CLEANER CONNECTING TUBE (58)

Note: (Honda Code 5722160).

$8.99

$

Usually ships in 3-6 days

0

20

Honda 95701-06012-00

BOLT, FLANGE (6X12)

Note: (Honda Code 2105799).

$2.49

$

In Stock, Qty 20+

0

21

Honda 95701-06016-00

BOLT, FLANGE (6X16)

Note: (Honda Code 2410892).

$2.49

$

In Stock, Qty 20+

0

22

Honda 95701-06028-00

BOLT, FLANGE (6X28)

Note: (Honda Code 2105849).

$2.99

$

In Stock, only 2 left!

0

23

Honda 95701-08016-00

BOLT, FLANGE (8X16)

Note: (Honda Code 2298396).

$2.99

$

In Stock, only 3 left!

0
