GXV670 TAF2 (GJAH) - Honda Engine, Made in Japan (SN: GJAH-1000001 - GJAH-1019999) FUEL PUMP (TAF2) Parts Diagram

Engine, Made in Japan

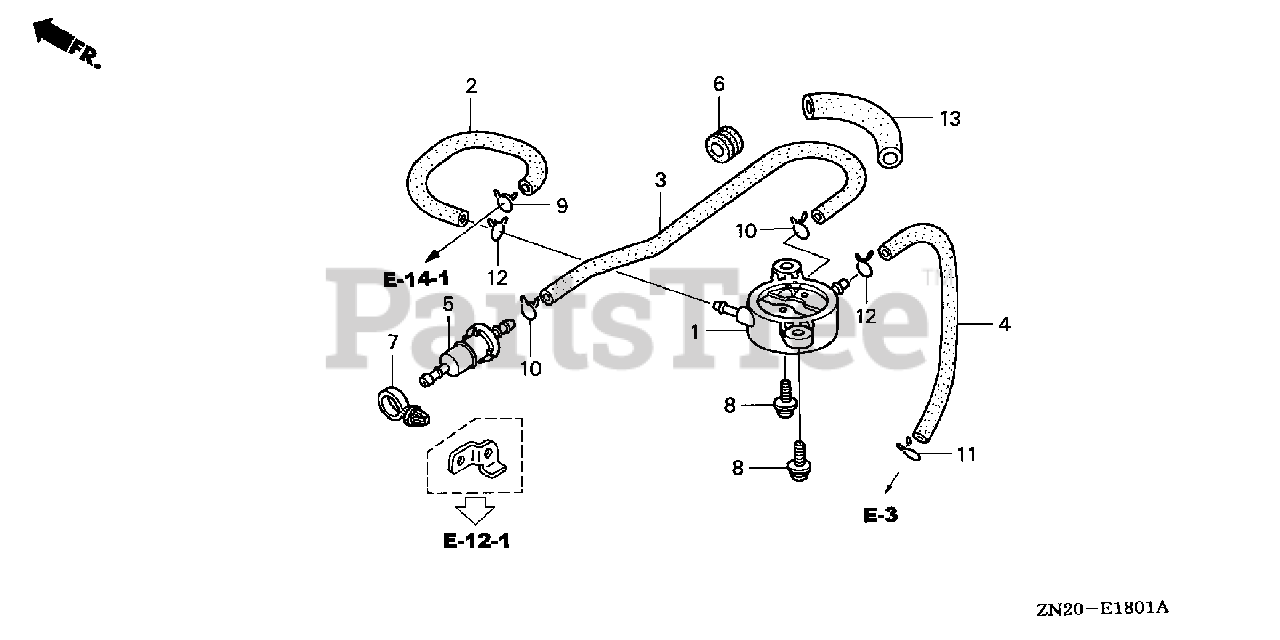

FUEL PUMP (TAF2) Parts Diagram

  • Title

1

Honda 16700-ZL8-003

PUMP ASSY., FUEL
(Superseded to 16700-Z0J-003)

Note: (Honda Code 5611298).

$92.99

$

Usually ships in 3-6 days

0

2

Honda 16851-ZN2-000

TUBE, FUEL

Note: (Honda Code 6260525).

$

$

Not available

3

Honda 16852-ZN2-000

TUBE B, FUEL

Note: (Honda Code 7058530).

$

$

Not available

4

Honda 16882-ZJ1-840

TUBE, DIAPHRAGM

Note: (Honda Code 6224570).

$6.49

$

In Stock, only 1 left!

0

5

Honda 16910-ZE8-015

FILTER, FUEL

Note: (Honda Code 4287553).

$14.99

$

In Stock, Qty 5

0

6

Honda 19111-MF5-000

GROMMET, RESERVE TANK

Note: (Honda Code 1400134).

$3.99

$

Usually ships in 3-6 days

0

7

Honda 90617-SA0-003

CLIP, WIRE HARNESS

Note: (Honda Code 4210464).

$5.99

$

Usually ships in 3-6 days

0

8

Honda 93894-06016-00

SCREW-WASHER (6X16)

Note: (Honda Code 6227201).

$0.99

$

In Stock, only 4 left!

0

9

Honda 95002-02080

CLIP, TUBE (B8)

Note: (Honda Code 0250647).

$2.49

$

In Stock, Qty 20+

0

10

Honda 95002-02100

CLIP, TUBE (B10)

Note: (Honda Code 0250985).

$2.49

$

In Stock, Qty 14

0

11

Honda 95002-50000

CLIP, TUBE (C9)

Note: (Honda Code 0053447).

$1.99

$

In Stock, Qty 8

0

12

Honda 95002-70000

CLIP, TUBE (C11)

Note: (Honda Code 0053595).

$2.49

$

In Stock, Qty 20+

0

13

Honda 95003-36003-10M

BULK HOSE, VINYL (11X13X3000) (11X13X50)

Note: (Honda Code 6388953).

$

$

Currently unavailable
