GXV670 U TAF4 (GJAHK) - Honda Engine, Made in Japan (SN: GJAHK-1000001 - GJAHK-9999999) AIR CLEANER (DUAL) Parts Diagram

Engine, Made in Japan

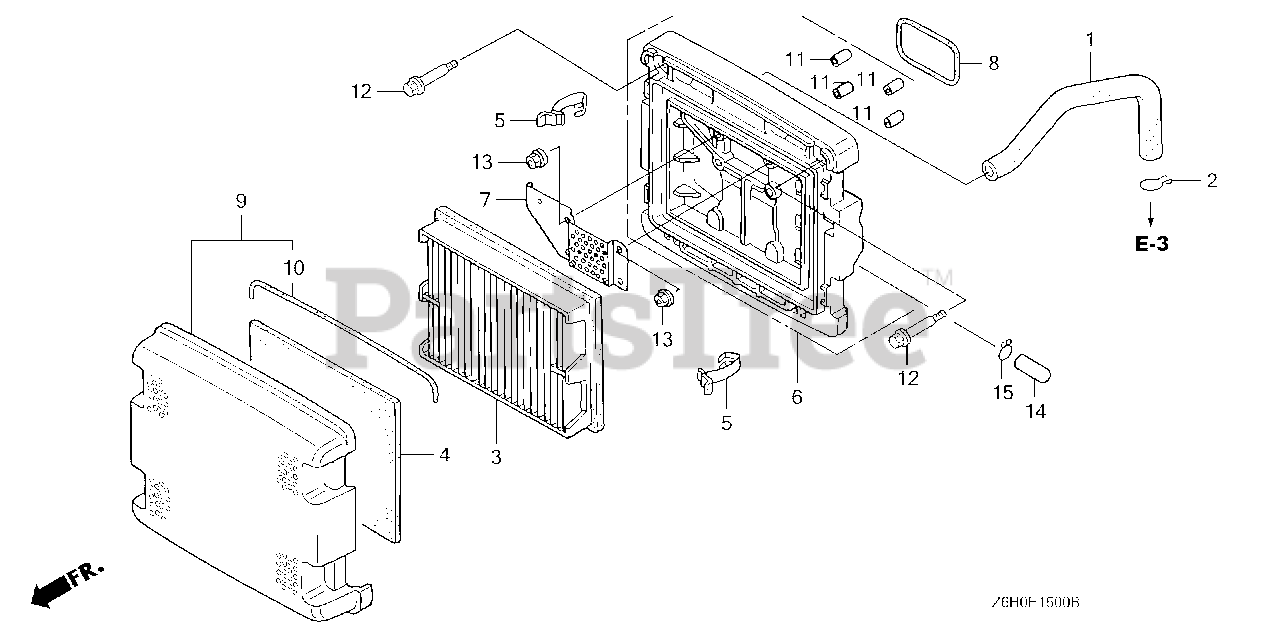

AIR CLEANER (DUAL) Parts Diagram

  • Title

1

Honda 12357-ZJ4-830

TUBE, BREATHER

$11.99

$

In Stock, Qty 11

0

2

Honda 15772-551-000

CLIP, BREATHER TUBE

$2.99

$

In Stock, only 2 left!

0

3

Honda 17210-ZJ1-842

SEE PART DETAILS - PRI; ELEMENT, AIR CLEANER

$62.99

$

In Stock, Qty 6

0

4

Honda 17218-ZJ1-840

FILTER (OUTER)

$7.49

$

In Stock, only 4 left!

0

5

Honda 17219-ZJ1-840

CLIP, AIR CLEANER

$4.99

$

Usually ships in 3-6 days

0

6

Honda 17220-Z6H-000

HOUSING, AIR CLEANER

Note: Use from Engine SN 1002341.

$51.99

$

Usually ships in 3-6 days

0

6

Honda 17220-ZN2-000

HOUSING, AIR CLEANER

Note: Use up to Engine SN 1002340.

$106.99

$

Usually ships in 3-6 days

0

7

Honda 17223-ZN2-000

CAP, AIR CLEANER

$14.99

$

Usually ships in 3-6 days

0

8

Honda 17228-ZN1-000

GASKET, AIR CLEANER

$16.99

$

In Stock, only 2 left!

0

9

Honda 17230-ZJ1-840

SEE PART DETAILS - SUP; COVER ASSY., AIR CLEANER
(Superseded to 17230-ZJ1-841)

Note: Use up to Engine SN 1002746.

$64.99

$

In Stock, only 3 left!

0

9

Honda 17230-ZJ1-841

SEE PART DETAILS - PRI; COVER ASSY., AIR CLEANER

Note: Use from Engine SN 1002747.

$64.99

$

In Stock, only 3 left!

0

10

Honda 17233-ZJ1-840

SEAL, AIR CLEANER COVER

$3.99

$

In Stock, Qty 8

0

11

Honda 17238-ZJ4-830

COLLAR A, AIR CLEANER

$2.99

$

In Stock, only 3 left!

0

12

Honda 90003-ZJ1-840

BOLT, SPECIAL (5MM)

$3.99

$

In Stock, only 2 left!

0

13

Honda 94050-06000

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

14

Honda 90634-ZL8-H00

CAP, SEALING

Note: Use from Engine SN 1002341.

$6.49

$

Usually ships in 3-6 days

0

15

Honda 95002-02100

CLIP, TUBE (B10)

Note: Use from Engine SN 1002341.

$2.99

$

In Stock, Qty 20+

0
