GXV670 U TAF4 (GJAHK) - Honda Engine, Made in Japan (SN: GJAHK-1000001 - GJAHK-9999999) FAN COVER (TAF,TAF4) Parts Diagram

Engine, Made in Japan

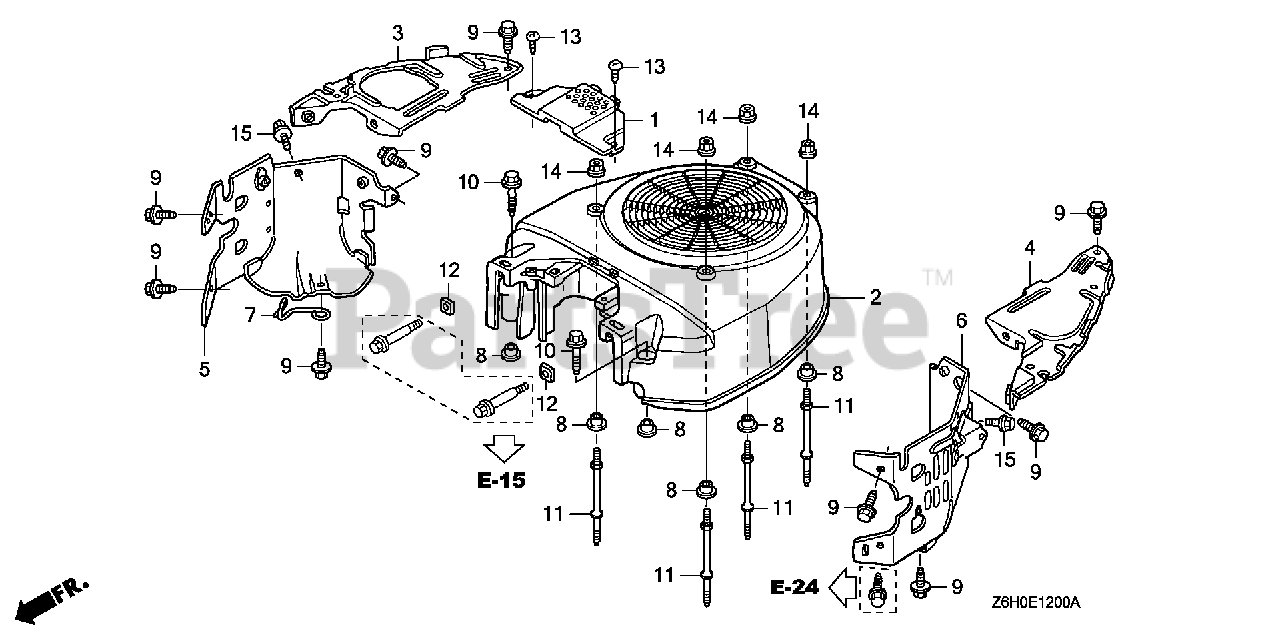

FAN COVER (TAF,TAF4) Parts Diagram

  • Title

1

Honda 16715-ZJ1-840

COVER, FUEL PUMP

$20.99

$

Usually ships in 3-6 days

0

2

Honda 19611-ZJ1-840ZC

COVER, FAN *R280* (POWER RED)

$118.99

$

Usually ships in 3-6 days

0

3

Honda 19612-ZJ1-841

SEE PART DETAILS - PRI; PLATE, SIDE

$20.99

$

Usually ships in 3-6 days

0

4

Honda 19614-ZJ1-841

PLATE, SIDE

$20.99

$

Usually ships in 3-6 days

0

5

Honda 19631-ZJ1-840

SHROUD

$

$

Not available

6

Honda 19632-ZN1-010

SHROUD

$70.99

$

Usually ships in 3-6 days

0

7

Honda 30588-898-000

CLAMP, IGNITION TUBE

$5.99

$

Usually ships in 3-6 days

0

8

Honda 33713-GC2-000

COLLAR B, TAILLIGHT

$4.49

$

In Stock, Qty 17

0

9

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$1.99

$

In Stock, Qty 20+

0

10

Honda 90018-ZE1-000

BOLT, FLANGE (6X23) (CT200)

$1.99

$

In Stock, only 2 left!

0

11

Honda 90042-ZJ1-840

BOLT, STUD (6X71)

$9.49

$

Usually ships in 3-6 days

0

12

Honda 90313-ZJ1-840

NUT, SQUARE (5MM)

$3.49

$

In Stock, only 1 left!

0

13

Honda 93913-25580

SCREW, TAPPING (5X20)

$1.49

$

In Stock, Qty 8

0

14

Honda 94050-06000

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

15

Honda 95701-06008-00

BOLT, FLANGE (6X8)

$3.49

$

In Stock, only 3 left!

0
