GXV800 IRH UAF2 (GJALH) - Honda Engine, Made in China (SN: GJALH-1000001 - GJALH-9999999) THROTTLE BODY Parts Diagram
Engine, Made in China

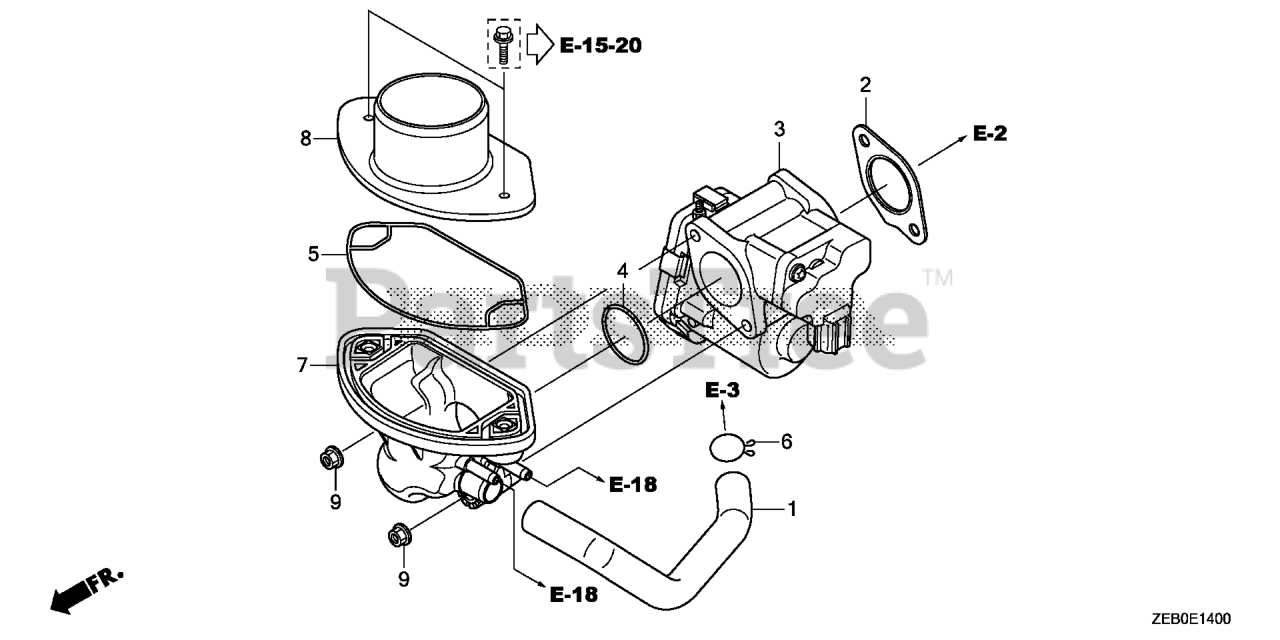

THROTTLE BODY Parts Diagram
Honda 15721-ZDW-000
TUBE, BREATHER
$8.49
$
Usually ships in 3-6 days
Honda 16221-ZDW-003
GASKET, THROTTLE BODY
$3.49
$
Usually ships in 3-6 days
Honda 16400-ZDW-003
BODY ASSY., THROTTLE
$385.99
$
Usually ships in 3-6 days
Honda 17228-ZDW-000
GASKET, AIR CLEANER
$2.49
$
Usually ships in 3-6 days
Honda 17229-Z6L-000
SEAL, AIR CLEANER HOUSING
$5.99
$
In Stock, Qty 11
Honda 17369-KB4-670
CLIP, BREATHER TUBE
$6.99
$
Usually ships in 3-6 days
Honda 17410-ZDW-000
ELBOW, AIR CLEANER
$32.99
$
Usually ships in 3-6 days
Honda 17416-Z6L-000
JOINT, CONNECTING TUBE
$48.99
$
Usually ships in 3-6 days
Honda 94050-06000
SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).
$0.99
$
In Stock, Qty 20+
