GZ 3500 T (966118001) - RedMax Chainsaw (2011-04) CHAIN BRAKE CLUTCH COVER Parts Diagram

Chainsaw

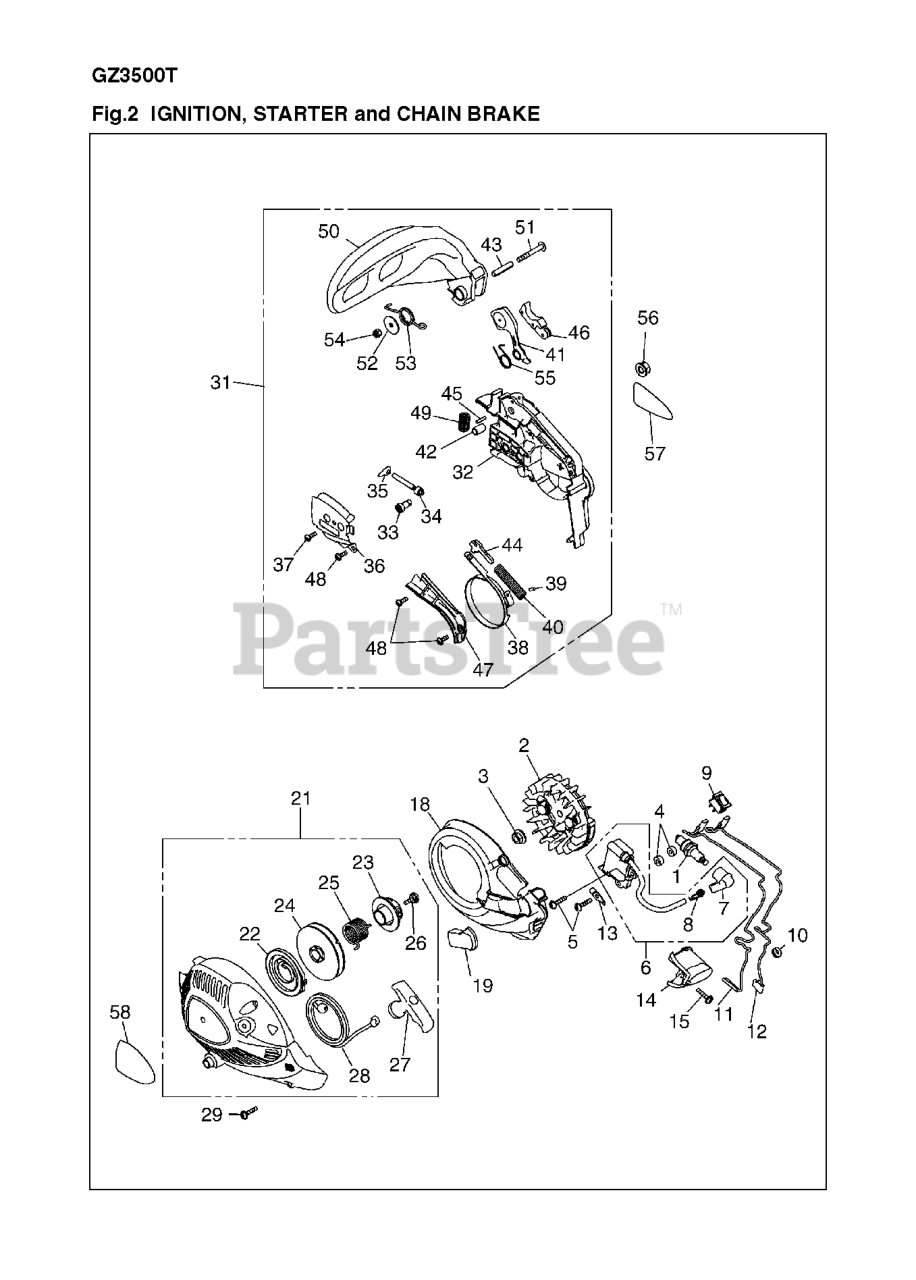

CHAIN BRAKE CLUTCH COVER Parts Diagram

  • Title

1

RedMax 521233501

SPARK PLUG (CMR6H)
(Superseded to 531008615)

$4.99

$

In Stock, Qty 20+

0

2

RedMax 522644101

ROTOR ASSY

$54.99

$

Usually ships in 3-10 days

0

3

RedMax 504118001

NUT
(Superseded to 516437401)

$3.99

$

Usually ships in 3-10 days

0

4

RedMax 521359001

SPACER
(Superseded to 505043401)

$7.49

$

Usually ships in 3-10 days

0

5

RedMax 522638401

BOLT TORX 09

$3.99

$

In Stock, only 3 left!

0

6

RedMax 527673401

COIL COMP
(Superseded to 576857201)

Note: UP TO SN 000403. 7 8

$121.99

$

Usually ships in 3-10 days

0

6

RedMax 576857201

COIL ASSY

Note: FROM SN 000404. 7 8

$121.99

$

Usually ships in 3-10 days

0

7

RedMax 521786401

CAP
(Superseded to 512444001)

$7.49

$

In Stock, Qty 7

0

8

RedMax 504118201

SPRING
(Superseded to 506655201)

$4.99

$

In Stock, only 1 left!

0

9

RedMax 516970401

SWITCH
(Superseded to 586246901)

$10.99

$

In Stock, only 1 left!

0

10

RedMax 522644301

GROMMET

$

$

Not available

11

RedMax 522644501

CORD, SWITCH

$8.99

$

Usually ships in 3-10 days

0

12

RedMax 522644601

CORD, EARTH

$8.99

$

Usually ships in 3-10 days

0

13

RedMax 522644401

TERMINAL

$4.99

$

Usually ships in 3-10 days

0

14

RedMax 576130101

COVER PLUG

$

$

Not available

15

RedMax 521518101

SCREW

$4.99

$

In Stock, Qty 8

0

18

RedMax 527673601

COVER FAN

$8.99

$

Usually ships in 3-10 days

0

19

RedMax 527673801

GUIDE, DF (GZ3500T)

$

$

Not available

21

RedMax 522644801

RECOIL ASSY

Note: . 22 THRU 28

$

$

Not available

22

RedMax 522644901

SPRING ASSY

$24.99

$

In Stock, only 1 left!

0

23

RedMax 522645401

CAM, PLATE
(Superseded to 522645401)

$8.99

$

Usually ships in 3-10 days

0

24

RedMax 522645001

REEL

$7.49

$

In Stock, only 2 left!

0

25

RedMax 522645301

SPRING

$7.49

$

In Stock, only 2 left!

0

26

RedMax 515367101

SCREW

$4.99

$

In Stock, only 1 left!

0

27

RedMax 522645201

KNOB

$9.99

$

Usually ships in 3-10 days

0

28

RedMax 522645101

ROPE

$4.99

$

In Stock, only 1 left!

0

29

RedMax 521518101

SCREW

$4.99

$

In Stock, Qty 8

0

31

RedMax 527671701

BRAKE ASSY
(Superseded to 580906301)

Note: . 32 THRU 55

$218.99

$

Usually ships in 3-10 days

0

32

RedMax 527670901

COVER CHAIN (GZ3500T)
(Superseded to 580906301)

$218.99

$

Usually ships in 3-10 days

0

33

RedMax 513637901

GEAR

$11.99

$

In Stock, only 1 left!

0

34

RedMax 513730701

SCREW
(Superseded to 574007601)

$8.99

$

In Stock, only 1 left!

0

35

RedMax 521562001

NUT

$9.99

$

Usually ships in 3-10 days

0

36

RedMax 522643301

PLATE

$8.99

$

In Stock, only 1 left!

0

37

RedMax 516827201

SCREW
(Superseded to 574005501)

$3.99

$

Usually ships in 3-10 days

0

38

RedMax 521801101

BAND
(Superseded to 512488701)

$31.99

$

Usually ships in 3-10 days

0

39

RedMax 521075401

ROLLER
(Superseded to 574013101)

$3.99

$

Usually ships in 3-10 days

0

40

RedMax 516826601

SPRING
(Superseded to 574079301)

$4.99

$

Usually ships in 3-10 days

0

41

RedMax 527752201

WEIGHT

$10.99

$

Usually ships in 3-10 days

0

42

RedMax 513760301

SPACER
(Superseded to 574008401)

$2.23

$

Usually ships in 3-10 days

0

43

RedMax 513759701

SPACER, INNER
(Superseded to 574008301)

$3.99

$

Usually ships in 3-10 days

0

44

RedMax 516825601

ARM
(Superseded to 574005401)

$4.99

$

Usually ships in 3-10 days

0

45

RedMax 513807301

ROLLER
(Superseded to 516976701)

$4.99

$

Usually ships in 3-10 days

0

46

RedMax 513806601

BRAKE LEVER
(Superseded to 574008701)

$14.99

$

Usually ships in 3-10 days

0

47

RedMax 527671201

COVER BRAKE

$6.49

$

Usually ships in 3-10 days

0

48

RedMax 516827201

SCREW
(Superseded to 574005501)

$3.99

$

Usually ships in 3-10 days

0

49

RedMax 522643201

SPRING

$7.49

$

Usually ships in 3-10 days

0

50

RedMax 527671401

GUARD

$

$

Not available

51

RedMax 513759001

SCREW
(Superseded to 574008201)

$3.99

$

Usually ships in 3-10 days

0

52

RedMax 521025401

WASHER
(Superseded to 574013001)

$3.99

$

Usually ships in 3-10 days

0

53

RedMax 513758801

RETURN SPRING
(Superseded to 574008101)

$4.99

$

Usually ships in 3-10 days

0

54

RedMax 514183901

NUT

$4.99

$

In Stock, only 1 left!

0

55

RedMax 516988401

SPRING
(Superseded to 574080301)

$4.99

$

Usually ships in 3-10 days

0

56

RedMax 521059701

NUT
(Superseded to 575960801)

$4.99

$

Usually ships in 3-10 days

0

57

RedMax 527683201

LABEL

$

$

Not available

58

RedMax 527683301

LABEL

$

$

Not available
