GZ 3500 T - RedMax Chainsaw (2017-10) IGNITION SYSTEM Parts Diagram

Chainsaw

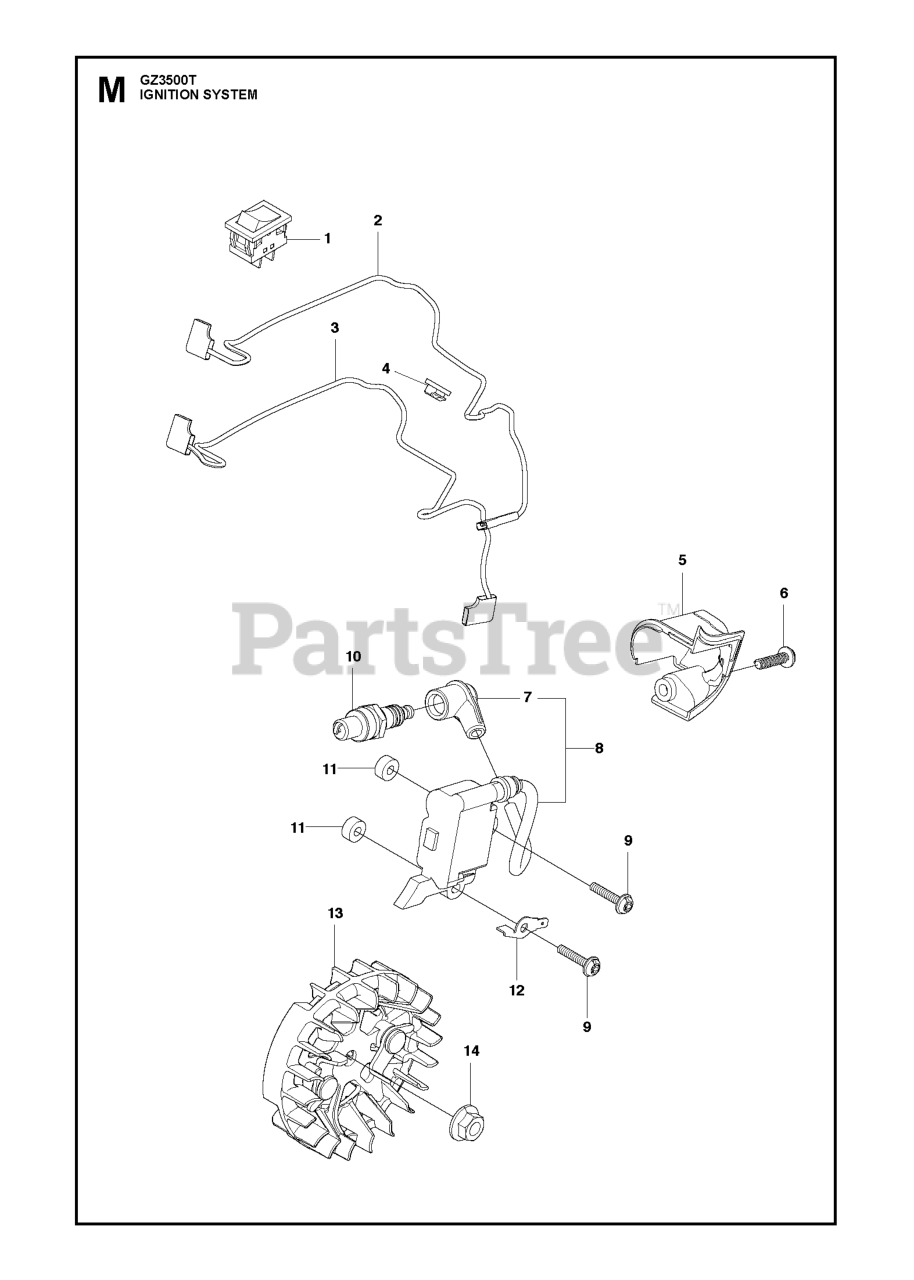

IGNITION SYSTEM Parts Diagram

  • Title

1

RedMax 586246801

STOP SWITCH NM_09091801

$20.99

$

In Stock, Qty 9

0

2

RedMax 522644501

CORD, SWITCH

$8.99

$

In Stock, only 1 left!

0

3

RedMax 522644601

CORD, EARTH

$8.99

$

In Stock, only 2 left!

0

4

RedMax 522644301

GROMMET

$0.99

$

Usually ships in 3-10 days

0

5

RedMax 585517901

COVER SPARK PLUG BLACK

$6.99

$

Usually ships in 3-10 days

0

6

RedMax 521518101

SCREW

$4.99

$

In Stock, only 3 left!

0

7

RedMax 523082801

CAP

$34.99

$

Usually ships in 3-10 days

0

8

RedMax 584403701

IGNITION COIL ASSY

$93.99

$

In Stock, only 2 left!

0

9

RedMax 585702901

BOLT M4X20

$4.99

$

In Stock, only 3 left!

0

10

RedMax 514543001

SPARK PLUG

$

$

Not available

11

RedMax 505043401

SPACER

$7.49

$

Usually ships in 3-10 days

0

12

RedMax 522644401

TERMINAL

$4.99

$

Usually ships in 3-10 days

0

13

RedMax 581972001

FLYWHEEL ASSY

$87.99

$

Usually ships in 3-10 days

0

14

RedMax 504118001

NUT
(Superseded to 516437401)

$3.99

$

Usually ships in 3-10 days

0
