GZ 3500 T - RedMax Chainsaw (SN: 800001 & Above) (2012-08) CARBURETOR DETAILS Parts Diagram

Chainsaw

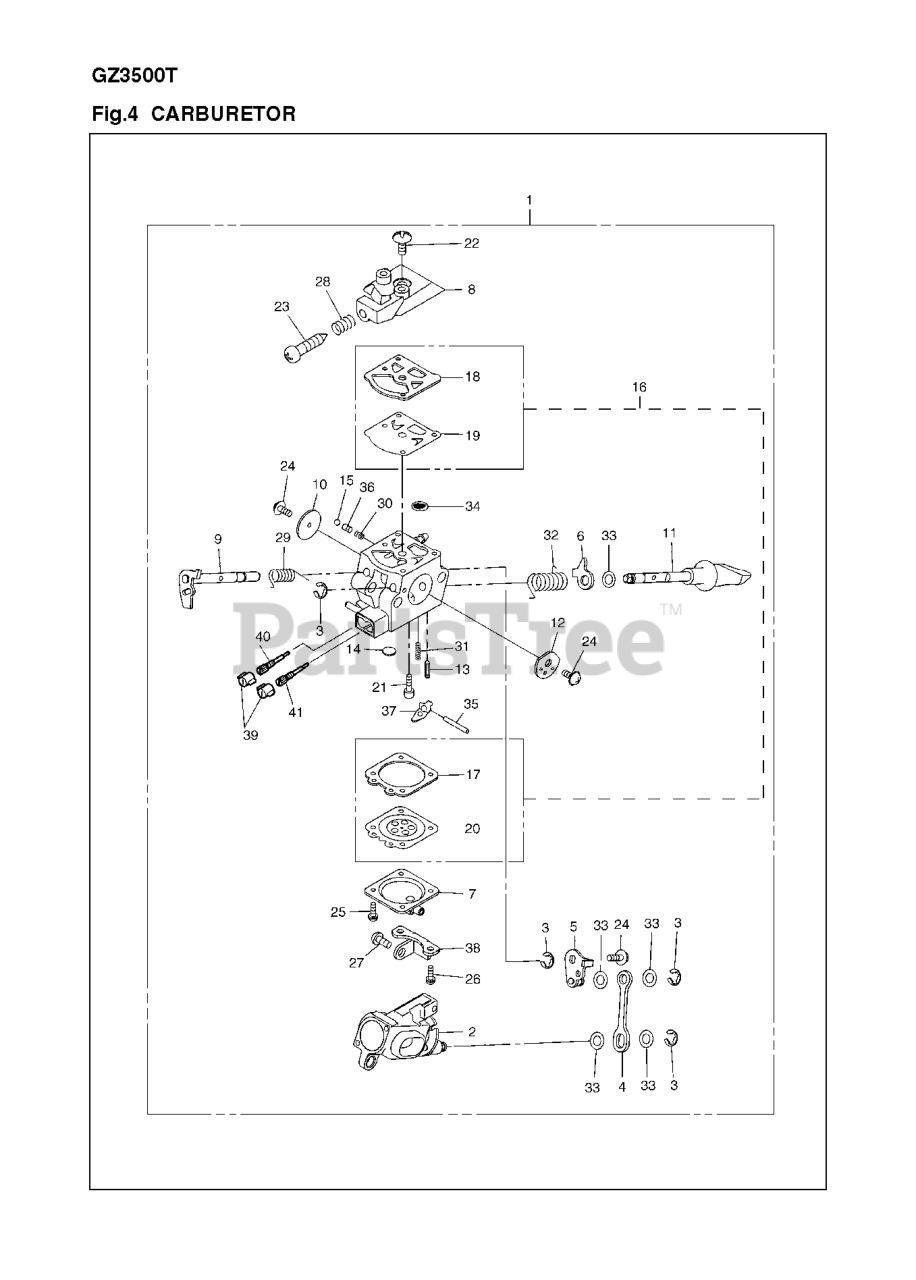

CARBURETOR DETAILS Parts Diagram

  • Title

1

RedMax 522645801

CARBURETOR ASSY
(Superseded to 580906001)

$205.99

$

Usually ships in 3-10 days

0

2

RedMax 522646301

BODY ASSY AIR V

$96.99

$

Usually ships in 3-10 days

0

3

RedMax 505056501

E-RING

$4.99

$

Usually ships in 3-10 days

0

4

RedMax 522646401

ROD, LINK

$22.99

$

Usually ships in 3-10 days

0

5

RedMax 522645901

LINK ASSY THROT

$7.99

$

Usually ships in 3-10 days

0

6

RedMax 521581101

LEVER

$26.99

$

Usually ships in 3-10 days

0

7

RedMax 522646001

COVER

$20.99

$

Usually ships in 3-10 days

0

8

RedMax 521575601

COVER

$28.99

$

In Stock, only 1 left!

0

9

RedMax 522646201

SHAFT ASST THRO

$34.99

$

Usually ships in 3-10 days

0

10

RedMax 520978601

VALVE

$3.49

$

Usually ships in 3-10 days

0

11

RedMax 522645701

SHAFT ASSY CHOKE

$

$

Not available

12

RedMax 516956901

CHOKE VALVE
(Superseded to 574023901)

$13.99

$

Usually ships in 3-10 days

0

13

RedMax 521085401

VALVE INLET
(Superseded to 505055601)

$27.99

$

Usually ships in 3-10 days

0

14

RedMax 514252101

PLUG

$

$

Not available

15

RedMax 516936001

BALL
(Superseded to 574023801)

$3.49

$

Usually ships in 3-10 days

0

16

RedMax 527661601

GASKET, KIT

$66.99

$

Usually ships in 3-10 days

0

17

RedMax 516972101

GASKET
(Superseded to 574024001)

$6.49

$

Usually ships in 3-10 days

0

18

RedMax 520954801

GASKET
(Superseded to 505055401)

$13.99

$

Usually ships in 3-10 days

0

19

RedMax 520954901

DIAPHRAGM

$9.49

$

Usually ships in 3-10 days

0

20

RedMax 505306801

DIAPHRAGM

$14.99

$

In Stock, only 1 left!

0

21

RedMax 520977301

SCREW

$3.49

$

Usually ships in 3-10 days

0

22

RedMax 520976301

SCREW

$3.49

$

Usually ships in 3-10 days

0

23

RedMax 516778301

SCREW

$7.99

$

Usually ships in 3-10 days

0

24

RedMax 520759801

SCREW
(Superseded to 574024201)

$3.99

$

Usually ships in 3-10 days

0

25

RedMax 520978801

SCREW ASSY

$3.49

$

Usually ships in 3-10 days

0

26

RedMax 522645601

SCREW ASSY

$3.49

$

Usually ships in 3-10 days

0

27

RedMax 522646101

SCREW

$0.99

$

Usually ships in 3-10 days

0

28

RedMax 521066301

SPRING

$4.99

$

Usually ships in 3-10 days

0

29

RedMax 516843901

SPRING RETURN
(Superseded to 574023701)

$4.99

$

Usually ships in 3-10 days

0

30

RedMax 505057901

SPRING
(Superseded to 516927301)

$4.99

$

Usually ships in 3-10 days

0

31

RedMax 516980001

SPRING
(Superseded to 574024101)

$

$

Not available

32

RedMax 521580101

SPRING

$6.99

$

Usually ships in 3-10 days

0

33

RedMax 516524201

WASHER

$3.49

$

In Stock, only 2 left!

0

34

RedMax 520957001

SCREEN
(Superseded to 574012501)

$4.99

$

Usually ships in 3-10 days

0

35

RedMax 520977401

PIN

$5.99

$

Usually ships in 3-10 days

0

36

RedMax 516935901

PISTON
(Superseded to 574023701)

$4.99

$

Usually ships in 3-10 days

0

37

RedMax 520977201

LEVER

$7.49

$

Usually ships in 3-10 days

0

38

RedMax 522646701

BRACKET

$

$

Not available

39

RedMax 521116901

CAP
(Superseded to 574013501)

$7.49

$

Usually ships in 3-10 days

0

40

RedMax 521585401

NEEDLE

$34.99

$

Usually ships in 3-10 days

0

41

RedMax 516935801

NEEDLE

$26.99

$

Usually ships in 3-10 days

0
