GZ 3500 T - RedMax Chainsaw (SN: 800001 & Above) (2012-08) HANDLE Parts Diagram

Chainsaw

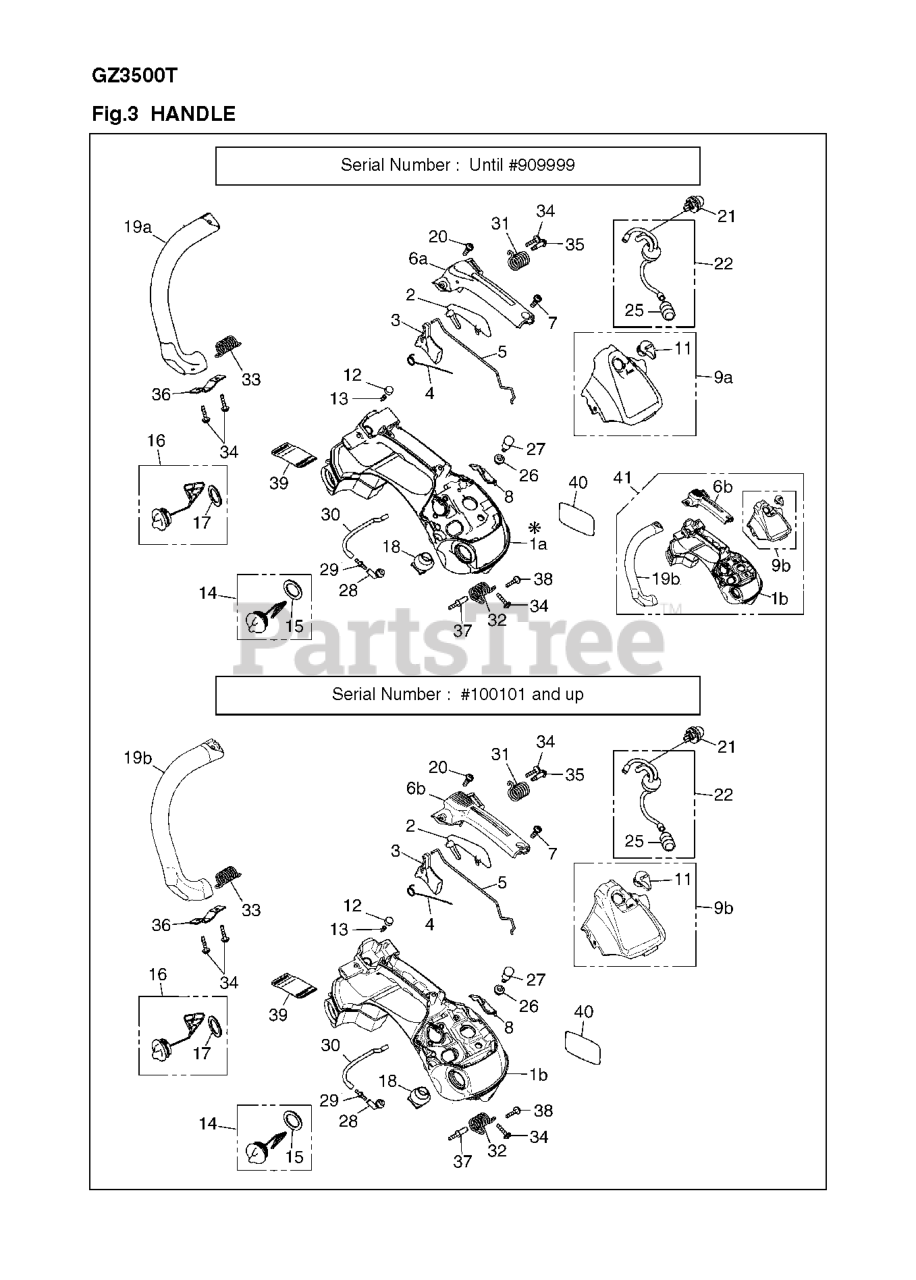

HANDLE Parts Diagram

  • Title

1

RedMax 527669801

%HANDLE, COMP
(Superseded to 577364401)

$

$

Not available

1

RedMax 575994201

HANDLE, COMP

$54.99

$

Usually ships in 3-10 days

0

2

RedMax 521556501

ARM (RPLS 335633350-335633352)

$

$

Not available

3

RedMax 522641801

LEVER, TH

$4.99

$

Usually ships in 3-10 days

0

4

RedMax 505048001

SPRING

$6.49

$

Usually ships in 3-10 days

0

5

RedMax 522646601

ROD, TH

$10.99

$

Usually ships in 3-10 days

0

6

RedMax 522641901

RP_COVER, GRIP

$

$

Not available

6

RedMax 576286301

COVER, GRIP

$7.49

$

Usually ships in 3-10 days

0

7

RedMax 521518101

SCREW

$4.99

$

In Stock, Qty 8

0

8

RedMax 522647501

BRACKET, KNOB

$

$

Not available

9

RedMax 522646801

COVER COMP
(Superseded to 577364401)

$

$

Not available

9

RedMax 576010701

COVER, COMP

$10.99

$

Usually ships in 3-10 days

0

11

RedMax 527675401

KNOB

$4.99

$

Usually ships in 3-10 days

0

12

RedMax 516948101

BREATHER SEAL
(Superseded to 514235301)

$4.99

$

In Stock, only 1 left!

0

13

RedMax 516961901

AIR CONTROL BREATHER
(Superseded to 574007801)

$7.49

$

Usually ships in 3-10 days

0

14

RedMax 521551101

CAP ASSY
(Superseded to 579518901)

$9.99

$

In Stock, only 2 left!

0

15

RedMax 505046101

GASKET
(Superseded to 579519001)

$4.99

$

Usually ships in 3-10 days

0

16

RedMax 521554501

CAP ASSY

$4.99

$

Usually ships in 3-10 days

0

17

RedMax 505046101

GASKET
(Superseded to 579519001)

$4.99

$

Usually ships in 3-10 days

0

18

RedMax 522647101

PIPE, AIR

$6.49

$

Usually ships in 3-10 days

0

19

RedMax 522641601

RP_L, HANDLE

$

$

Not available

19

RedMax 576286201

FRONT HANDLE

$15.99

$

Usually ships in 3-10 days

0

20

RedMax 521518101

SCREW

$4.99

$

In Stock, Qty 8

0

21

RedMax 513789301

PRIMARY BTN

$31.99

$

In Stock, Qty 5

0

22

RedMax 522647601

PIPE ASSY
(Superseded to 579519201)

$33.99

$

Usually ships in 3-10 days

0

25

RedMax 575960701

FILTER

$10.99

$

Usually ships in 3-10 days

0

26

RedMax 522647701

PIPE ASSY
(Superseded to 579519201)

$33.99

$

Usually ships in 3-10 days

0

27

RedMax 513751501

BREATHER
(Superseded to 574007901)

$13.99

$

In Stock, only 1 left!

0

28

RedMax 522647801

PIPE

$7.49

$

Usually ships in 3-10 days

0

29

RedMax 516950301

JOINT

$6.49

$

In Stock, only 1 left!

0

30

RedMax 522639401

PIPE
(Superseded to 595526906)

$3.99

$

In Stock, only 1 left!

0

31

RedMax 522642201

SPRING, FRONT

$10.99

$

Usually ships in 3-10 days

0

32

RedMax 522642401

SPRING, PTO

$10.99

$

In Stock, only 1 left!

0

33

RedMax 522642301

DAMPER, MAG

$9.99

$

In Stock, Qty 12

0

34

RedMax 521518101

SCREW

$4.99

$

In Stock, Qty 8

0

35

RedMax 522638601

SCREW

$3.99

$

Usually ships in 3-10 days

0

36

RedMax 521557201

BAND

$6.49

$

Usually ships in 3-10 days

0

37

RedMax 513727801

BOLT
(Superseded to 574007501)

$4.99

$

Usually ships in 3-10 days

0

38

RedMax 521518001

SCREW (RPLS 267132210)

$4.99

$

Usually ships in 3-10 days

0

39

RedMax 527683601

LABEL

$3.99

$

Usually ships in 3-10 days

0

40

RedMax 523071401

LABEL

$7.49

$

Usually ships in 3-10 days

0

41

RedMax 577364401

HANDLE SET

$

$

Not available

1

RedMax 575994201

HANDLE, COMP

$54.99

$

Usually ships in 3-10 days

0

6

RedMax 576286301

COVER, GRIP

$7.49

$

Usually ships in 3-10 days

0

9

RedMax 576010701

COVER, COMP

$10.99

$

Usually ships in 3-10 days

0

19

RedMax 576286201

FRONT HANDLE

$15.99

$

Usually ships in 3-10 days

0
