GZ 360 - RedMax Chainsaw (2017-10) FUEL TANK Parts Diagram

Chainsaw

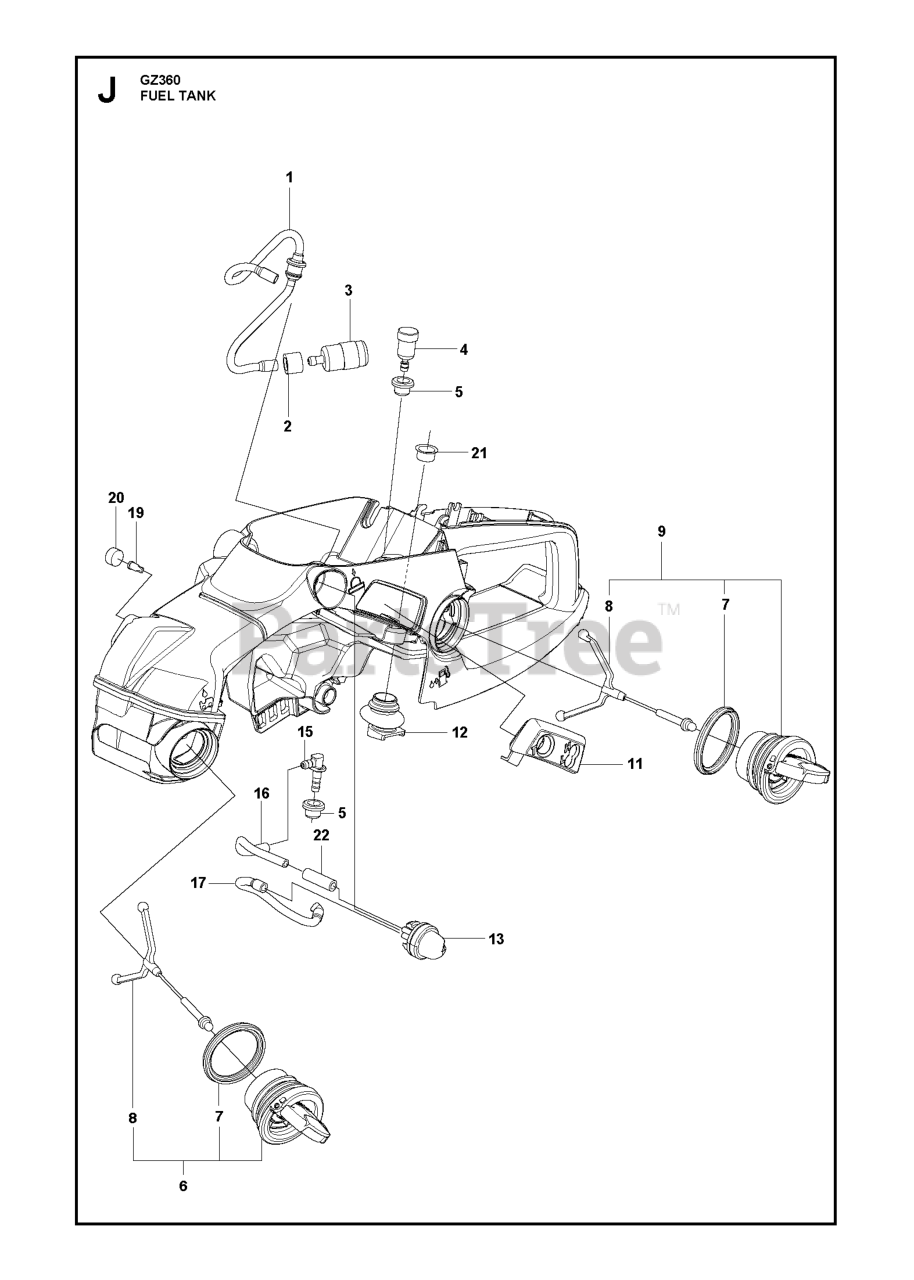

FUEL TANK Parts Diagram

  • Title

1

RedMax 579312401

FUEL HOSE ASSY 439
(Superseded to 579312402)

$7.99

$

Usually ships in 3-10 days

0

2

RedMax 513750801

COLLAR

$5.99

$

Usually ships in 3-10 days

0

3

RedMax 575960701

FILTER

$10.99

$

In Stock, only 2 left!

0

4

RedMax 513751501

BREATHER
(Superseded to 574007901)

$13.99

$

In Stock, only 3 left!

0

5

RedMax 514201401

GROMMET
(Superseded to 574012901)

$

$

Not available

6

RedMax 577878603

TANK CAP ASSY

$15.99

$

In Stock, only 2 left!

0

7

RedMax 589241301

GASKET TANK CAP

$5.99

$

Usually ships in 3-10 days

0

8

RedMax 503578901

TANK LOCK

$5.99

$

In Stock, Qty 10

0

9

RedMax 577878604

TANK CAP ASSY BLACK, NEW GASK

$6.99

$

Usually ships in 3-10 days

0

11

RedMax 579309201

GROMMET CARB 439

$5.99

$

Usually ships in 3-10 days

0

12

RedMax 522647101

PIPE, AIR

$5.99

$

Usually ships in 3-10 days

0

13

RedMax 513789301

PRIMARY BTN

$13.99

$

In Stock, only 2 left!

0

15

RedMax 521055401

ELBOW
(Superseded to 505048501)

$3.49

$

In Stock, only 1 left!

0

16

RedMax 581798301

FUEL HOSE L90

$

$

Not available

17

RedMax 510920601

PIPE 8488G11150

$5.99

$

Usually ships in 3-10 days

0

19

RedMax 516961901

AIR CONTROL BREATHER
(Superseded to 574007801)

$3.49

$

In Stock, only 3 left!

0

20

RedMax 516948101

BREATHER SEAL
(Superseded to 514235301)

$3.49

$

In Stock, only 1 left!

0

21

RedMax 581736101

GUIDE

$

$

Not available

22

RedMax 585141601

TUBE

$

$

Not available
