GZ 360 - RedMax Chainsaw (2017-10) HANDLE Parts Diagram

Chainsaw

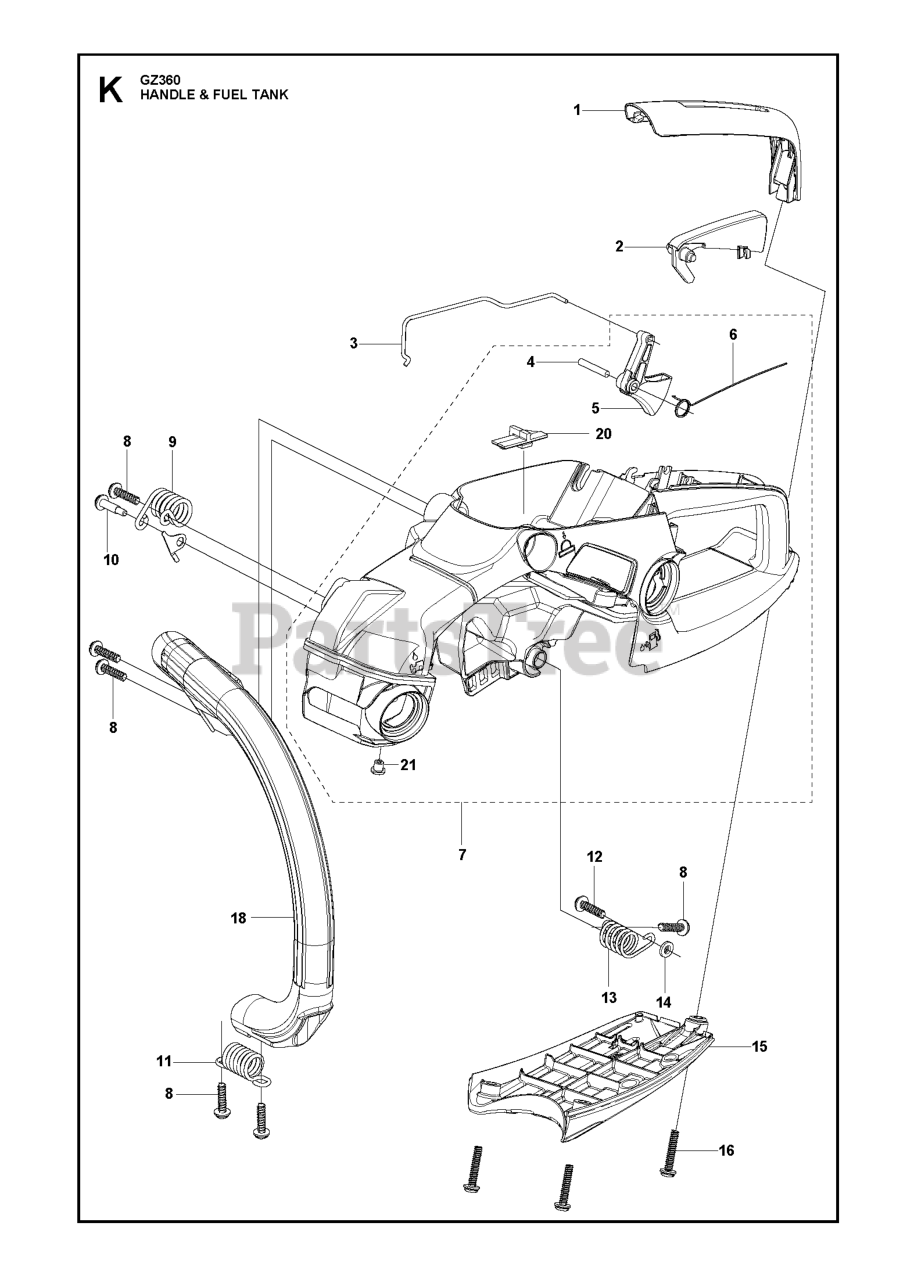

HANDLE Parts Diagram

  • Title

1

RedMax 579311602

COVER GRIP GZ3500L

$4.99

$

Usually ships in 3-10 days

0

2

RedMax 579711501

THROTTLE LOCKOUT ZENOAH BLACK

$3.99

$

Usually ships in 3-10 days

0

3

RedMax 579311501

THROTTLE ROD 436/GZ3500L

$

$

Not available

4

RedMax 521522401

PIN 8488B42400

$4.99

$

Usually ships in 3-10 days

0

5

RedMax 579311401

THROTTLE LEVER

$3.99

$

Usually ships in 3-10 days

0

6

RedMax 521078901

SPRING
(Superseded to 505048001)

$6.49

$

Usually ships in 3-10 days

0

7

RedMax 579314303

HANDLE ASSY GZ360EZ

$78.99

$

Usually ships in 3-10 days

0

8

RedMax 521518101

SCREW

$4.99

$

In Stock, Qty 8

0

9

RedMax 579312801

SPRING FRONT 439

$

$

Not available

10

RedMax 581945101

SCREW

$

$

Not available

11

RedMax 583832901

SPRING FLYWHEEL SIDE

$15.99

$

Usually ships in 3-10 days

0

12

RedMax 521518001

SCREW (RPLS 267132210)

$4.99

$

Usually ships in 3-10 days

0

13

RedMax 522642401

SPRING, PTO

$10.99

$

Usually ships in 3-10 days

0

14

RedMax 513192301

SPACER Z114283110

$

$

Not available

15

RedMax 579311702

COVER HANDLE BLACK

$6.49

$

Usually ships in 3-10 days

0

16

RedMax 512848101

SCREW

$3.99

$

In Stock, Qty 20+

0

18

RedMax 579312202

FRONT HANDLE GZ3500L

$14.99

$

Usually ships in 3-10 days

0

20

RedMax 584893701

GROMMET R HANDLE

$

$

Not available

21

RedMax 513737401

GROMMET

$

$

Not available
