GZ 360 - RedMax Chainsaw (2017-10) IGNITION SYSTEM Parts Diagram

Chainsaw

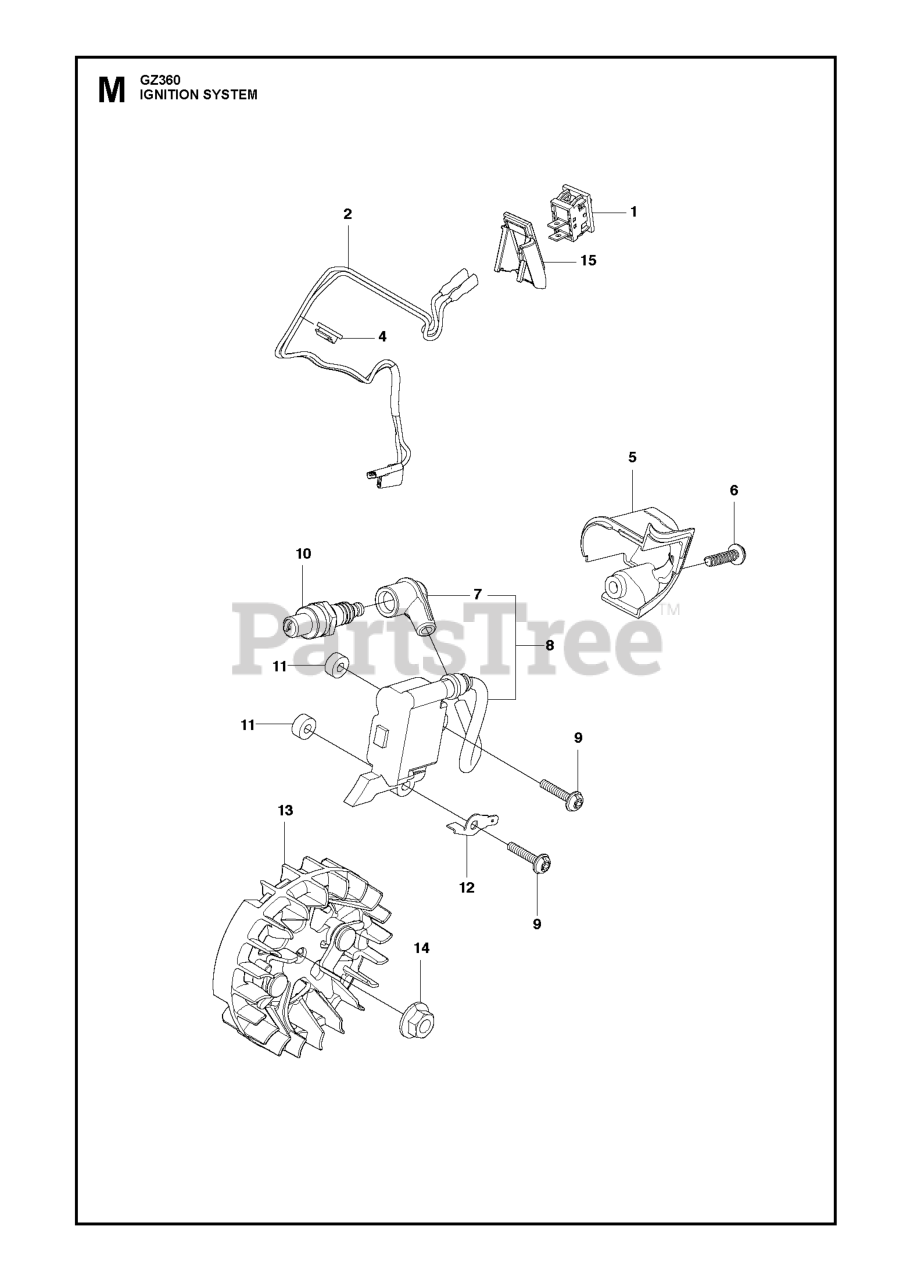

IGNITION SYSTEM Parts Diagram

  • Title

1

RedMax 586246901

SWITCH

$13.99

$

In Stock, only 2 left!

0

2

RedMax 585142901

WIRING ASSY

$11.99

$

Usually ships in 3-10 days

0

4

RedMax 522644301

GROMMET

$0.99

$

Usually ships in 3-10 days

0

5

RedMax 585517901

COVER SPARK PLUG BLACK

$6.99

$

Usually ships in 3-10 days

0

6

RedMax 521518101

SCREW

$3.49

$

Usually ships in 3-10 days

0

7

RedMax 523082801

CAP

$22.99

$

Usually ships in 3-10 days

0

8

RedMax 584403701

IGNITION COIL ASSY

$79.99

$

In Stock, only 1 left!

0

9

RedMax 585702901

BOLT M4X20

$3.49

$

In Stock, only 3 left!

0

10

RedMax 514543001

SPARK PLUG
(Superseded to 531008615)

$5.99

$

In Stock, Qty 20+

0

11

RedMax 505043401

SPACER

$3.49

$

Usually ships in 3-10 days

0

12

RedMax 522644401

TERMINAL

$3.49

$

Usually ships in 3-10 days

0

13

RedMax 581972001

FLYWHEEL ASSY

$62.99

$

Usually ships in 3-10 days

0

14

RedMax 504118001

NUT
(Superseded to 516437401)

$3.49

$

Usually ships in 3-10 days

0

15

RedMax 579321401

BRACKET SWITCH GZ3500L

$3.49

$

Usually ships in 3-10 days

0
