GZ 380 (966426001) - RedMax Chainsaw (2012-03) CHASSIS / FRAME Parts Diagram

Chainsaw

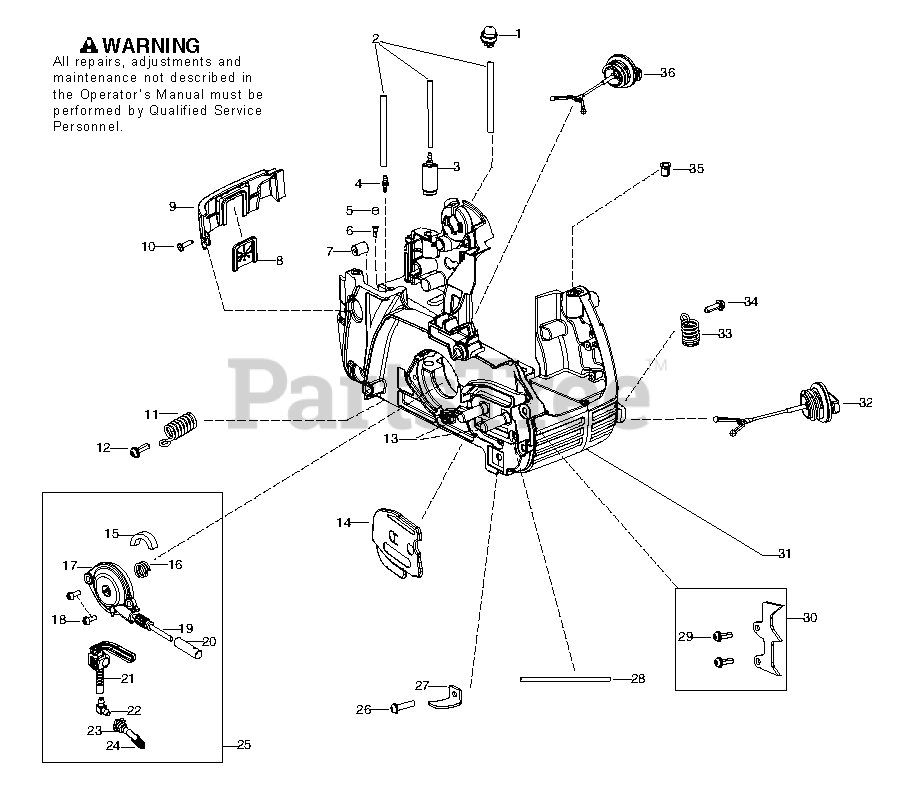

CHASSIS / FRAME Parts Diagram

  • Title

1

RedMax 530047721

AIR PURGE

$6.49

$

In Stock, Qty 20+

0

2

RedMax 530069599

KIT-LINE(FUEL)

$7.49

$

In Stock, Qty 20+

0

3

RedMax 530095646

FUEL PICK-UP ASSY

$4.99

$

In Stock, Qty 20+

0

4

RedMax 530023877

FUEL LINE FITTING

$4.99

$

In Stock, Qty 20+

0

5

RedMax 530029868

VENT,FUEL TANK 36/41

$6.49

$

In Stock, Qty 14

0

6

RedMax 530026119

VALVE-CHECK (DUCKBILL)

$4.49

$

In Stock, Qty 15

0

7

RedMax 545061901

ISOLATOR FILTER HOUSING

$4.99

$

Usually ships in 3-10 days

0

8

RedMax 545075401

GROMMET

$3.99

$

Usually ships in 3-10 days

0

9

RedMax 525343301

REAR WALL ASSY ZENOAH RED

$2.49

$

Usually ships in 3-10 days

0

10

RedMax 545227101

SCREW 6-19X.437

$4.99

$

In Stock, Qty 8

0

11

RedMax 545063101

SPRING

$11.99

$

In Stock, Qty 15

0

12

RedMax 530015906

SCREW,FRONT HBAR 36/41

$6.49

$

In Stock, Qty 9

0

13

RedMax 530015877

BAR BOLT 36/41

$7.49

$

In Stock, only 1 left!

0

14

RedMax 545071401

PLATE BAR

$4.99

$

In Stock, Qty 6

0

15

RedMax 525318401

SEAL

$3.99

$

In Stock, only 1 left!

0

16

RedMax 530037820

WORM GEAR

$6.49

$

In Stock, only 4 left!

0

17

RedMax 574719301

OIL PUMP COMPLETE
(Superseded to 581063901)

$9.99

$

In Stock, Qty 6

0

18

RedMax 545227101

SCREW 6-19X.437

$4.99

$

In Stock, Qty 8

0

19

RedMax 530057932

PLUNGER & GEAR
(Superseded to 581063901)

$9.99

$

In Stock, Qty 6

0

20

RedMax 530057930

PUMP
(Superseded to 581063901)

$9.99

$

In Stock, Qty 6

0

21

RedMax 545227501

BLOCK OIL

$10.99

$

In Stock, only 2 left!

0

22

RedMax 530049477

ELBOW

$4.99

$

In Stock, Qty 5

0

23

RedMax 545069501

PICK UPS ASSY OIL TANK

$8.99

$

In Stock, Qty 6

0

24

RedMax 530056533

SCREEN/FILTER

$6.49

$

Usually ships in 3-10 days

0

25

RedMax 576782501

KIT OIL PUMP ASSY
(Superseded to 581063901)

$9.99

$

In Stock, Qty 6

0

26

RedMax 530015814

SCREW

$6.49

$

In Stock, Qty 20+

0

27

RedMax 530029850

CHAIN CATCHER 36/41

$6.49

$

In Stock, Qty 20+

0

28

RedMax 545033501

OIL TUBE

$6.49

$

In Stock, Qty 10

0

29

RedMax 530016439

SCREW

$6.49

$

In Stock, only 1 left!

0

30

RedMax 530014381

SPIKE 36/41

$9.99

$

In Stock, Qty 16

0

31

RedMax 577881301

CHASSIS ASSY

$62.99

$

Usually ships in 3-10 days

0

32

RedMax 577858301

ASSY CAP FUEL/OIL GRAY
(Superseded to 544111203)

$3.99

$

In Stock, Qty 20+

0

33

RedMax 545033801

ISOLATOR

$10.99

$

In Stock, Qty 9

0

34

RedMax 530015906

SCREW,FRONT HBAR 36/41

$6.49

$

In Stock, Qty 9

0

35

RedMax 579173401

KIT CHASSIS BRASS INSERTS(3EA)

$7.49

$

In Stock, only 1 left!

0

36

RedMax 577858401

ASSY CAP FUEL/OIL BLACK

$6.49

$

Usually ships in 3-10 days

0
