GZ 381 - RedMax Chainsaw CRANKCASE Parts Diagram

Chainsaw

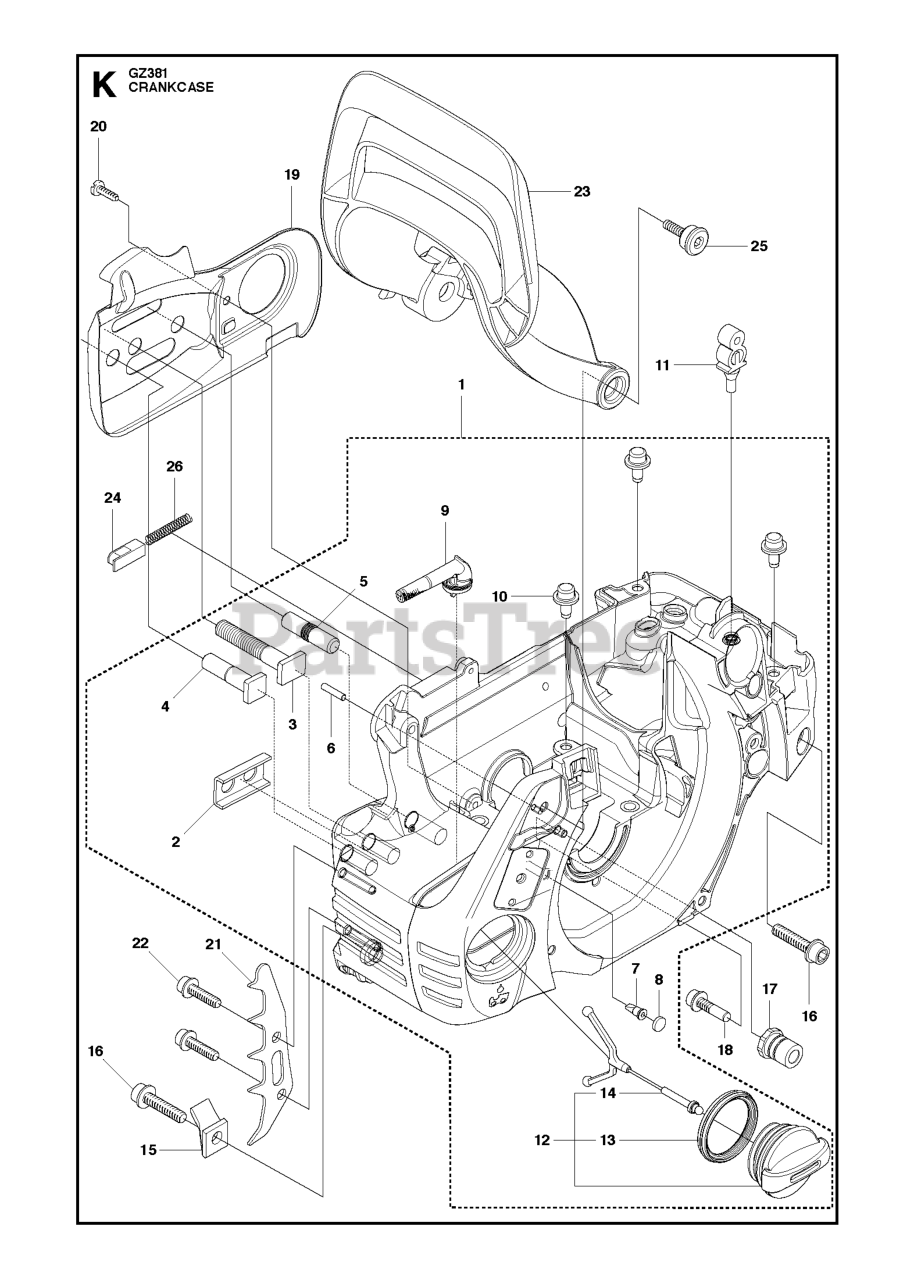

CRANKCASE Parts Diagram

  • Title

1

RedMax 544932504

CRANKCASE ASSY

$74.99

$

Usually ships in 3-10 days

0

2

RedMax 503875802

STIFFENING PLATE

$6.99

$

In Stock, Qty 12

0

3

RedMax 503875402

BAR BOLT

$6.99

$

In Stock, Qty 17

0

4

RedMax 537334601

BAR BOLT (X2)

$6.99

$

In Stock, Qty 7

0

5

RedMax 544036401

BAR BOLT

$4.99

$

In Stock, only 2 left!

0

6

RedMax 503240905

PIN

$3.49

$

In Stock, Qty 10

0

7

RedMax 530026119

VALVE-CHECK (DUCKBILL)

$5.99

$

In Stock, Qty 20+

0

8

RedMax 537403501

FILTER
(Superseded to 537403502)

$3.49

$

In Stock, Qty 10

0

9

RedMax 544083301

OIL SCREEN

$5.99

$

In Stock, only 2 left!

0

10

RedMax 544331601

GUIDE PEN

$4.99

$

Usually ships in 3-10 days

0

11

RedMax 503869301

CARBURETOR MOUNTING
(Superseded to 597909701)

$6.99

$

In Stock, only 2 left!

0

12

RedMax 544111204

TANK CAP ASSY
(Superseded to 544111203)

$7.99

$

Usually ships in 3-10 days

0

13

RedMax 589241101

SEALING

$6.99

$

In Stock, Qty 5

0

14

RedMax 503578901

TANK LOCK

$5.99

$

In Stock, Qty 10

0

15

RedMax 503886301

CHAIN CATCHER PIN

$5.99

$

In Stock, Qty 5

0

16

RedMax 503218876

SCREW

$5.99

$

In Stock, only 3 left!

0

17

RedMax 501007601

LATERAL SUPPORT

$3.49

$

In Stock, only 1 left!

0

18

RedMax 503215103

SCREW IHSCFT

$3.49

$

In Stock, only 2 left!

0

19

RedMax 544284601

CHAIN GUIDE PLATE

$6.99

$

In Stock, Qty 12

0

20

RedMax 503217010

SCREW CCRPANT

$3.49

$

In Stock, Qty 17

0

21

RedMax 544286501

SPIKE INNER

$6.99

$

Usually ships in 3-10 days

0

22

RedMax 503217520

SCREW

$3.49

$

In Stock, Qty 14

0

23

RedMax 506492501

HAND GUARD

$20.99

$

Usually ships in 3-10 days

0

24

RedMax 503892401

CATCH

$6.99

$

In Stock, Qty 8

0

25

RedMax 503893001

SCREW

$4.99

$

In Stock, only 3 left!

0

26

RedMax 503436501

POSITION SPRING

$3.49

$

Usually ships in 3-10 days

0
