GZ 381 - RedMax Chainsaw FUEL TANK Parts Diagram

Chainsaw

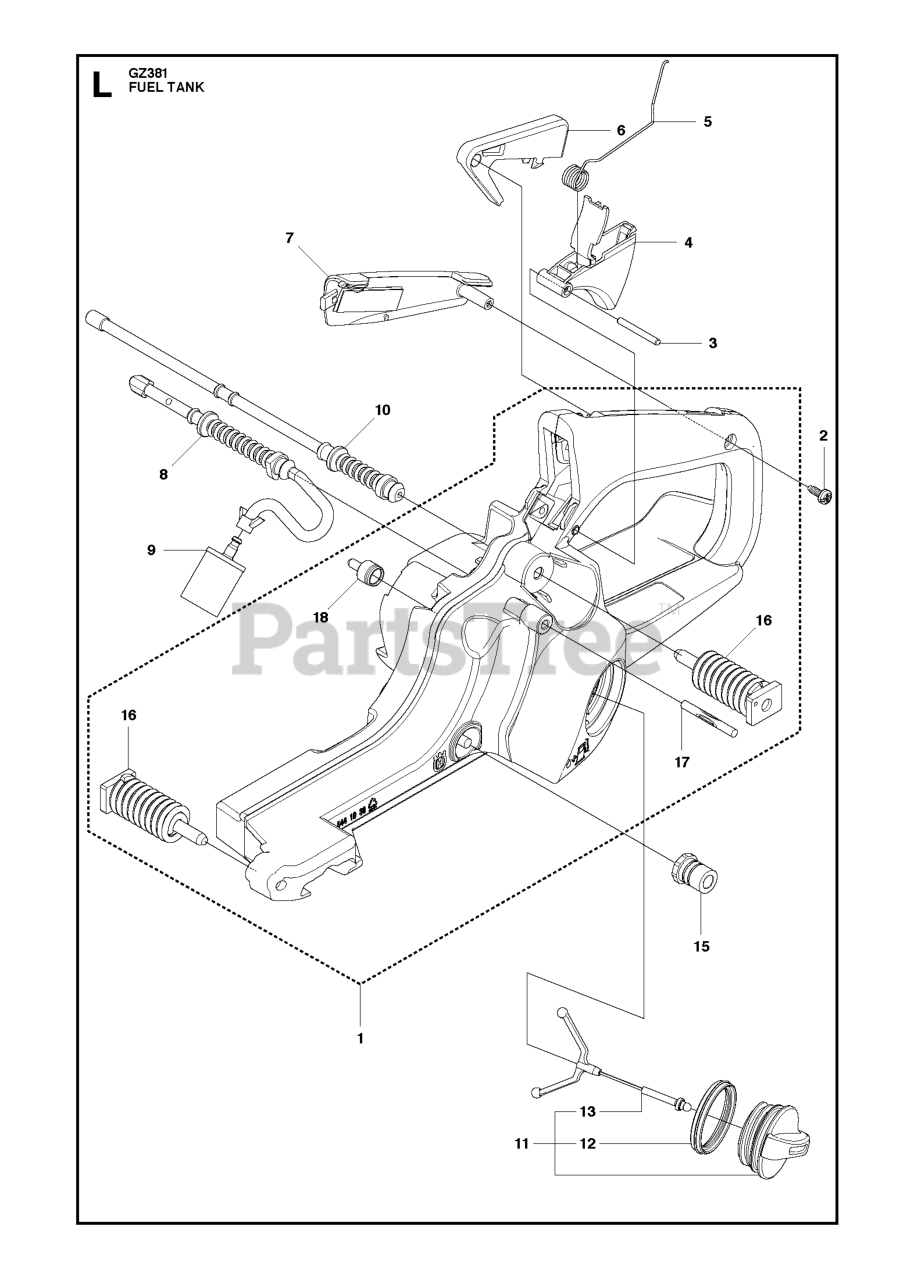

FUEL TANK Parts Diagram

  • Title

1

RedMax 544193812

FUEL TANK

$40.99

$

Usually ships in 3-10 days

0

2

RedMax 503212810

SCREW CCRPANT

$3.99

$

In Stock, Qty 20+

0

3

RedMax 720182520

PIN

$2.49

$

In Stock, Qty 20+

0

4

RedMax 544968502

THROTTLE CONTROL

$13.99

$

Usually ships in 3-10 days

0

5

RedMax 544099901

SPRING

$7.49

$

In Stock, Qty 10

0

6

RedMax 579239402

TRIGGER LOCKOUT BLACK

$3.99

$

Usually ships in 3-10 days

0

7

RedMax 544284902

HANDLE INSERT

$4.99

$

Usually ships in 3-10 days

0

8

RedMax 544128601

FUEL HOSE
(Superseded to 523055201)

$14.99

$

Usually ships in 3-10 days

0

9

RedMax 503443201

FUEL FILTER
(Superseded to 591375401)

$10.99

$

In Stock, Qty 20+

0

10

RedMax 544129701

RP RETURN HOSE
(Superseded to 577535101)

$18.99

$

In Stock, Qty 8

0

11

RedMax 544111204

TANK CAP ASSY
(Superseded to 544111203)

$3.99

$

In Stock, Qty 20+

0

12

RedMax 589241101

SEALING

$8.99

$

In Stock, Qty 19

0

13

RedMax 503578901

TANK LOCK

$9.99

$

In Stock, Qty 15

0

15

RedMax 501007601

LATERAL SUPPORT

$7.49

$

In Stock, Qty 8

0

16

RedMax 504795601

ANTIVIBRATION ELEMENT

$9.99

$

Usually ships in 3-10 days

0

17

RedMax 721126339

GROOVED PIN

$6.49

$

Usually ships in 3-10 days

0

18

RedMax 501152901

FUEL TANK VENT

$15.99

$

In Stock, Qty 20+

0
