GZ 4000 - RedMax Chainsaw (SN: 720401 & Above) (2012-08) ENGINE Parts Diagram

Chainsaw

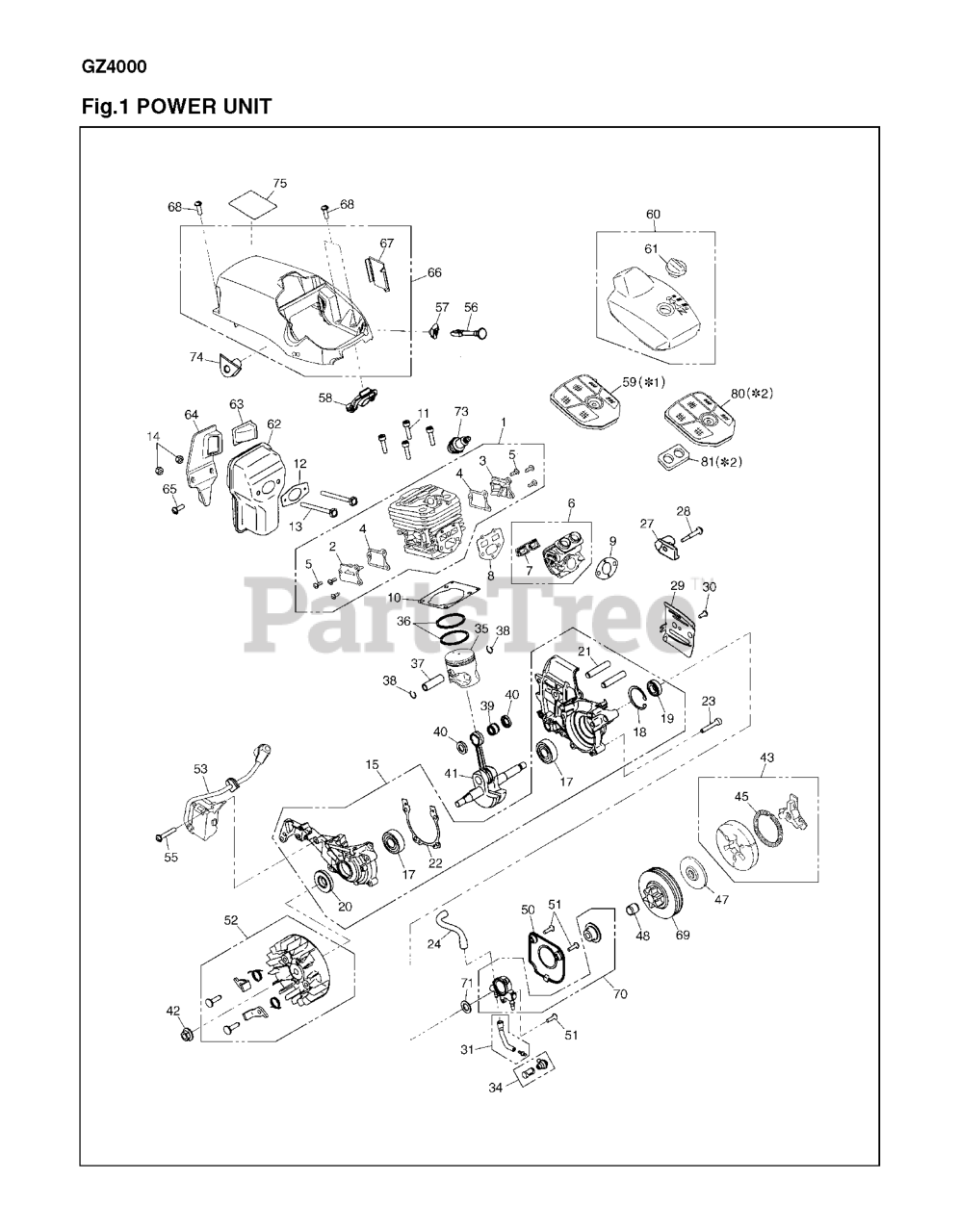

ENGINE Parts Diagram

  • Title

1

RedMax 521568601

CYLINDER ASSY
(Superseded to 527745701)

$48.99

$

In Stock, only 1 left!

0

2

RedMax 521568701

TR COVER MAG

$4.99

$

Usually ships in 3-10 days

0

3

RedMax 521568801

TR COVER PTO

$

$

Not available

4

RedMax 511123001

GASKET

$15.99

$

Usually ships in 3-10 days

0

5

RedMax 516808801

SCREW
(Superseded to 574005301)

$3.99

$

In Stock, Qty 20+

0

6

RedMax 521569201

INSULATOR
(Superseded to 585362901)

$84.99

$

Usually ships in 3-10 days

0

7

RedMax 522648601

SEAL

$27.99

$

In Stock, only 1 left!

0

8

RedMax 521569301

GASKET

$3.99

$

Usually ships in 3-10 days

0

9

RedMax 514209101

GASKET

$3.99

$

Usually ships in 3-10 days

0

10

RedMax 513744001

GASKET

$3.99

$

In Stock, only 1 left!

0

11

RedMax 504114301

BOLT

$6.49

$

In Stock, Qty 12

0

12

RedMax 521792001

GASKET, MUFFLER

$4.99

$

Usually ships in 3-10 days

0

13

RedMax 512455401

BOLT

$3.99

$

In Stock, only 2 left!

0

14

RedMax 516960901

NUT

$6.49

$

In Stock, only 1 left!

0

15

RedMax 521565101

CRANKCASE ASSY

$46.99

$

Usually ships in 3-10 days

0

17

RedMax 504121401

BEARING
(Superseded to 521521001)

$12.99

$

In Stock, Qty 8

0

18

RedMax 504121001

RING

$3.99

$

Usually ships in 3-10 days

0

19

RedMax 513488701

SEAL

$4.99

$

Usually ships in 3-10 days

0

20

RedMax 504121301

SEAL

$10.99

$

Usually ships in 3-10 days

0

21

RedMax 516738001

STUD BOLT

$4.99

$

Usually ships in 3-10 days

0

22

RedMax 512455701

GASKET

$

$

Not available

23

RedMax 515388101

BOLT

$4.99

$

In Stock, only 3 left!

0

24

RedMax 521792601

PIPE
(Superseded to 521792602)

$4.99

$

Usually ships in 3-10 days

0

27

RedMax 521558601

CATCHER (RPLS 848C3066F1)

$3.99

$

Usually ships in 3-10 days

0

28

RedMax 513747501

SCREW

$

$

Not available

29

RedMax 513748101

PLATE(A)

$

$

Not available

30

RedMax 516808801

SCREW
(Superseded to 574005301)

$3.99

$

In Stock, Qty 20+

0

31

RedMax 521558801

PIPE IN COMP.(RPLS 848C306731)

$

$

Not available

34

RedMax 521565601

FILTER COMP (RPLS T210023200)

$40.99

$

Usually ships in 3-10 days

0

35

RedMax 511124901

RP PISTON
(Superseded to 511125001)

$27.99

$

Usually ships in 3-10 days

0

36

RedMax 513614101

RING.PISTON
(Superseded to 510918001)

$12.99

$

Usually ships in 3-10 days

0

37

RedMax 512484901

PIN

$6.49

$

Usually ships in 3-10 days

0

38

RedMax 516283001

RING

$4.99

$

In Stock, only 2 left!

0

39

RedMax 505297301

ROLLER BEARING
(Superseded to 521794701)

$9.99

$

In Stock, Qty 5

0

40

RedMax 513752401

WASHER
(Superseded to 574008001)

$4.99

$

In Stock, Qty 6

0

41

RedMax 521799401

SHAFT COMP
(Superseded to 570900201)

$

$

Not available

42

RedMax 504118001

NUT
(Superseded to 516437401)

$3.99

$

Usually ships in 3-10 days

0

43

RedMax 521565201

CLUTCH ASSY(RPLS T210051200)

$60.99

$

Usually ships in 3-10 days

0

45

RedMax 513895001

SPRING

$

$

Not available

47

RedMax 513756201

PLATE

$8.99

$

Usually ships in 3-10 days

0

48

RedMax 514183301

ROLLER BEARING

$10.99

$

Usually ships in 3-10 days

0

50

RedMax 512461101

COVER

$4.99

$

Usually ships in 3-10 days

0

51

RedMax 516829401

SCREW
(Superseded to 574005701)

$3.99

$

In Stock, only 2 left!

0

52

RedMax 521569901

ROTOR COMP

$60.99

$

Usually ships in 3-10 days

0

53

RedMax 521570001

COIL ASSY

$109.99

$

Usually ships in 3-10 days

0

55

RedMax 516829401

SCREW
(Superseded to 574005701)

$3.99

$

In Stock, only 2 left!

0

56

RedMax 513793901

ROD.CHOKE

$

$

Not available

57

RedMax 512462801

GROMMET

$3.49

$

Usually ships in 3-10 days

0

58

RedMax 512463101

GROMMET

$4.99

$

In Stock, only 1 left!

0

59

RedMax 521573501

CLEANER ASSY

$48.99

$

Usually ships in 3-10 days

0

60

RedMax 521573601

COVER COMP

$26.99

$

Usually ships in 3-10 days

0

61

RedMax 513737301

KNOB

$6.49

$

Usually ships in 3-10 days

0

62

RedMax 512455201

MUFFLER

$24.99

$

Usually ships in 3-10 days

0

63

RedMax 512472401

ARRESTER, SPARK

$7.49

$

Usually ships in 3-10 days

0

64

RedMax 512455501

STAY

$

$

Not available

65

RedMax 513615701

RP_SCREW
(Superseded to 578468301)

$

$

Not available

66

RedMax 521569501

COVER COMP

$24.99

$

Usually ships in 3-10 days

0

67

RedMax 513825001

CAP

$2.49

$

Usually ships in 3-10 days

0

68

RedMax 521518101

SCREW

$4.99

$

In Stock, Qty 8

0

69

RedMax 513843301

DRUM.3/8-6

$66.99

$

Usually ships in 3-10 days

0

70

RedMax 521586101

OIL PUMP SET(RPLS T210055110)

$

$

Not available

71

RedMax 505053301

WASHER

$3.49

$

Usually ships in 3-10 days

0

73

RedMax 521233401

PLUG CMR7H

$4.46

$

Usually ships in 3-10 days

0

74

RedMax 513856101

GROMMET

$

$

Not available

75

RedMax 512472501

LABEL

$2.49

$

Usually ships in 3-10 days

0

80

RedMax 511129601

SEAL

$3.99

$

Usually ships in 3-10 days

0

81

RedMax 512485401

CLEANER

$27.99

$

Usually ships in 3-10 days

0
