GZ 4350 - RedMax Chainsaw (2017-10) CARBURETOR DETAILS Parts Diagram

Chainsaw

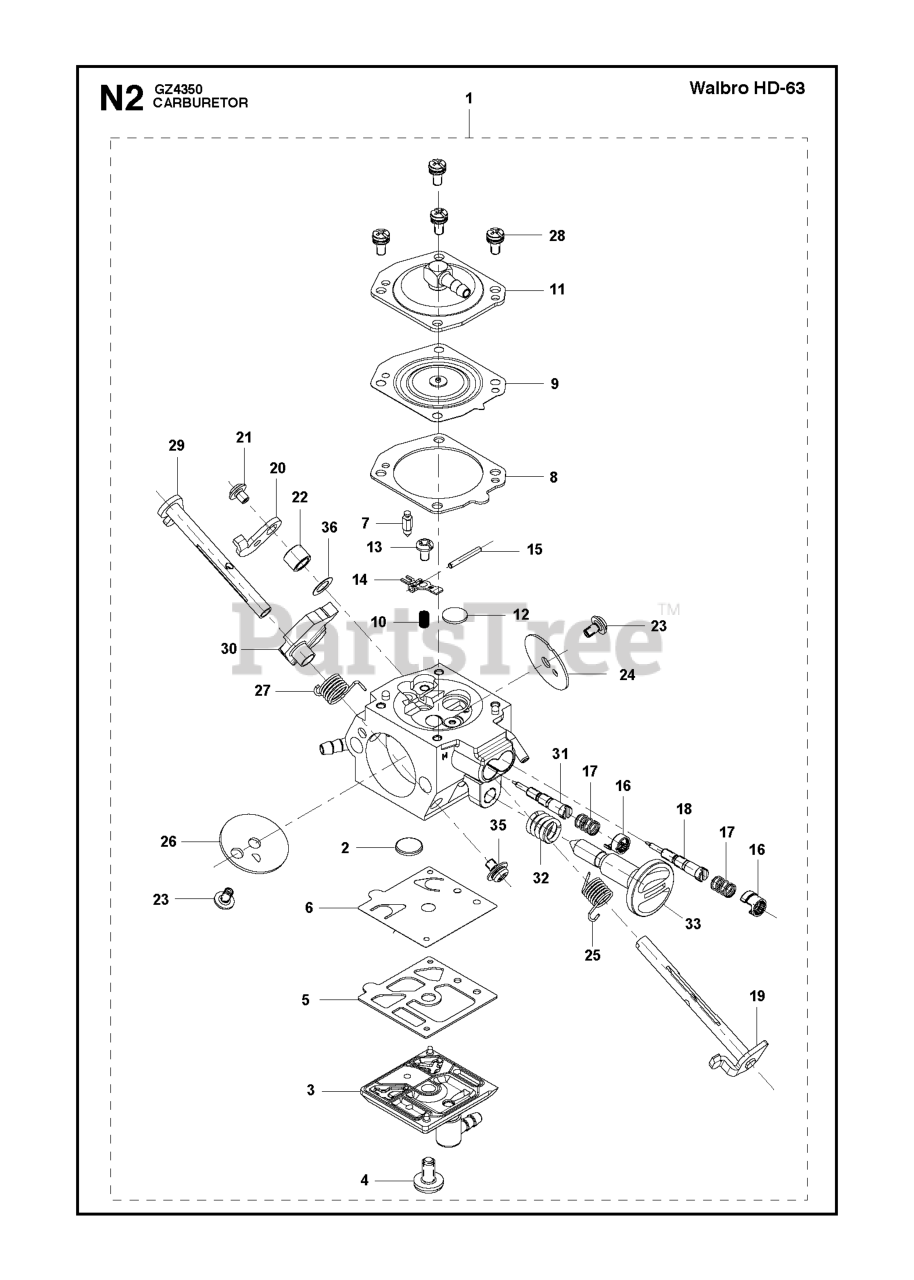

CARBURETOR DETAILS Parts Diagram

  • Title

1

RedMax 590413401

CARBURETTOR ASSY

$121.99

$

Usually ships in 3-10 days

0

2

RedMax 520957001

SCREEN
(Superseded to 574012501)

$4.99

$

Usually ships in 3-10 days

0

3

RedMax 579492101

COVER ASSEMBLY PUMP 21-3780

$

$

Not available

4

RedMax 513301301

SCREW Z149181130

$4.99

$

Usually ships in 3-10 days

0

5

RedMax 514242701

GASKET

$6.49

$

Usually ships in 3-10 days

0

6

RedMax 585399801

DIAPHRAGM PUMP

$10.99

$

Usually ships in 3-10 days

0

7

RedMax 521085401

VALVE INLET
(Superseded to 505055601)

$27.99

$

Usually ships in 3-10 days

0

8

RedMax 514242801

GASKET

$4.99

$

Usually ships in 3-10 days

0

9

RedMax 579492201

DIAPHRAGM ASSEMBLY METERING 95

$27.99

$

Usually ships in 3-10 days

0

10

RedMax 516980001

SPRING
(Superseded to 574024101)

$4.99

$

Usually ships in 3-10 days

0

11

RedMax 501405701

COVER PUMP

$34.99

$

Usually ships in 3-10 days

0

12

RedMax 516342901

PLUG

$4.99

$

Usually ships in 3-10 days

0

13

RedMax 520977301

SCREW

$6.49

$

Usually ships in 3-10 days

0

14

RedMax 514242901

LEVER

$8.99

$

Usually ships in 3-10 days

0

15

RedMax 520977401

PIN

$6.49

$

Usually ships in 3-10 days

0

16

RedMax 578913001

CAP LIMITER

$9.99

$

Usually ships in 3-10 days

0

17

RedMax 578912801

SPRING

$3.99

$

Usually ships in 3-10 days

0

18

RedMax 580242101

NEEDLE

$

$

Not available

19

RedMax 579492501

SHAFT ASSY THROTTLE 22-4282

$60.99

$

Usually ships in 3-10 days

0

20

RedMax 579492601

LEVER THROTTLE 18-3551

$30.99

$

Usually ships in 3-10 days

0

21

RedMax 520759801

SCREW
(Superseded to 574024201)

$3.99

$

Usually ships in 3-10 days

0

22

RedMax 579492701

SPACER THROTTLE LEVER 148-96

$14.99

$

Usually ships in 3-10 days

0

23

RedMax 579492801

SCREW 96-3240

$3.99

$

Usually ships in 3-10 days

0

24

RedMax 579492901

VALVE THROTTLE 34-314

$9.99

$

Usually ships in 3-10 days

0

25

RedMax 579493001

SPRING 98-3706

$24.99

$

Usually ships in 3-10 days

0

26

RedMax 579493101

VALVE CHOKE 34-3504

$15.99

$

Usually ships in 3-10 days

0

27

RedMax 581298001

SPRING 98-3718

$10.99

$

Usually ships in 3-10 days

0

28

RedMax 520978801

SCREW ASSY

$3.99

$

Usually ships in 3-10 days

0

29

RedMax 581298101

SHAFT ASSY CHOKE 22-4356

$34.99

$

In Stock, only 1 left!

0

30

RedMax 581298201

LEVER FAST IDEL 18-3566

$24.99

$

Usually ships in 3-10 days

0

31

RedMax 580242601

NEEDLE HIGH SPEED

$22.99

$

Usually ships in 3-10 days

0

32

RedMax 521066301

SPRING

$6.49

$

Usually ships in 3-10 days

0

33

RedMax 513792801

SCREW Z285082310

$27.99

$

Usually ships in 3-10 days

0

35

RedMax 581298301

SCREW

$

$

Not available

36

RedMax 506746101

WASHER
(Superseded to 521360401)

$0.99

$

Usually ships in 3-10 days

0
