GZ 4350 - RedMax Chainsaw (2017-10) CHAIN BRAKE & CLUTCH COVER Parts Diagram

Chainsaw

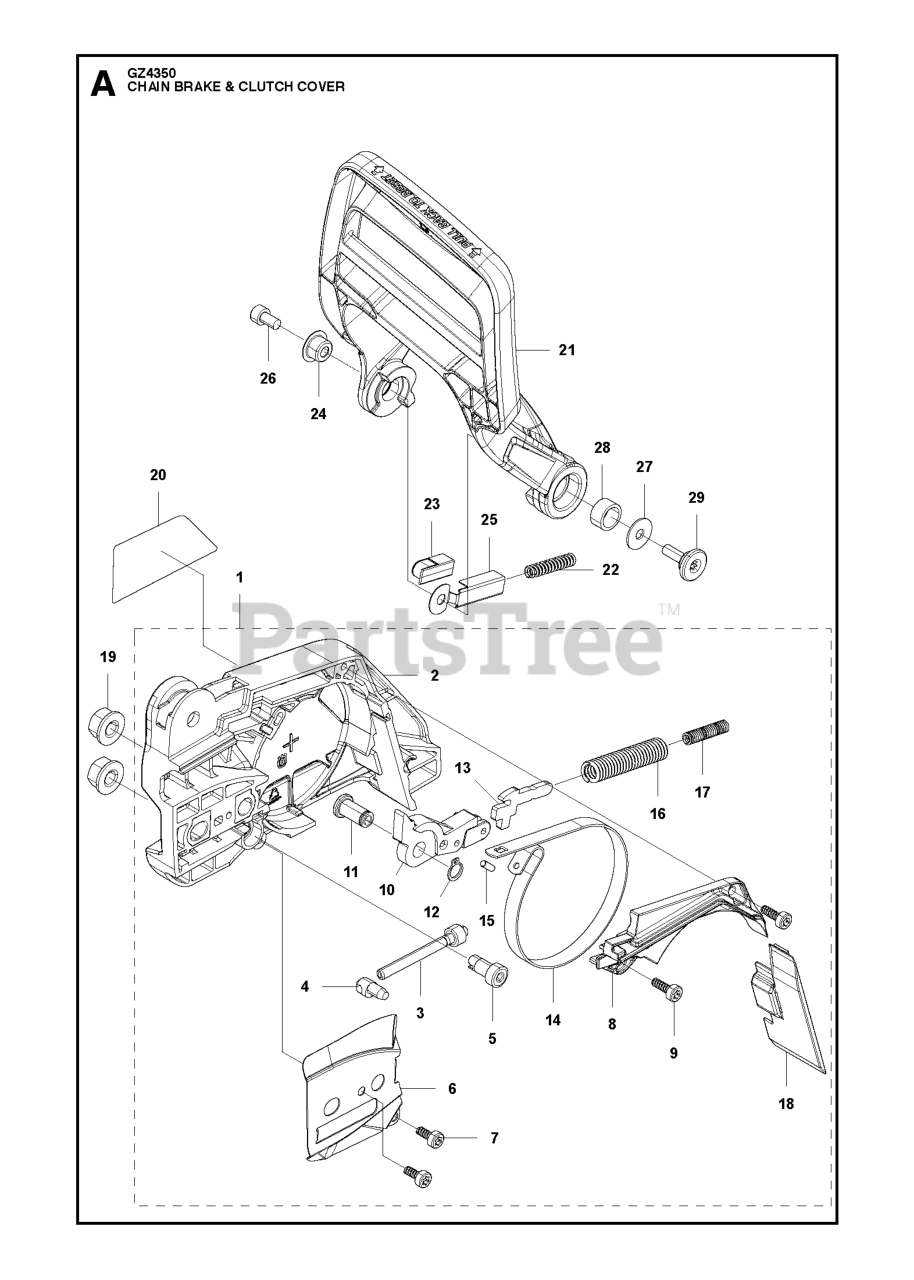

CHAIN BRAKE & CLUTCH COVER Parts Diagram

  • Title

1

RedMax 588860802

CLUTCH COVER ASSY

$72.99

$

Usually ships in 3-10 days

0

2

RedMax 588749001

CLUTCH COVER

$14.99

$

Usually ships in 3-10 days

0

3

RedMax 513637701

SCREW

$21.99

$

Usually ships in 3-10 days

0

4

RedMax 513701401

NUT

$10.99

$

In Stock, only 2 left!

0

5

RedMax 513637901

GEAR

$11.99

$

In Stock, only 1 left!

0

6

RedMax 576983901

PLATE

$11.99

$

In Stock, only 1 left!

0

7

RedMax 576984101

SCREW

Note: T4x10-T27

$4.99

$

In Stock, only 4 left!

0

8

RedMax 576983801

COVER LID

$

$

Not available

9

RedMax 576984001

SCREW

Note: T4x12-T27

$4.99

$

In Stock, only 2 left!

0

10

RedMax 576983501

BRAKE LEVER COMP

$36.99

$

Usually ships in 3-10 days

0

11

RedMax 577008201

PIN

$7.99

$

Usually ships in 3-10 days

0

12

RedMax 579190201

RING

$4.99

$

Usually ships in 3-10 days

0

13

RedMax 516825601

ARM
(Superseded to 574005401)

$4.99

$

Usually ships in 3-10 days

0

14

RedMax 580490801

BRAKE BAND

$22.99

$

Usually ships in 3-10 days

0

15

RedMax 521075401

ROLLER
(Superseded to 574013101)

$3.99

$

Usually ships in 3-10 days

0

16

RedMax 516826601

SPRING
(Superseded to 574079301)

$4.99

$

Usually ships in 3-10 days

0

17

RedMax 513965901

SPRING

$6.49

$

Usually ships in 3-10 days

0

18

RedMax 576984201

WEAR PROTECTION

$7.99

$

Usually ships in 3-10 days

0

19

RedMax 575960801

NUT FLANGE

Note: M8xP1.25

$4.99

$

Usually ships in 3-10 days

0

20

RedMax 590923401

DECAL COVER GZ4350-US

$6.49

$

Usually ships in 3-10 days

0

21

RedMax 581647301

HAND GUARD

$12.99

$

Usually ships in 3-10 days

0

22

RedMax 576984501

SPRING

$6.99

$

Usually ships in 3-10 days

0

23

RedMax 576984601

CATCH

$6.99

$

Usually ships in 3-10 days

0

24

RedMax 576984901

SPACER

$7.99

$

In Stock, only 2 left!

0

25

RedMax 576985001

WEAR PROTECTION

$6.99

$

Usually ships in 3-10 days

0

26

RedMax 529268101

BOLT

Note: M5x9-T27

$6.49

$

Usually ships in 3-10 days

0

27

RedMax 513287101

WASHER

$3.99

$

Usually ships in 3-10 days

0

28

RedMax 576985201

SPACER

$9.49

$

Usually ships in 3-10 days

0

29

RedMax 526834501

SCREW

$6.99

$

Usually ships in 3-10 days

0
