GZ 4350 - RedMax Chainsaw (2017-10) CLUTCH & OIL PUMP Parts Diagram

Chainsaw

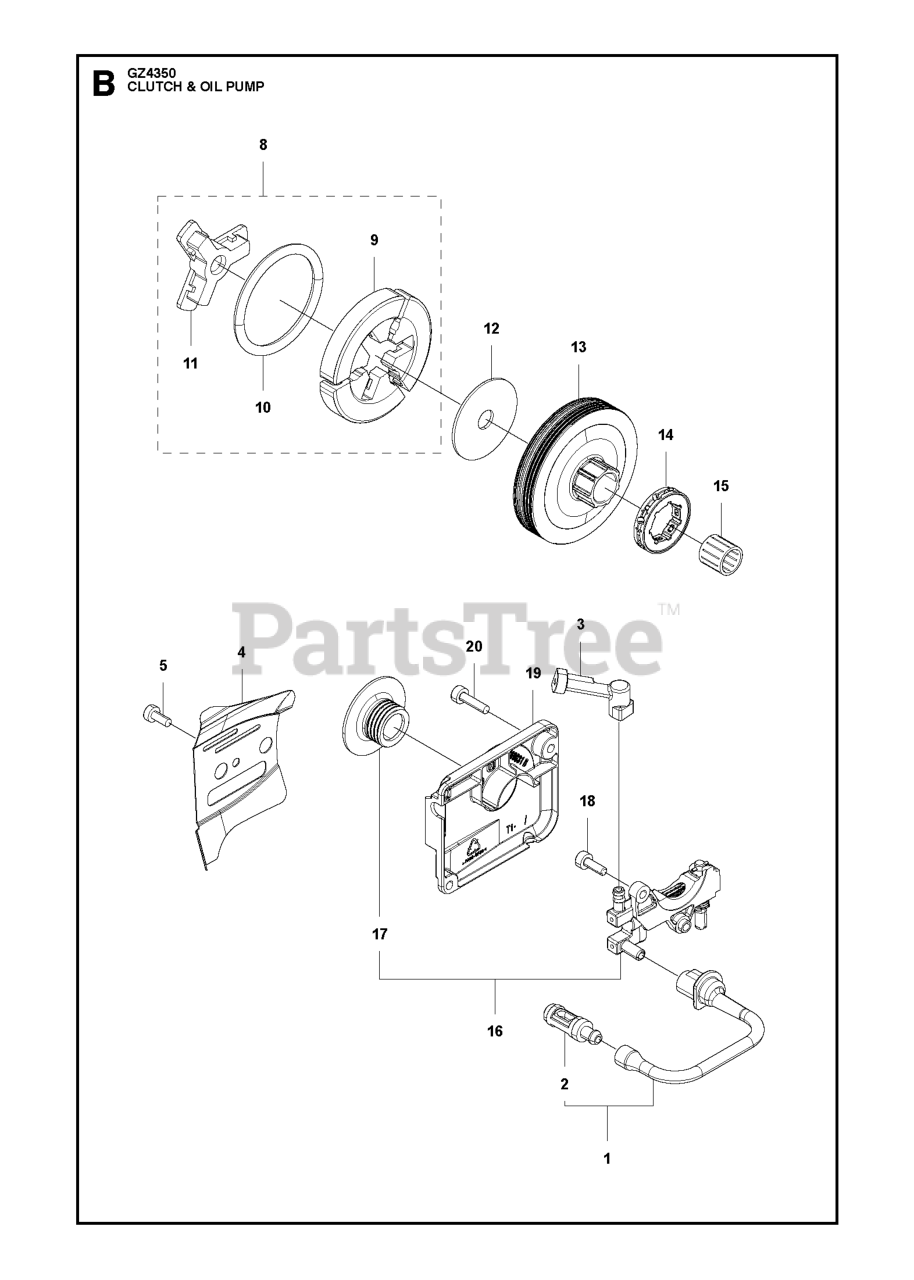

CLUTCH & OIL PUMP Parts Diagram

  • Title

1

RedMax 521579901

OILPIPE COMP 848C806732
(Superseded to 521579902)

$34.99

$

Usually ships in 3-10 days

0

2

RedMax 521580001

RP_FILTER

$

$

Not available

3

RedMax 513618801

PIPE
(Superseded to 513618802)

$4.99

$

Usually ships in 3-10 days

0

4

RedMax 576985301

BAR MOUNT PLATE

$7.99

$

In Stock, only 1 left!

0

5

RedMax 576985401

SCREW

Note: M4x10-T27

$3.49

$

In Stock, only 3 left!

0

8

RedMax 585006001

CLTUCH ASSY

$62.99

$

In Stock, only 1 left!

0

9

RedMax 514197401

SHOE

$13.99

$

In Stock, only 1 left!

0

10

RedMax 585006101

CLUTCH SPRING

$5.99

$

Usually ships in 3-10 days

0

11

RedMax 521579401

BOSS 848C8051F1

$5.99

$

In Stock, only 2 left!

0

12

RedMax 513625701

PLATE

$4.99

$

Usually ships in 3-10 days

0

13

RedMax 513956101

DRUM

Note: 325P

$39.99

$

In Stock, only 2 left!

0

14

RedMax 514239401

RIM

$22.99

$

In Stock, only 4 left!

0

15

RedMax 513701201

BEARING

$9.49

$

In Stock, only 4 left!

0

16

RedMax 521586501

OIL PUMP SET (RPLS 848C806711)

Note: 325P

$96.99

$

Usually ships in 3-10 days

0

17

RedMax 511194501

WORM

$

$

Not available

18

RedMax 506745701

BOLT

Note: M4x16-T27

$3.49

$

In Stock, Qty 8

0

19

RedMax 576983101

PUMP COVER

$6.99

$

Usually ships in 3-10 days

0

20

RedMax 521515701

BOLT M4 X 12 T27

Note: M4x12-T27

$3.49

$

Usually ships in 3-10 days

0
