GZ 4350 - RedMax Chainsaw (2017-10) FUEL TANK Parts Diagram

Chainsaw

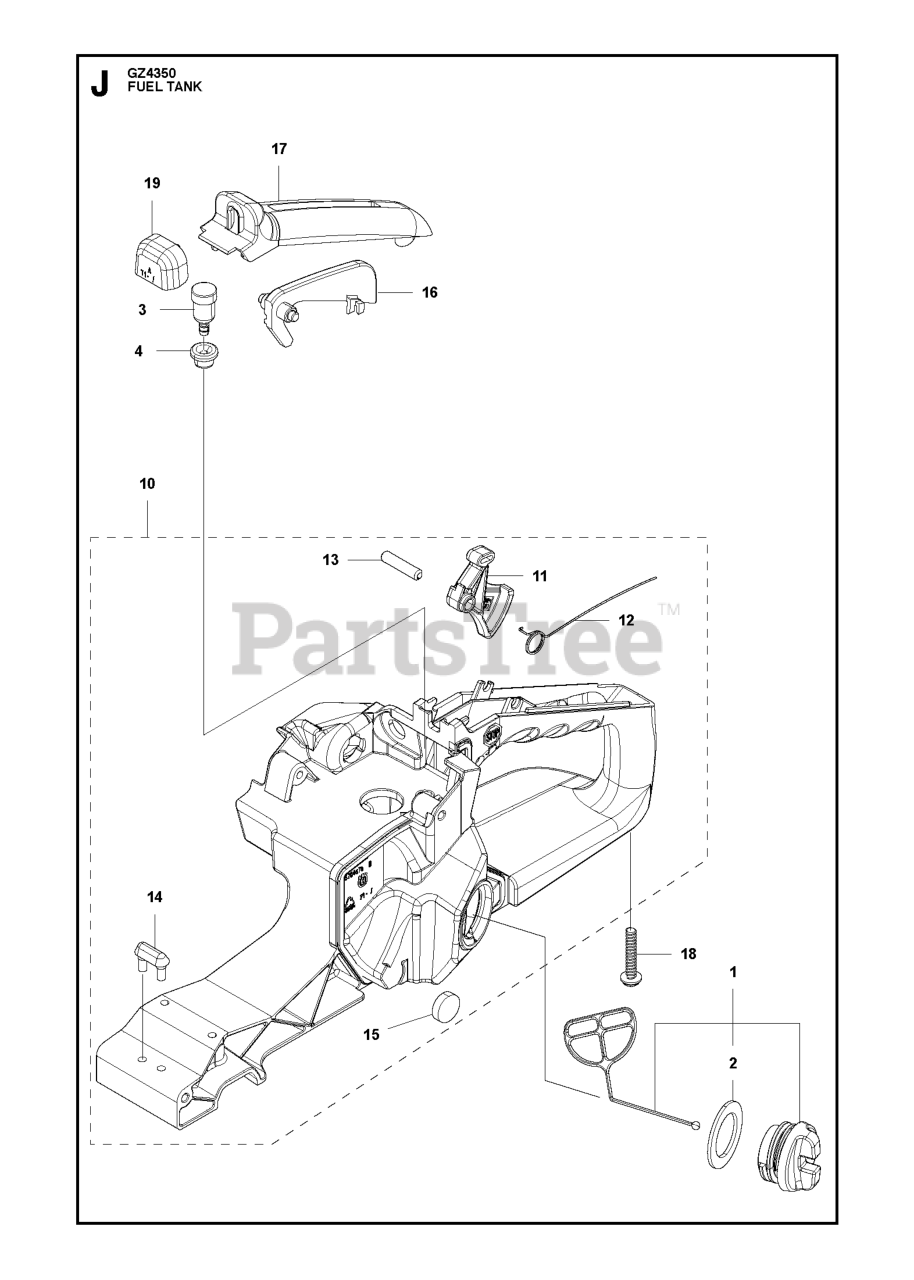

FUEL TANK Parts Diagram

  • Title

1

RedMax 579517901

CAP ASSY

$8.99

$

Usually ships in 3-10 days

0

2

RedMax 579518001

PACKING

$3.99

$

Usually ships in 3-10 days

0

3

RedMax 513751501

BREATHER
(Superseded to 574007901)

$13.99

$

In Stock, only 1 left!

0

4

RedMax 514201401

GROMMET
(Superseded to 574012901)

$3.99

$

Usually ships in 3-10 days

0

10

RedMax 579192701

HANDLE ASSY (B) STANDARD

$72.99

$

Usually ships in 3-10 days

0

11

RedMax 580694701

THROTTLE LEVER

$3.99

$

Usually ships in 3-10 days

0

12

RedMax 505048001

SPRING

$6.49

$

Usually ships in 3-10 days

0

13

RedMax 505048101

SPRING PIN

$4.99

$

Usually ships in 3-10 days

0

14

RedMax 513620201

DAMPER(A)

$

$

Not available

15

RedMax 513750201

HELPER(M) Z285033370

$6.49

$

Usually ships in 3-10 days

0

16

RedMax 521556501

ARM (RPLS 335633350-335633352)

$

$

Not available

17

RedMax 583950802

COVER GRIP BLACK

$3.99

$

Usually ships in 3-10 days

0

18

RedMax 521518301

SCREW

$3.99

$

Usually ships in 3-10 days

0

19

RedMax 580733001

SUPPORT

$7.99

$

In Stock, only 1 left!

0
