GZ 4350 - RedMax Chainsaw (2017-10) IGNITION SYSTEM Parts Diagram

Chainsaw

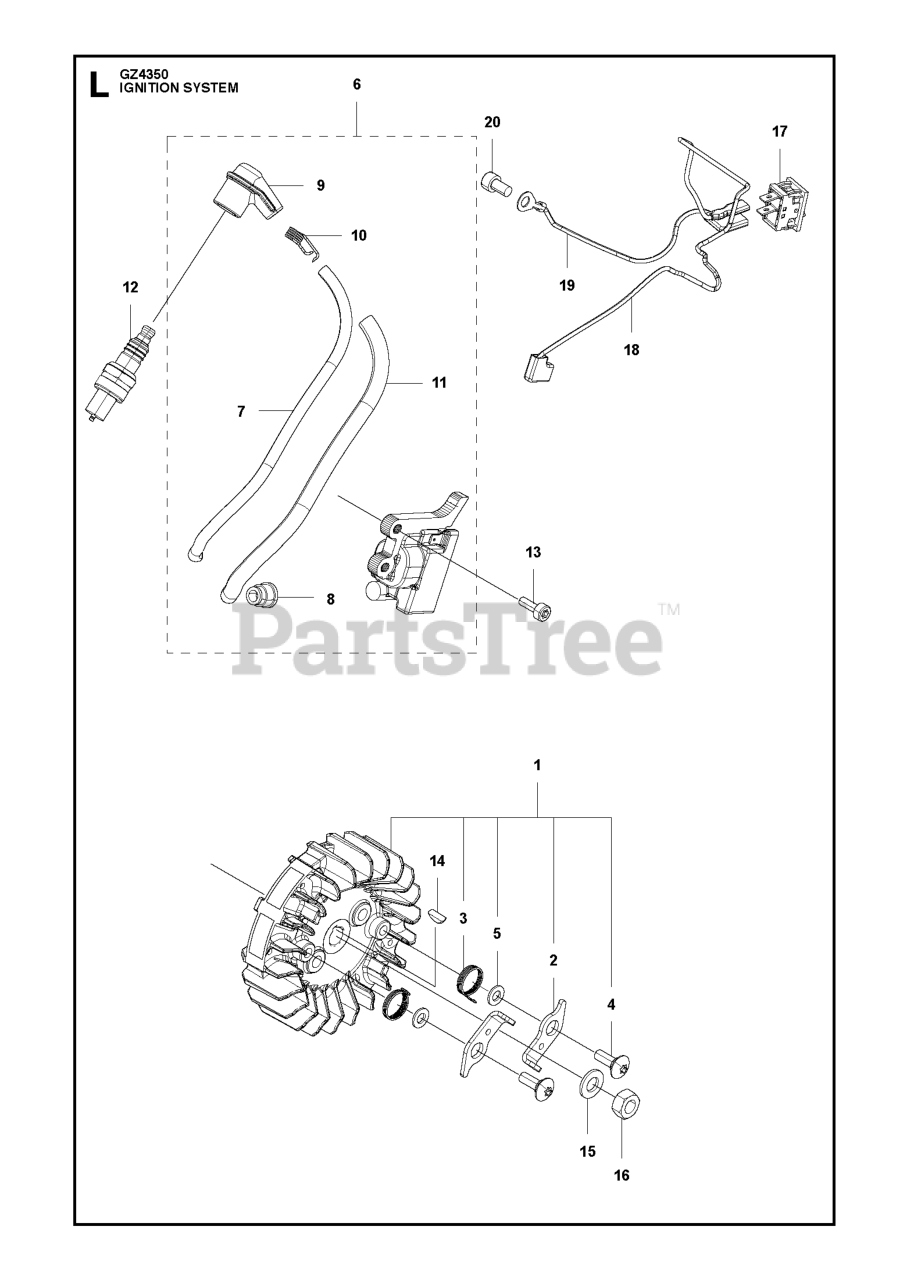

IGNITION SYSTEM Parts Diagram

  • Title

1

RedMax 576982301

FLYWHEEL ASSY

$136.99

$

Usually ships in 3-10 days

0

2

RedMax 576982501

PAWL

$7.99

$

Usually ships in 3-10 days

0

3

RedMax 514240901

SPRING

$3.99

$

Usually ships in 3-10 days

0

4

RedMax 577823601

SCREW T27 XC23

Note: M5x12-T27

$

$

Not available

5

RedMax 506614401

WASHER 5X10X10

$4.99

$

In Stock, Qty 5

0

6

RedMax 588849001

IGNITION MODULE ASSY

$84.99

$

Usually ships in 3-10 days

0

7

RedMax 577335501

CODE XC23

$

$

Not available

8

RedMax 505042801

CAP
(Superseded to 516744001)

$4.99

$

Usually ships in 3-10 days

0

9

RedMax 512444001

CAP

$7.49

$

In Stock, Qty 7

0

10

RedMax 504118201

SPRING
(Superseded to 506655201)

$4.99

$

In Stock, only 1 left!

0

11

RedMax 577335601

TUBE XC23

$

$

Not available

12

RedMax 521233401

PLUG CMR7H

Note: NGK CMR7H

$4.46

$

Usually ships in 3-10 days

0

13

RedMax 506745701

BOLT

Note: M4x16-T27

$3.99

$

In Stock, Qty 20+

0

14

RedMax 506689401

KEY
(Superseded to 516147801)

$4.99

$

In Stock, Qty 9

0

15

RedMax 510488101

WASHER

$3.99

$

Usually ships in 3-10 days

0

16

RedMax 514239201

NUT Z335043231

$4.99

$

Usually ships in 3-10 days

0

17

RedMax 586246901

SWITCH

$10.99

$

In Stock, only 1 left!

0

18

RedMax 576983001

CORD

$9.49

$

Usually ships in 3-10 days

0

19

RedMax 513766201

CORD

$6.49

$

Usually ships in 3-10 days

0

20

RedMax 529268101

BOLT

Note: M5x9-T27

$6.49

$

Usually ships in 3-10 days

0
