GZ 500 - RedMax Chainsaw CARBURETOR & AIR FILTER Parts Diagram

Chainsaw

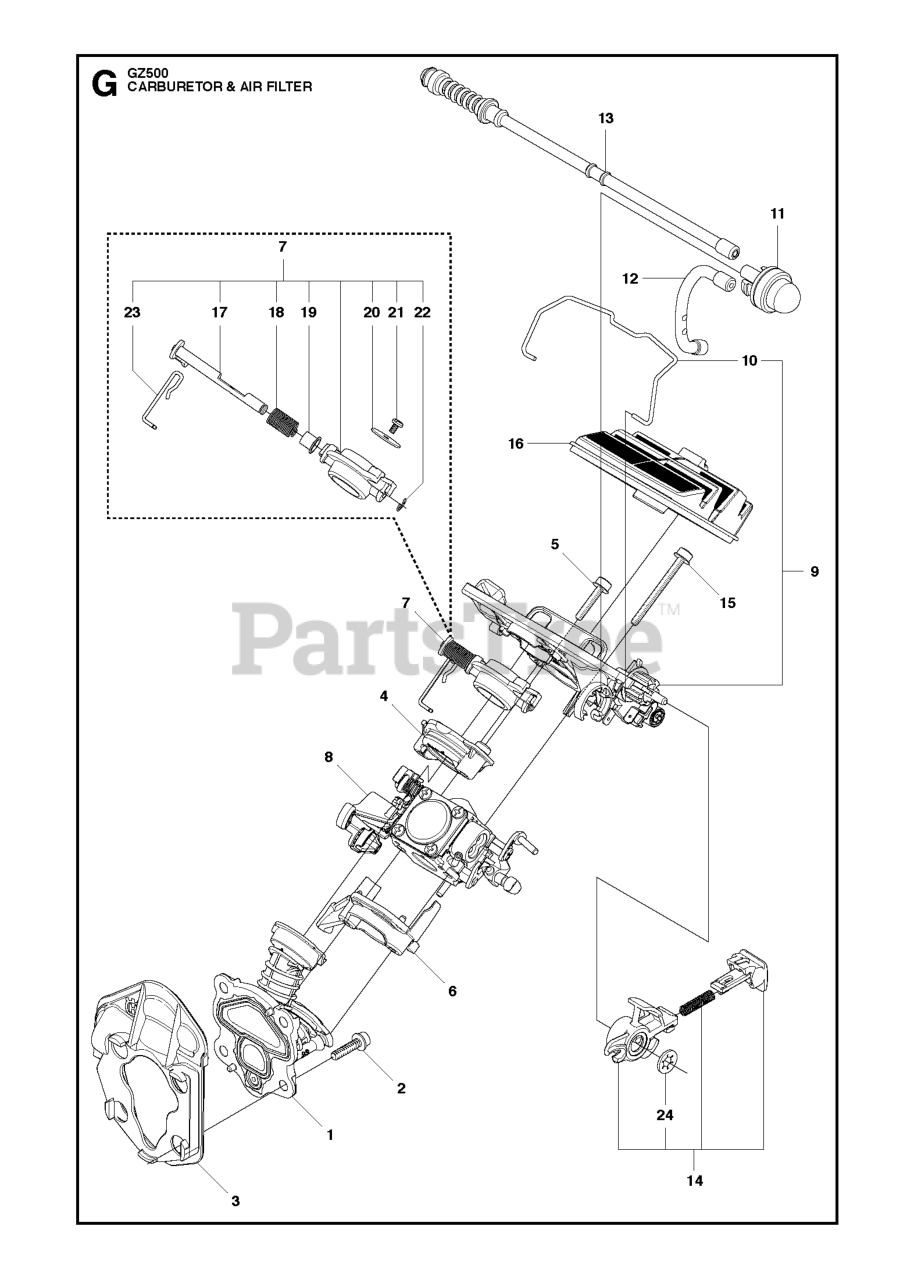

CARBURETOR & AIR FILTER Parts Diagram

  • Title

1

RedMax 544082301

INLET PIPE ASSY

$62.99

$

In Stock, only 1 left!

0

2

RedMax 503200216

SCREW

$4.99

$

In Stock, Qty 20+

0

3

RedMax 544083801

INTERMEDIATE WALL

$9.49

$

In Stock, only 2 left!

0

4

RedMax 544084001

FLANGE

$6.99

$

In Stock, only 2 left!

0

5

RedMax 503210725

SCREW

$7.49

$

Usually ships in 3-10 days

0

6

RedMax 544084101

FLANGE

$7.49

$

In Stock, Qty 9

0

7

RedMax 544148201

THROTTLE

$42.99

$

In Stock, only 1 left!

0

8

RedMax 506450401

CARBURETOR

Note: C1M-EL37B

$50.99

$

Usually ships in 3-10 days

0

9

RedMax 505514701

FILTER HOLDER ASSY

$17.99

$

Usually ships in 3-10 days

0

10

RedMax 544231401

SHACKLE

$10.99

$

Usually ships in 3-10 days

0

11

RedMax 503936601

AIR PURGE BUBBLE

$18.99

$

In Stock, Qty 20+

0

12

RedMax 544401901

HOSE

$6.99

$

In Stock, Qty 11

0

13

RedMax 577535101

RETURN HOSE

$18.99

$

In Stock, Qty 10

0

14

RedMax 544359902

CONTROL

$12.99

$

In Stock, Qty 7

0

15

RedMax 503210750

SCREW

$5.99

$

In Stock, only 2 left!

0

16

RedMax 544080801

AIR FILTER - NYLON (80)

Note: LS PA 80

$17.99

$

In Stock, only 1 left!

0

16

RedMax 544080802

AIR FILTER - NYLON (44)

Note: LS PA 44

$17.99

$

In Stock, Qty 14

0

16

RedMax 544080803

AIR FILTER - FELT

Note: Felt

$12.99

$

In Stock, Qty 10

0

17

RedMax 502081001

SHAFT ASSY

$26.99

$

In Stock, only 3 left!

0

18

RedMax 502081101

SPRING

$3.49

$

Usually ships in 3-10 days

0

19

RedMax 502080801

COLLAR

$4.99

$

Usually ships in 3-10 days

0

20

RedMax 502081201

VALVE

$10.99

$

Usually ships in 3-10 days

0

21

RedMax 503481801

SCREW

$3.99

$

In Stock, only 1 left!

0

22

RedMax 537385201

CLIP

$6.49

$

Usually ships in 3-10 days

0

23

RedMax 502080901

ROD

$10.99

$

In Stock, only 1 left!

0

24

RedMax 735583000

LOCK WASHER

$6.99

$

Usually ships in 3-10 days

0
