GZ 500 - RedMax Chainsaw CHAIN BRAKE & CLUTCH COVER Parts Diagram

Chainsaw

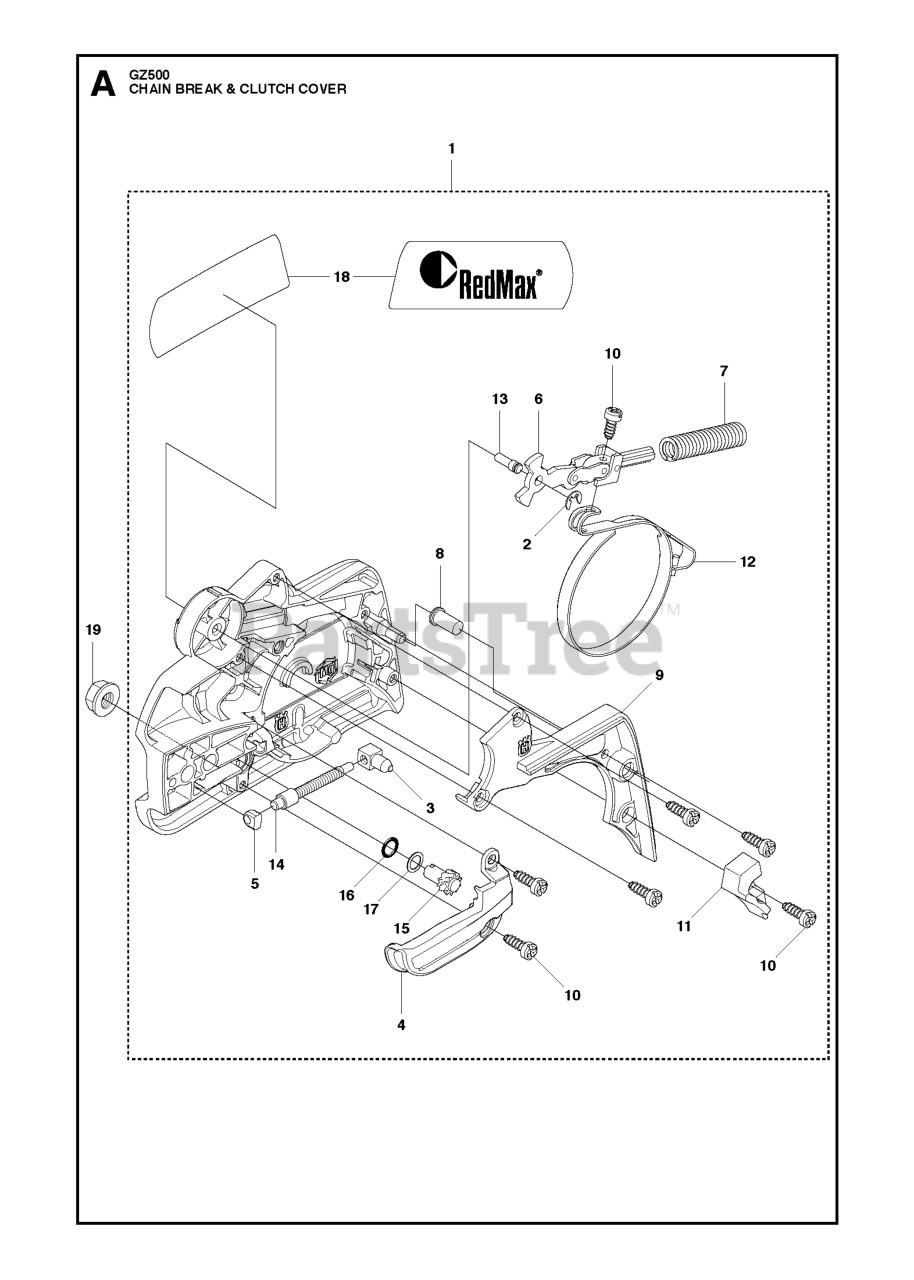

CHAIN BRAKE & CLUTCH COVER Parts Diagram

  • Title

1

RedMax 544097906

CLUTCH COVER ASSY STD REDMAX

$

$

Not available

2

RedMax 735310820

E-RING 4

$3.49

$

In Stock, only 4 left!

0

3

RedMax 537286601

PAWL

$

$

Not available

4

RedMax 540063301

CHAIN GUIDE

$5.99

$

In Stock, Qty 7

0

5

RedMax 537017401

BEARING SLEEVE

$5.99

$

In Stock, Qty 20+

0

6

RedMax 503890802

KNEE JOINT ASSY

$26.99

$

In Stock, only 1 left!

0

7

RedMax 503465901

BRAKE SPRING

$7.99

$

In Stock, only 3 left!

0

8

RedMax 503855201

GUIDE BUSHING

$5.99

$

In Stock, Qty 14

0

9

RedMax 544082901

COVER, CHAIN BRAKE

$7.99

$

In Stock, only 2 left!

0

10

RedMax 503217010

SCREW CCRPANT

$3.49

$

In Stock, Qty 17

0

11

RedMax 544083001

WEAR GUARD, CHAIN

$6.99

$

In Stock, Qty 19

0

12

RedMax 537043001

BRAKE BAND ASSY

$17.99

$

Usually ships in 3-10 days

0

13

RedMax 503892901

PIN KNEE JOINT

$3.49

$

In Stock, only 1 left!

0

14

RedMax 537397001

SCREW

$13.99

$

Usually ships in 3-10 days

0

15

RedMax 537079402

WORM WHEEL

$14.99

$

In Stock, only 1 left!

0

16

RedMax 740480702

O-RING

$4.99

$

In Stock, Qty 9

0

17

RedMax 503230063

WASHER STEEL

$3.99

$

In Stock, only 2 left!

0

18

RedMax 544376803

LABEL CLUTCH COVER REDMAX

$3.49

$

Usually ships in 3-10 days

0

19

RedMax 503220001

NUT M8 FLANGE

$3.49

$

In Stock, Qty 20+

0
