GZ 500 - RedMax Chainsaw FUEL TANK Parts Diagram

Chainsaw

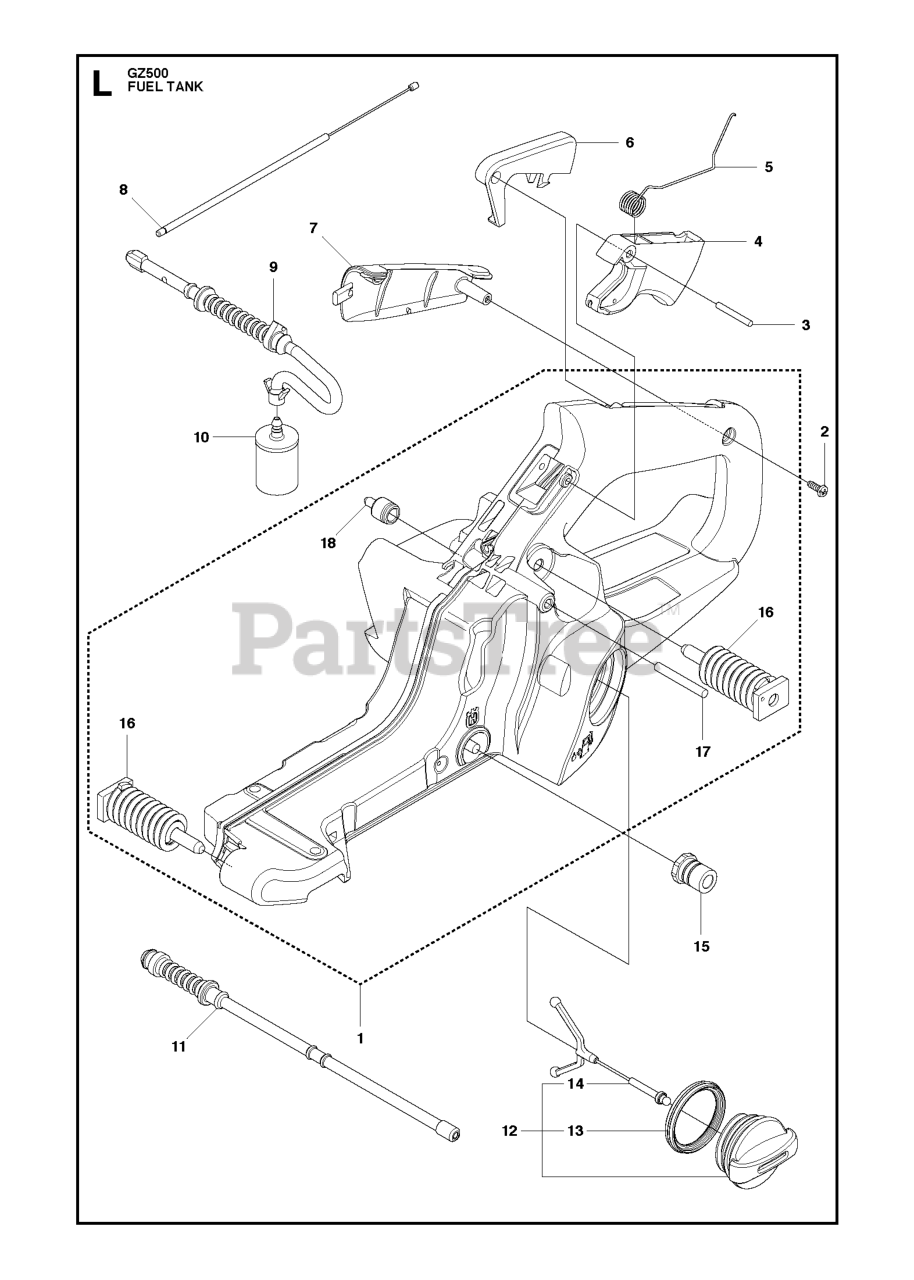

FUEL TANK Parts Diagram

  • Title

1

RedMax 525862105

FUEL TANK ASSY
(Superseded to 537437907)

$113.99

$

Usually ships in 3-10 days

0

2

RedMax 503212810

SCREW CCRPANT

$3.49

$

In Stock, Qty 11

0

3

RedMax 720182520

PIN

$2.99

$

In Stock, Qty 11

0

4

RedMax 544099702

THROTTLE TRIGGER

$6.99

$

Usually ships in 3-10 days

0

5

RedMax 544099901

SPRING

$5.99

$

In Stock, Qty 8

0

6

RedMax 544099802

THROTTLE LOCKOUT

$3.49

$

Usually ships in 3-10 days

0

7

RedMax 504122202

HANDLE INSERT

$3.49

$

In Stock, only 1 left!

0

8

RedMax 504098801

THROTTLE CABLE ASSY

$7.99

$

In Stock, only 2 left!

0

9

RedMax 544128601

FUEL HOSE
(Superseded to 544128604)

$13.99

$

In Stock, Qty 20+

0

10

RedMax 503443201

FUEL FILTER
(Superseded to 591375401)

$10.99

$

In Stock, Qty 20+

0

11

RedMax 577535101

RETURN HOSE

$20.99

$

In Stock, Qty 18

0

12

RedMax 544111204

TANK CAP ASSY
(Superseded to 544111203)

$7.99

$

In Stock, only 1 left!

0

13

RedMax 589241101

SEALING

$6.99

$

In Stock, Qty 5

0

14

RedMax 503578901

TANK LOCK

$5.99

$

In Stock, Qty 10

0

15

RedMax 501007601

LATERAL SUPPORT

$3.49

$

In Stock, only 3 left!

0

16

RedMax 544101201

ANTI VIBRATIONS ELEMENT

$14.99

$

In Stock, only 2 left!

0

17

RedMax 721126339

GROOVED PIN

$3.49

$

Usually ships in 3-10 days

0

18

RedMax 501152901

FUEL TANK VENT

$20.99

$

In Stock, Qty 6
