GZ 5000 - RedMax Chainsaw CARBURETOR DETAILS Parts Diagram

Chainsaw

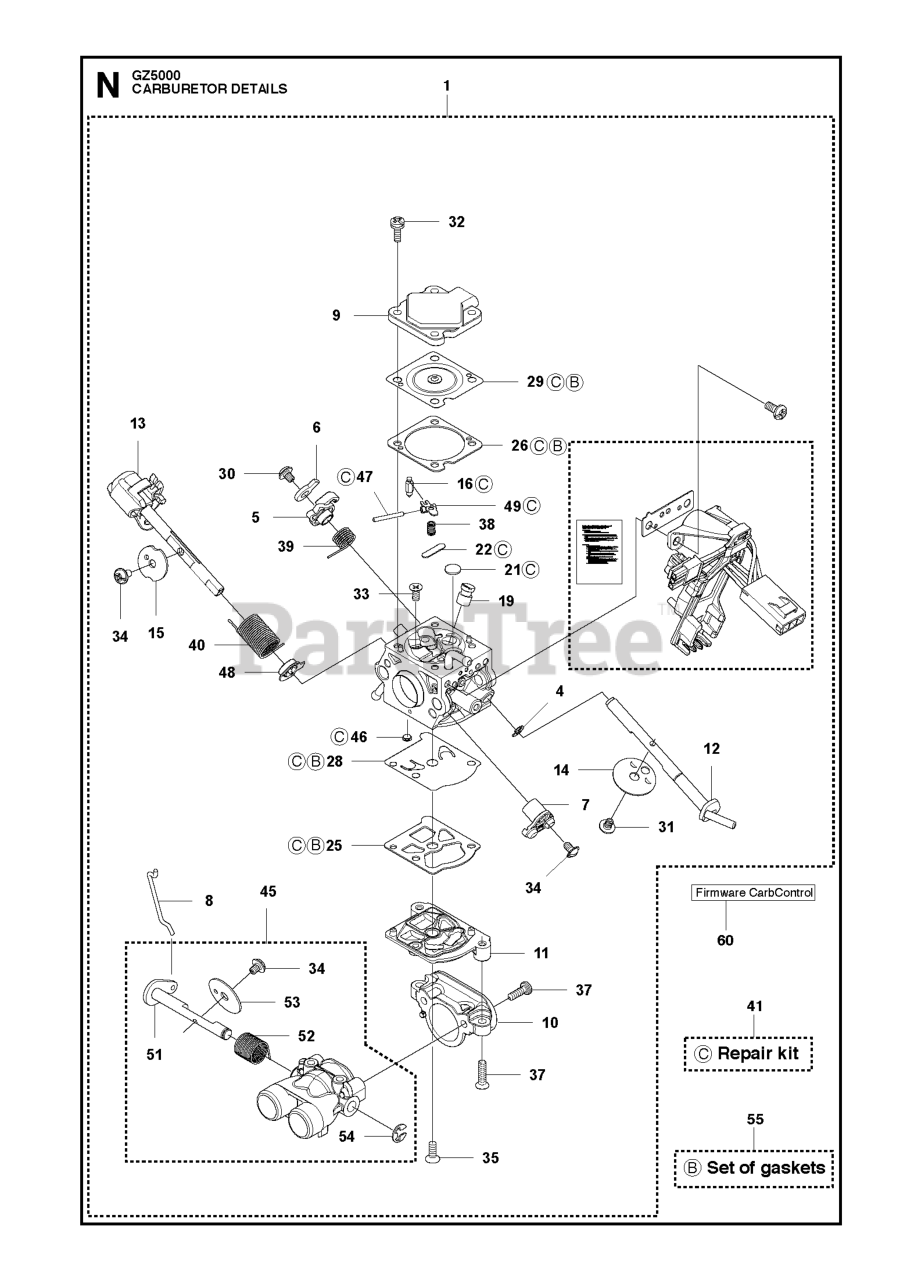

CARBURETOR DETAILS Parts Diagram

  • Title

1

RedMax 587084804

CARBURETTOR KIT
(Superseded to 587084807)

Note: AT-7B

$241.99

$

Usually ships in 3-10 days

0

4

RedMax 577262901

RETAINER

$5.99

$

Usually ships in 3-10 days

0

5

RedMax 574357701

LEVER

$6.99

$

In Stock, only 1 left!

0

6

RedMax 576618501

LEVER

$6.99

$

In Stock, only 1 left!

0

7

RedMax 577219201

THROTTLE LEVER ASSY

$6.99

$

Usually ships in 3-10 days

0

8

RedMax 574357901

LINK

$6.99

$

Usually ships in 3-10 days

0

9

RedMax 574358101

COVER

$7.82

$

Usually ships in 3-10 days

0

10

RedMax 575794801

INLET

$7.99

$

Usually ships in 3-10 days

0

11

RedMax 575794701

COVER

$9.22

$

Usually ships in 3-10 days

0

12

RedMax 574358401

SHAFT ASSY

$34.99

$

Usually ships in 3-10 days

0

13

RedMax 574358201

SHAFT

$11.99

$

Usually ships in 3-10 days

0

14

RedMax 574358501

VALVE

$5.99

$

Usually ships in 3-10 days

0

15

RedMax 574357501

VALVE THROTTLE

$

$

Not available

16

RedMax 503563401

INLET NEEDLE

$6.49

$

In Stock, Qty 12

0

21

RedMax 504790801

PLUG WELCH

$3.99

$

In Stock, Qty 8

0

22

RedMax 502846901

PLUG

$7.49

$

Usually ships in 3-10 days

0

25

RedMax 504130906

GASKET

$4.99

$

In Stock, Qty 5

0

19

RedMax 576618801

NOZZLE ASSY

$12.99

$

Usually ships in 3-10 days

0

26

RedMax 574358601

GASKET

$14.99

$

Usually ships in 3-10 days

0

28

RedMax 577016601

DIAPHRAGM

$10.99

$

Usually ships in 3-10 days

0

29

RedMax 574358801

DIAPHRAGM ASSY

$26.99

$

Usually ships in 3-10 days

0

30

RedMax 501468701

SCREW

$6.49

$

Usually ships in 3-10 days

0

31

RedMax 537003401

SCREW
(Superseded to 501468701)

$6.49

$

Usually ships in 3-10 days

0

32

RedMax 537003101

SCREW

$3.99

$

In Stock, only 3 left!

0

33

RedMax 502847101

SCREW

$4.99

$

In Stock, only 3 left!

0

34

RedMax 544111501

SCREW

$6.49

$

Usually ships in 3-10 days

0

35

RedMax 574359001

SCREW

$4.99

$

Usually ships in 3-10 days

0

37

RedMax 576618901

SCREW

$5.99

$

Usually ships in 3-10 days

0

38

RedMax 503562401

SPRING

$4.99

$

In Stock, only 4 left!

0

39

RedMax 574359301

SPRING

$6.99

$

In Stock, only 1 left!

0

40

RedMax 574359401

SPRING

$4.99

$

Usually ships in 3-10 days

0

41

RedMax 577666101

REPAIR KIT

$35.99

$

Usually ships in 3-10 days

0

45

RedMax 579323101

THROTTLE VALVE ASSY

$28.99

$

Usually ships in 3-10 days

0

46

RedMax 501666101

FUEL INLET SCREEN

$6.99

$

Usually ships in 3-10 days

0

47

RedMax 505520125

FULCRUM PIN

$3.49

$

In Stock, only 3 left!

0

48

RedMax 574359601

BUSHING

$28.99

$

In Stock, only 1 left!

0

49

RedMax 502847401

LEVER

$7.49

$

Usually ships in 3-10 days

0

51

RedMax 586767401

SHAFT ASSY AIR THROTTLE

$27.99

$

Usually ships in 3-10 days

0

52

RedMax 574357601

SPRING

$5.58

$

Usually ships in 3-10 days

0

53

RedMax 576619001

VALVE

$5.76

$

Usually ships in 3-10 days

0

54

RedMax 503799501

CLIP

$5.99

$

Usually ships in 3-10 days

0

55

RedMax 576666501

GASKET KIT

$29.99

$

Usually ships in 3-10 days

0

60

NA

Note: Download from your local supportsite

$

$

Not available
