GZ 5000 - RedMax Chainsaw CRANKCASE Parts Diagram

Chainsaw

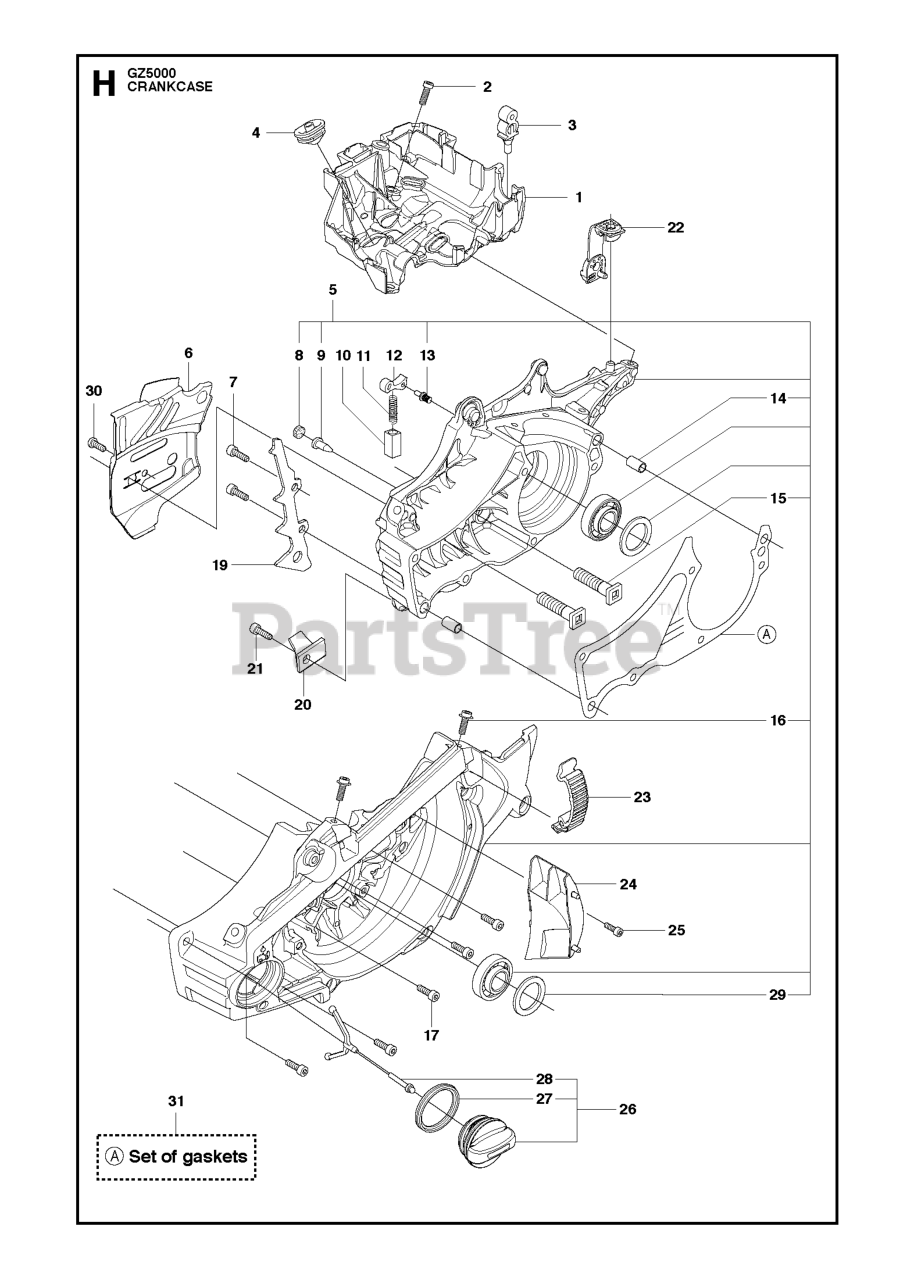

CRANKCASE Parts Diagram

  • Title

1

RedMax 525403202

CARBURETTOR AREA BASE ASSY

$22.99

$

Usually ships in 3-10 days

0

2

RedMax 525755202

SCREW ITXSCFM

$3.49

$

Usually ships in 3-10 days

0

3

RedMax 503869301

CARBURETOR MOUNTING
(Superseded to 597909701)

$6.99

$

In Stock, only 2 left!

0

4

RedMax 581559201

GROMMET

$6.99

$

Usually ships in 3-10 days

0

5

RedMax 577834712

CRANKCASE ASSY

$

$

Not available

6

RedMax 522742801

CHAIN GUIDE PLATE

$13.99

$

Usually ships in 3-10 days

0

7

RedMax 575793501

SCREW ITXPANM M5X16 T27 10.9

$3.49

$

Usually ships in 3-10 days

0

8

RedMax 537403501

FILTER
(Superseded to 537403502)

$3.49

$

In Stock, Qty 10

0

9

RedMax 530026119

VALVE-CHECK (DUCKBILL)

$5.99

$

In Stock, Qty 20+

0

10

RedMax 537210701

SPRING GUIDE

$3.49

$

Usually ships in 3-10 days

0

11

RedMax 503436501

POSITION SPRING

$3.49

$

Usually ships in 3-10 days

0

12

RedMax 505201201

CATCH

$5.99

$

Usually ships in 3-10 days

0

13

RedMax 503751801

PIN

$3.49

$

In Stock, only 2 left!

0

14

RedMax 501270801

GUIDE BUSHING
(Superseded to 593806001)

$8.99

$

In Stock, only 1 left!

0

15

RedMax 505217301

BAR BOLT

$5.99

$

In Stock, only 3 left!

0

16

RedMax 525824401

SCREW ITXSCM WASHER M5X12 T27

$8.99

$

Usually ships in 3-10 days

0

17

RedMax 575841104

SCREW ITXSCM M5X25 12.9 TBO T

$3.49

$

Usually ships in 3-10 days

0

19

RedMax 578400501

SPIKE

$7.99

$

Usually ships in 3-10 days

0

20

RedMax 537377902

CHAIN CATCHER

$7.99

$

In Stock, Qty 7

0

21

RedMax 525798103

SCREW

$3.49

$

Usually ships in 3-10 days

0

22

RedMax 505125801

DEFLECTION LIMITER

$6.99

$

Usually ships in 3-10 days

0

23

RedMax 503894702

BUCKLE

$13.99

$

In Stock, only 2 left!

0

24

RedMax 525417401

AIR NOZZLE
(Superseded to 588059201)

$7.99

$

Usually ships in 3-10 days

0

25

RedMax 526818101

SCREW ITXSCM M4X15 T27 12.9 T

$3.49

$

In Stock, only 2 left!

0

26

RedMax 505415206

TANK CAP ASSY

$13.99

$

In Stock, only 2 left!

0

27

RedMax 589241301

GASKET TANK CAP

$5.99

$

Usually ships in 3-10 days

0

28

RedMax 503578903

HOLDER
(Superseded to 503578901)

$5.99

$

In Stock, Qty 10

0

29

RedMax 525391201

RADIAL SEAL

$20.99

$

In Stock, only 2 left!

0

30

RedMax 525887401

SCREW CITXPANT
(Superseded to 503212813)

$3.49

$

In Stock, only 2 left!

0

31

RedMax 577766603

GASKET KIT 50CC

Note: A=set of gaskets

$20.99

$

In Stock, only 1 left!

0
