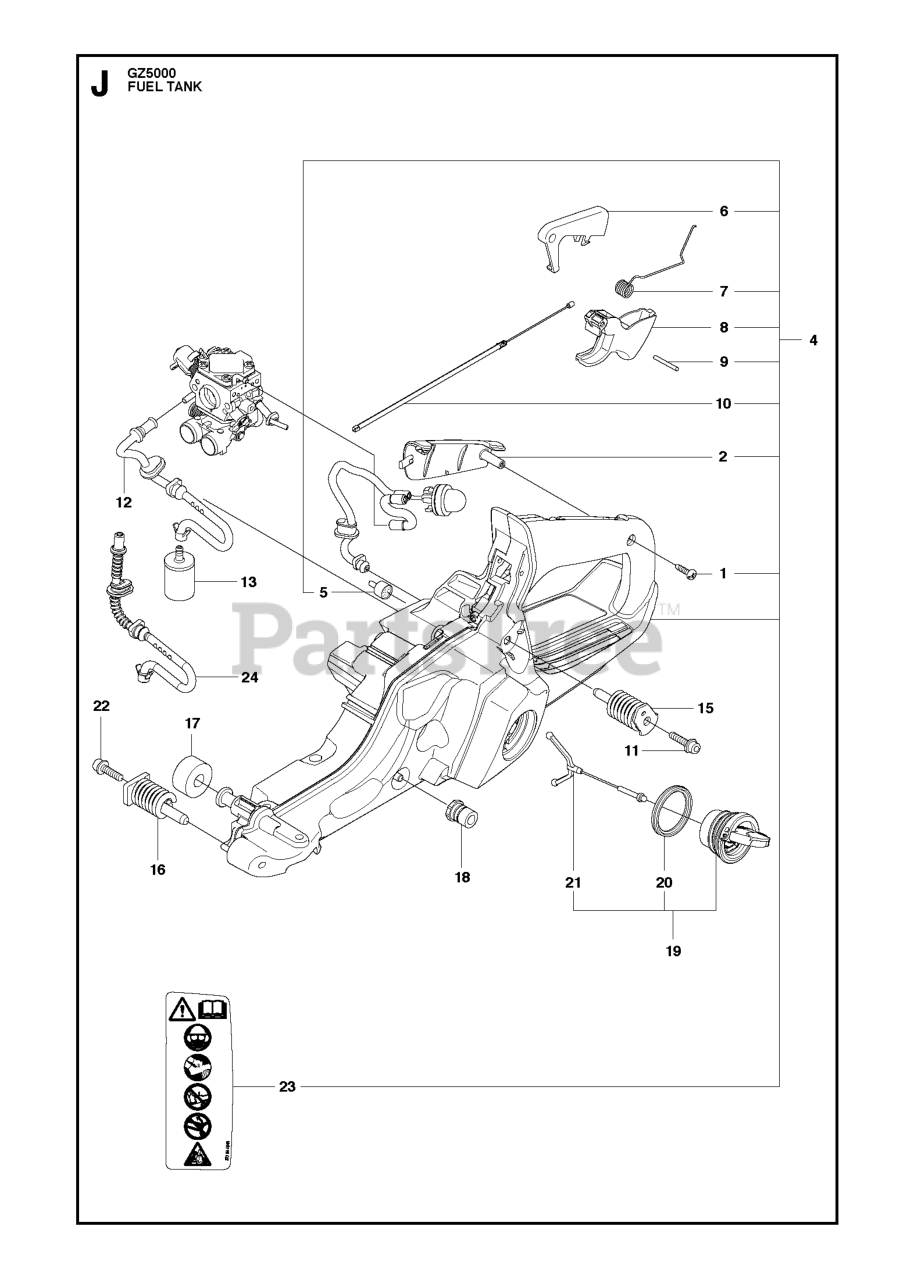

GZ 5000 - RedMax Chainsaw FUEL TANK Parts Diagram

Chainsaw

FUEL TANK Parts Diagram

  • Title

1

RedMax 525887401

SCREW CITXPANT
(Superseded to 503212813)

$3.49

$

In Stock, only 2 left!

0

2

RedMax 504106302

HANDLE INSERT

$5.99

$

Usually ships in 3-10 days

0

4

RedMax 580887102

FUEL TANK ASSY

$125.99

$

Usually ships in 3-10 days

0

5

RedMax 501152901

FUEL TANK VENT

$20.99

$

In Stock, Qty 6

0

6

RedMax 544099802

THROTTLE LOCKOUT

$3.49

$

Usually ships in 3-10 days

0

7

RedMax 544099901

SPRING

$5.99

$

In Stock, Qty 8

0

8

RedMax 505157702

THROTTLE

$6.99

$

Usually ships in 3-10 days

0

9

RedMax 720182520

PIN

$2.99

$

In Stock, Qty 11

0

10

RedMax 579482401

THROTTLE CABLE ASSY

$22.99

$

Usually ships in 3-10 days

0

11

RedMax 525798102

SCREW ITXSCFT

$3.49

$

In Stock, only 1 left!

0

12

RedMax 573993503

FUEL HOSE

Note: Up to AT-7A

$13.99

$

In Stock, only 1 left!

0

13

RedMax 503443201

FUEL FILTER
(Superseded to 591375401)

$10.99

$

In Stock, Qty 20+

0

15

RedMax 578227403

ANTIVIBRATION ELEMENT WITH DEF

$17.99

$

Usually ships in 3-10 days

0

16

RedMax 505128702

ANTIVIBRATION ELEMENT FRONT

$17.99

$

Usually ships in 3-10 days

0

17

RedMax 523085501

DEFLECTION LIMITER

$9.49

$

In Stock, only 2 left!

0

18

RedMax 501007601

LATERAL SUPPORT

$3.49

$

In Stock, only 2 left!

0

19

RedMax 544111204

TANK CAP ASSY
(Superseded to 544111203)

$7.99

$

In Stock, only 1 left!

0

20

RedMax 589241101

SEALING

$6.99

$

In Stock, Qty 5

0

21

RedMax 503578903

HOLDER
(Superseded to 503578901)

$5.99

$

In Stock, Qty 10

0

22

RedMax 525798103

SCREW

$3.49

$

In Stock, only 2 left!

0

23

RedMax 577844301

DECAL

$4.99

$

Usually ships in 3-10 days

0

24

RedMax 577504101

FUEL HOSE
(Superseded to 529578202)

Note: From AT-7B

$20.99

$

In Stock, only 2 left!
