GZ 5000 - RedMax Chainsaw IGNITION SYSTEM Parts Diagram

Chainsaw

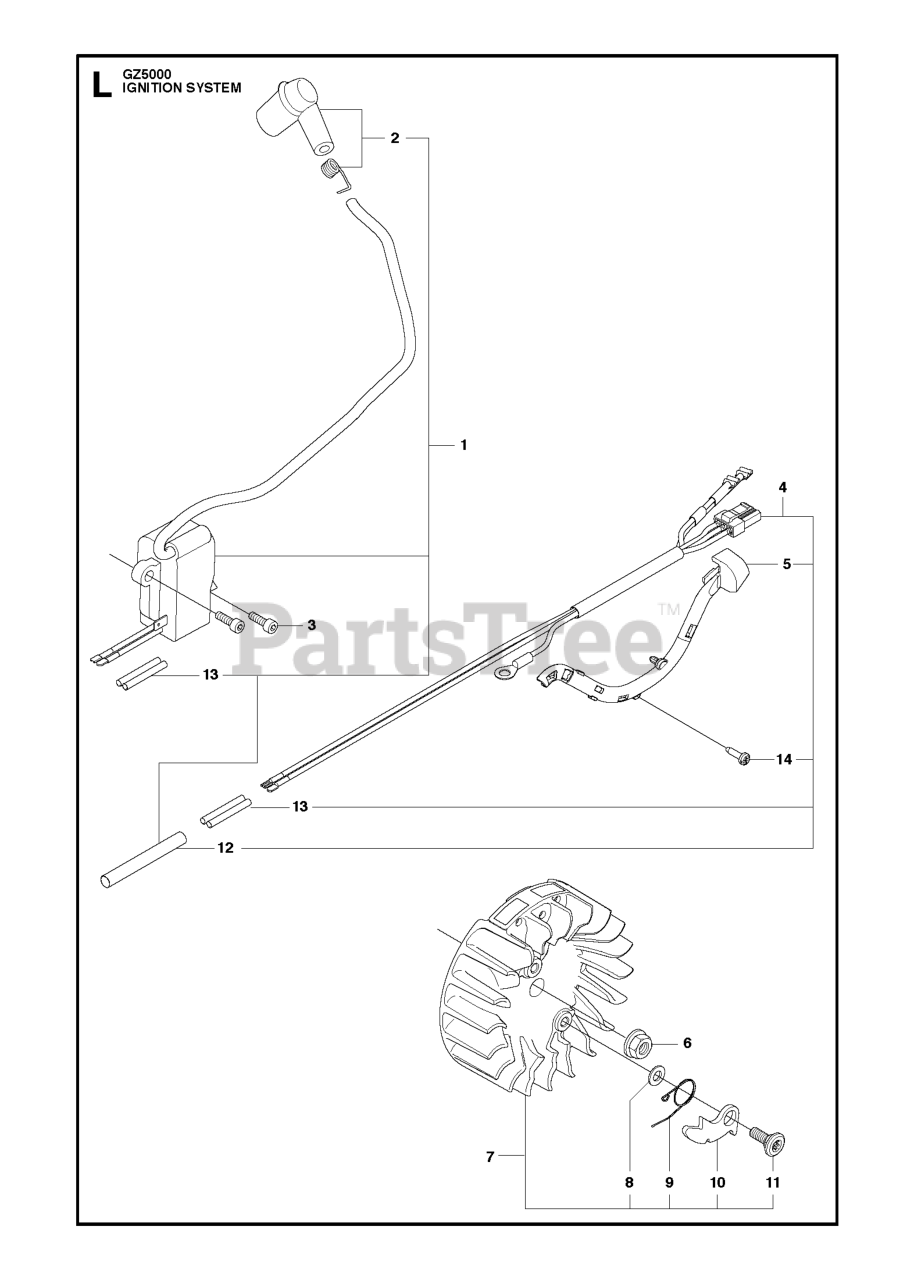

IGNITION SYSTEM Parts Diagram

  • Title

1

RedMax 581723702

IGNITION MODULE ASSY

$182.99

$

Usually ships in 3-10 days

0

2

RedMax 501485404

SPARK PLUG CAP ASSY

$17.99

$

Usually ships in 3-10 days

0

3

RedMax 525755203

SCREW ITXSCFM

$5.99

$

Usually ships in 3-10 days

0

4

RedMax 575430601

WIRING ASSY

$68.99

$

Usually ships in 3-10 days

0

5

RedMax 505178201

CABLE HOLDER

$5.99

$

Usually ships in 3-10 days

0

6

RedMax 503220401

NUT W/ WASHER

$7.49

$

In Stock, Qty 6

0

7

RedMax 522937803

FLYWHEEL ASSY

$

$

Not available

8

RedMax 503230042

WASHER STEEL

$6.49

$

In Stock, Qty 16

0

9

RedMax 501673501

SPRING

$7.49

$

In Stock, Qty 20+

0

10

RedMax 501673201

PAWL

$8.99

$

In Stock, Qty 14

0

11

RedMax 506006901

SCREW
(Superseded to 501819901)

$6.49

$

In Stock, Qty 8

0

12

RedMax 504043505

CABLE COVER

$6.99

$

Usually ships in 3-10 days

0

13

RedMax 503238501

SHRINK HOSE

$6.99

$

Usually ships in 3-10 days

0

14

RedMax 525887401

SCREW CITXPANT
(Superseded to 503212813)

$6.49

$

In Stock, only 2 left!

0
