GZ 550 - RedMax Chainsaw CARBURETOR & AIR FILTER Parts Diagram

Chainsaw

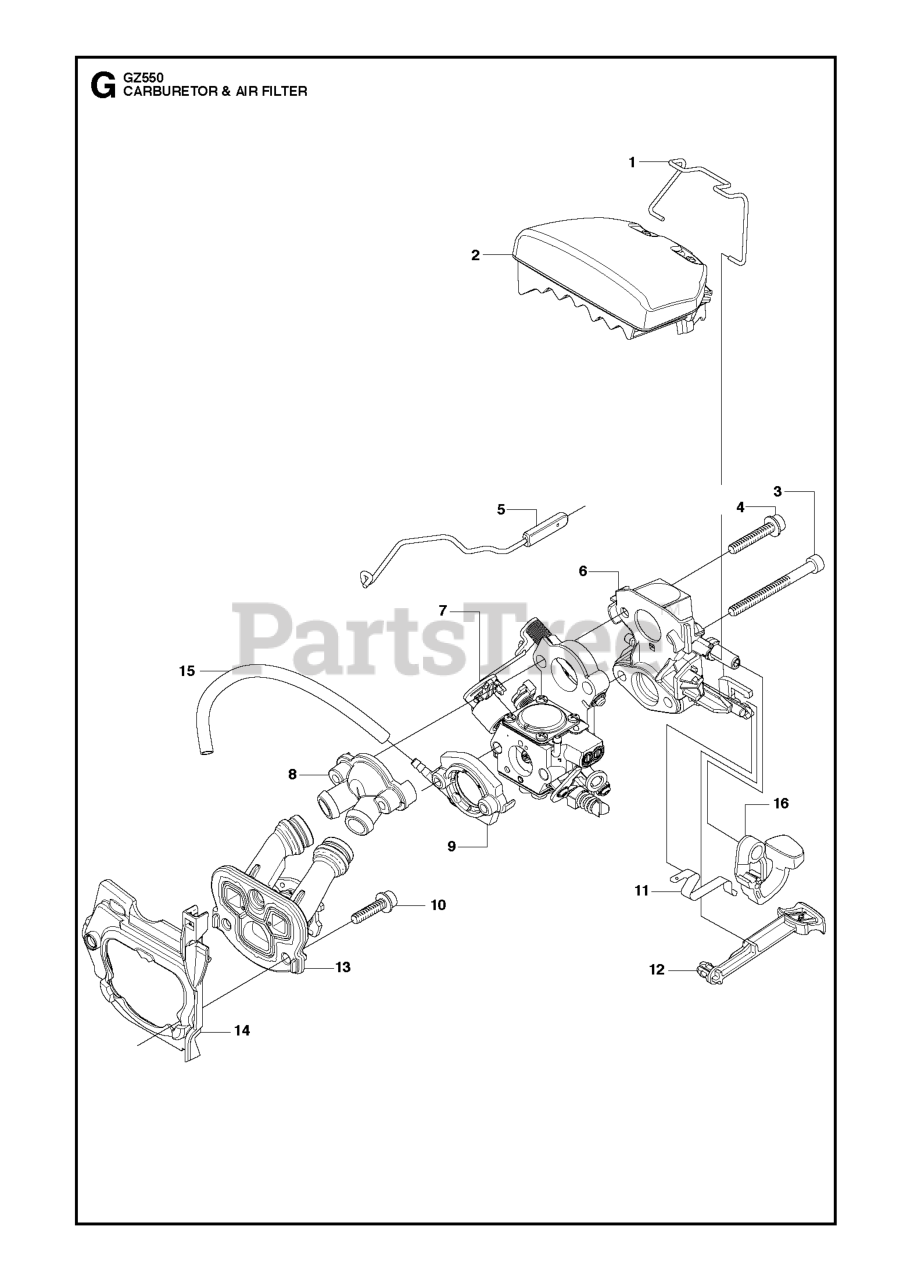

CARBURETOR & AIR FILTER Parts Diagram

  • Title

1

RedMax 537304901

LOOP

$3.49

$

In Stock, only 2 left!

0

2

RedMax 537255701

AIR FILTER

Note: µ80

$17.99

$

In Stock, only 2 left!

0

2

RedMax 537255702

AIR FILTER

Note: µ44

$37.99

$

In Stock, only 3 left!

0

2

RedMax 537255703

AIR FILTER

Note: FELT

$28.99

$

In Stock, Qty 9

0

3

RedMax 503217450

SCREW

$3.49

$

In Stock, only 4 left!

0

4

RedMax 503215525

SCREW

$3.49

$

In Stock, Qty 11

0

5

RedMax 537260802

THROTTLE ROD

$17.99

$

In Stock, only 2 left!

0

6

RedMax 537323001

FILTER HOLDER
(Superseded to 544011101)

$11.99

$

Usually ships in 3-10 days

0

7

RedMax 544883001

CARBURETOR

Note: WALBRO, WTEA-1

$

$

Not available

8

RedMax 537241401

BELLOWS

$13.99

$

In Stock, only 3 left!

0

9

RedMax 537241501

FLANGE

$6.99

$

In Stock, Qty 6

0

10

RedMax 503200216

SCREW

$3.49

$

In Stock, Qty 20+

0

11

RedMax 503869702

SHORT CIRCUIT SPRING

$3.49

$

In Stock, only 1 left!

0

12

RedMax 537255601

CHOKE CONTROL

$9.49

$

In Stock, Qty 5

0

13

RedMax 537321002

INDUCTION MANIFOLD

$31.99

$

In Stock, only 1 left!

0

14

RedMax 537371401

PARTITION

$6.99

$

Usually ships in 3-10 days

0

15

RedMax 503400610

FUEL HOSE

$6.99

$

In Stock, only 2 left!

0

16

RedMax 537255501

STOP LEVER

$6.99

$

In Stock, only 1 left!

0
