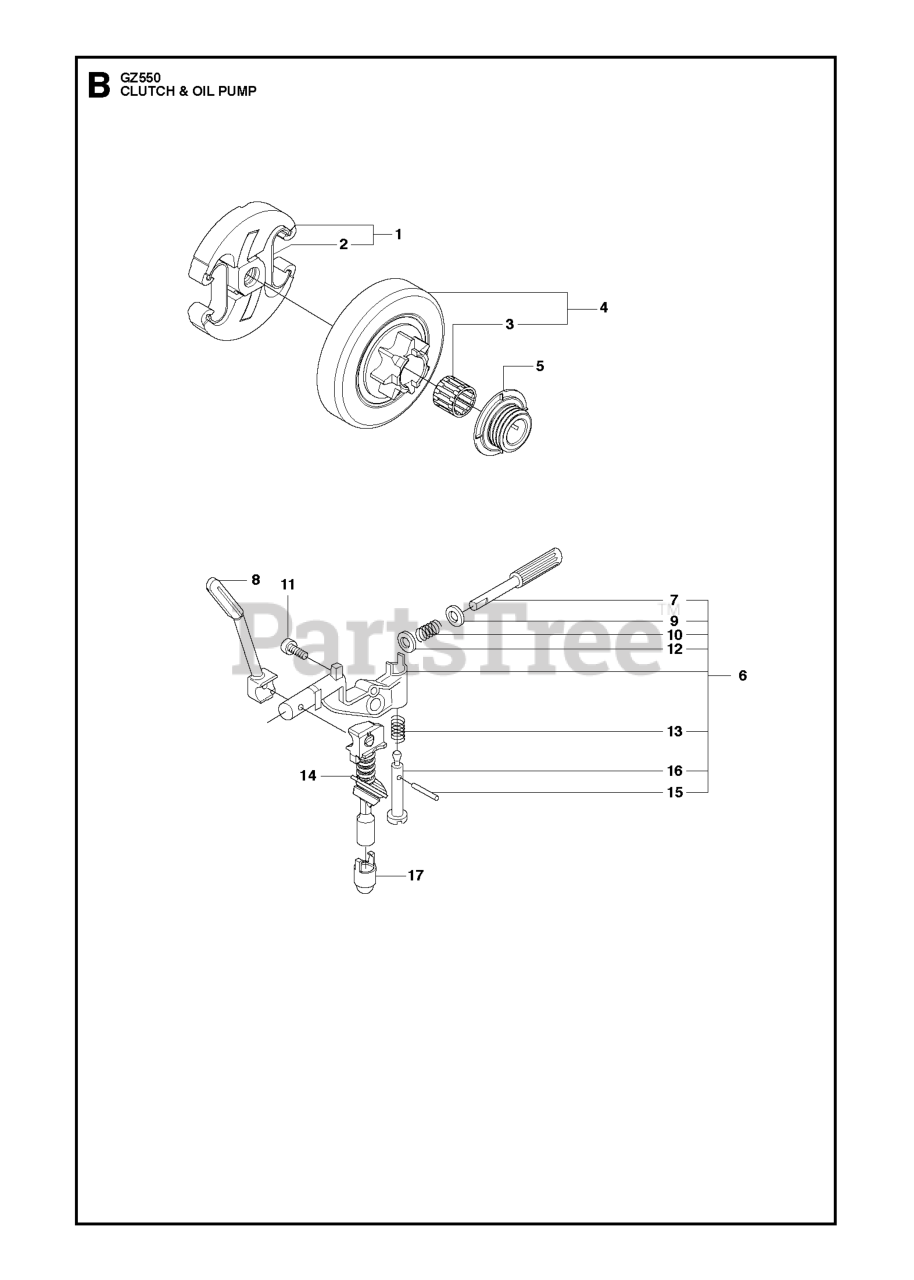

GZ 550 - RedMax Chainsaw CLUTCH & OIL PUMP Parts Diagram

Chainsaw

CLUTCH & OIL PUMP Parts Diagram

  • Title

1

RedMax 537110503

CLUTCH ASSY

$45.99

$

In Stock, Qty 18

0

2

RedMax 537359101

SPRING

$7.49

$

In Stock, Qty 15

0

3

RedMax 503255201

NEEDLE BEARING

$

$

Not available

4

RedMax 537291702

CLUTCH DRUM

Note: ".325""x7 SPUR"

$33.99

$

In Stock, only 3 left!

0

4

RedMax 537291604

CLUTCH DRUM

Note: "3/8""x7 SPUR"

$35.99

$

In Stock, Qty 7

0

5

RedMax 537252601

GEAR WORM OILER
(Superseded to 598718301)

$14.99

$

In Stock, Qty 9

0

6

RedMax 544180104

OIL PUMP ASSY

$45.99

$

In Stock, only 4 left!

0

7

RedMax 537069302

PUMP PISTON

$20.99

$

In Stock, only 2 left!

0

8

RedMax 537261501

OIL HOSE

$13.99

$

In Stock, only 2 left!

0

9

RedMax 503230060

WASHER STEEL

$2.49

$

In Stock, only 1 left!

0

10

RedMax 503891601

SPRING

$8.49

$

In Stock, only 3 left!

0

11

RedMax 503217416

SCREW

$4.99

$

In Stock, Qty 6

0

12

RedMax 503230060

WASHER STEEL

$2.49

$

In Stock, only 1 left!

0

13

RedMax 503891501

SPRING

$5.99

$

In Stock, Qty 7

0

14

RedMax 585514001

OIL HOSE

$7.49

$

In Stock, Qty 11

0

15

RedMax 721116430

PIN

$4.99

$

In Stock, only 1 left!

0

16

RedMax 537027101

ADJUSTER

$9.99

$

In Stock, only 1 left!

0

17

RedMax 510044301

OIL SCREEN

$5.99

$

In Stock, only 2 left!

0
