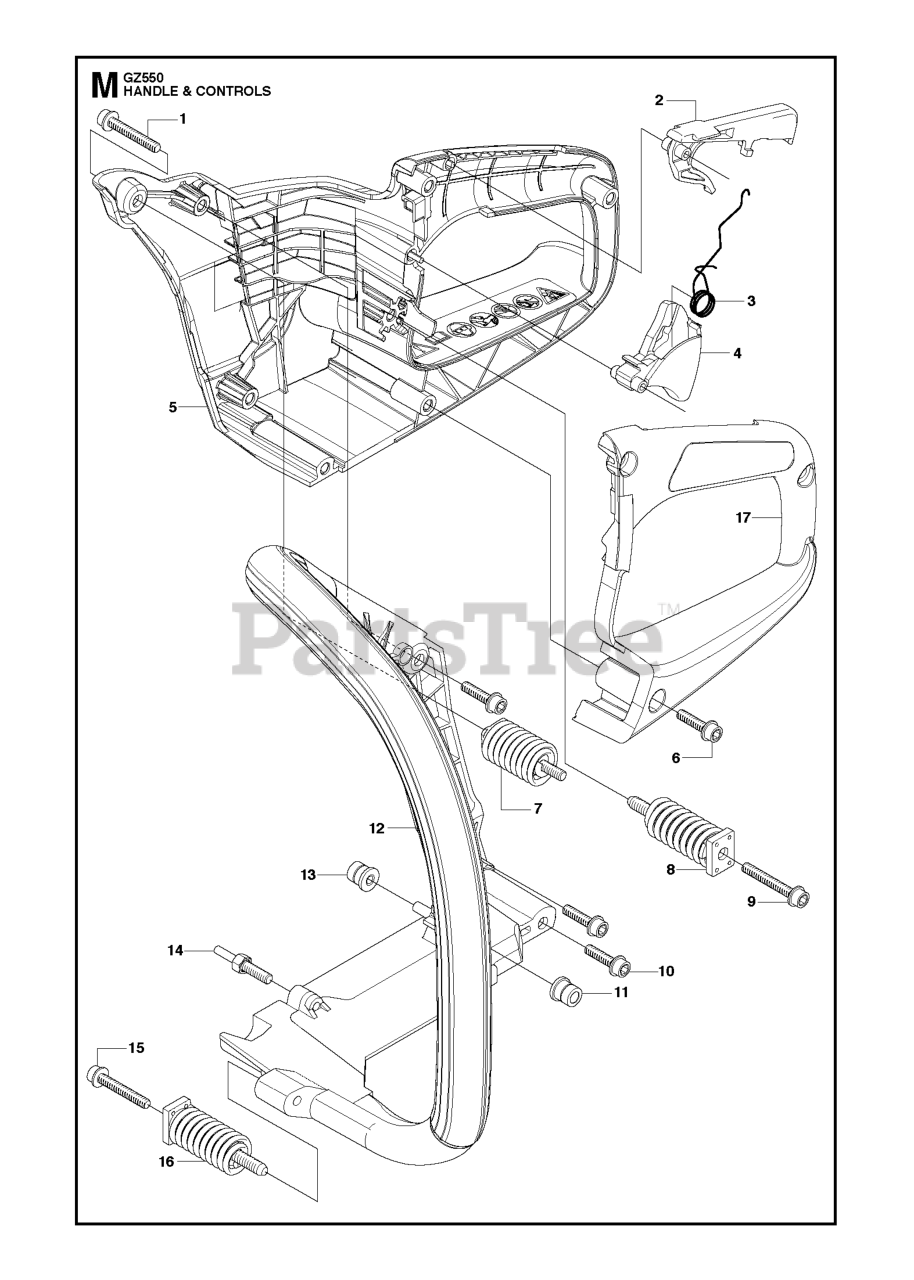

GZ 550 - RedMax Chainsaw HANDLE & CONTROLS Parts Diagram

Chainsaw

HANDLE & CONTROLS Parts Diagram

  • Title

1

RedMax 503218876

SCREW

$5.99

$

In Stock, Qty 9

0

2

RedMax 502440202

THROTTLE LOCKOUT

$13.99

$

In Stock, Qty 8

0

3

RedMax 503998601

RECOIL SPRING

$9.49

$

In Stock, Qty 6

0

4

RedMax 537260504

THROTTLE TRIGGER

$6.99

$

In Stock, Qty 6

0

5

RedMax 577908202

REAR HANDLE
(Superseded to 537230602)

$35.99

$

In Stock, only 2 left!

0

6

RedMax 503210270

SCREW

$3.49

$

In Stock, Qty 20+

0

7

RedMax 537304601

VIBRATIONS ABSORBER

$17.99

$

In Stock, only 4 left!

0

8

RedMax 503854101

ANTI-VIBRATION ELEMENT

$21.99

$

In Stock, Qty 5

0

9

RedMax 503218876

SCREW

$5.99

$

In Stock, Qty 9

0

10

RedMax 503210270

SCREW

$3.49

$

In Stock, Qty 20+

0

11

RedMax 503869201

MOVEMENT LIMITER

$9.99

$

In Stock, only 2 left!

0

12

RedMax 501987201

FRONT HANDLE

$62.99

$

Usually ships in 3-10 days

0

13

RedMax 503869201

MOVEMENT LIMITER

$9.99

$

In Stock, only 2 left!

0

14

RedMax 537242901

PIN

$3.99

$

Usually ships in 3-10 days

0

15

RedMax 503218876

SCREW

$5.99

$

In Stock, Qty 9

0

16

RedMax 503923101

SPRING

$20.99

$

Usually ships in 3-10 days

0

17

RedMax 537230702

CAP

$22.99

$

In Stock, only 2 left!

0
