GZ 7000 - RedMax Chainsaw (2008-12) CLUTCH Parts Diagram

Chainsaw

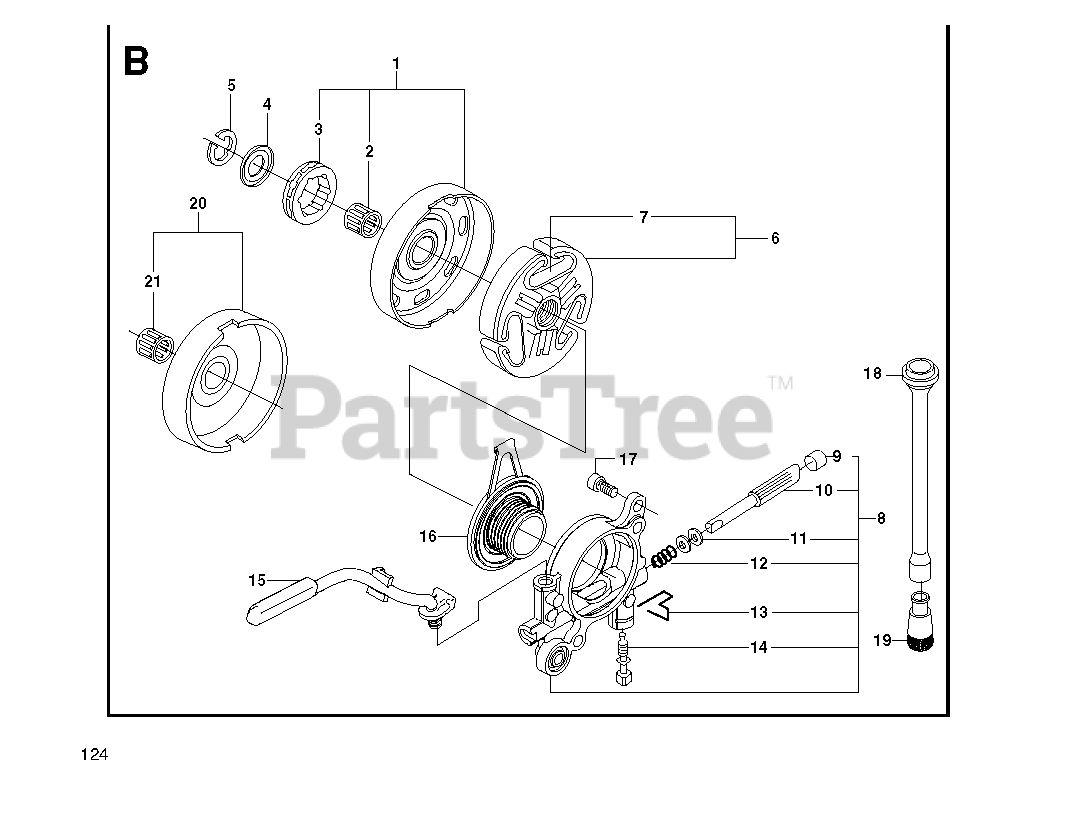

CLUTCH Parts Diagram

  • Title

1

RedMax 502440402

CLUTCH DRUM ASSY
(Superseded to 504547202)

$56.99

$

Usually ships in 3-10 days

0

1

RedMax 502440403

CLUTCH DRUM ASSY
(Superseded to 504547203)

$62.99

$

Usually ships in 3-10 days

0

2

RedMax 503432001

CLUTCH DRUM BEARING

$17.99

$

In Stock, Qty 13

0

3

RedMax 501598002

68210 RIMSPROCKET
(Superseded to 640200215)

$9.49

$

In Stock, Qty 5

0

3

RedMax 505303661

Power Mate Rim
(Superseded to 608000112)

$

$

Not available

4

RedMax 503752401

WASHER

$4.99

$

In Stock, Qty 20+

0

5

RedMax 503272101

RETAINING RING

$1.99

$

In Stock, Qty 20+

0

6

RedMax 503744405

CLUTCH
(Superseded to 586798402)

Note: . 9 10 11 12 13 14

$148.99

$

In Stock, only 2 left!

0

7

RedMax 537360601

SPRING

$5.99

$

Usually ships in 3-10 days

0

8

RedMax 503521303

OIL PUMP
(Superseded to 503521305)

$102.99

$

In Stock, only 2 left!

0

9

RedMax 503624901

PLUG

$6.99

$

In Stock, only 2 left!

0

10

RedMax 503521501

PUMP PISTON

$20.99

$

Usually ships in 3-10 days

0

11

RedMax 503230004

WASHER 6.1X9

$2.49

$

In Stock, only 2 left!

0

12

RedMax 501615801

SPRING

$6.99

$

Usually ships in 3-10 days

0

13

RedMax 503813001

SPRING CLIP

$3.49

$

In Stock, only 2 left!

0

14

RedMax 503811301

SCREW

$3.49

$

In Stock, only 2 left!

0

15

RedMax 537209101

HOSE

$13.99

$

In Stock, only 2 left!

0

16

RedMax 537207804

PINION
(Superseded to 582270104)

$13.99

$

In Stock, only 4 left!

0

17

RedMax 503205301

SCREW

$

$

Not available

18

RedMax 501895301

HOSE.

$13.99

$

In Stock, only 2 left!

0

19

RedMax 501544102

OIL SCREEN

$20.99

$

In Stock, only 2 left!

0

20

RedMax 503861703

CLUTCH DRUM

Note: . 21

$56.99

$

In Stock, only 1 left!

0

21

RedMax 503432001

CLUTCH DRUM BEARING

$17.99

$

In Stock, Qty 13

0
