GZ 7000 - RedMax Chainsaw (2008-12) CONTROLS Parts Diagram

Chainsaw

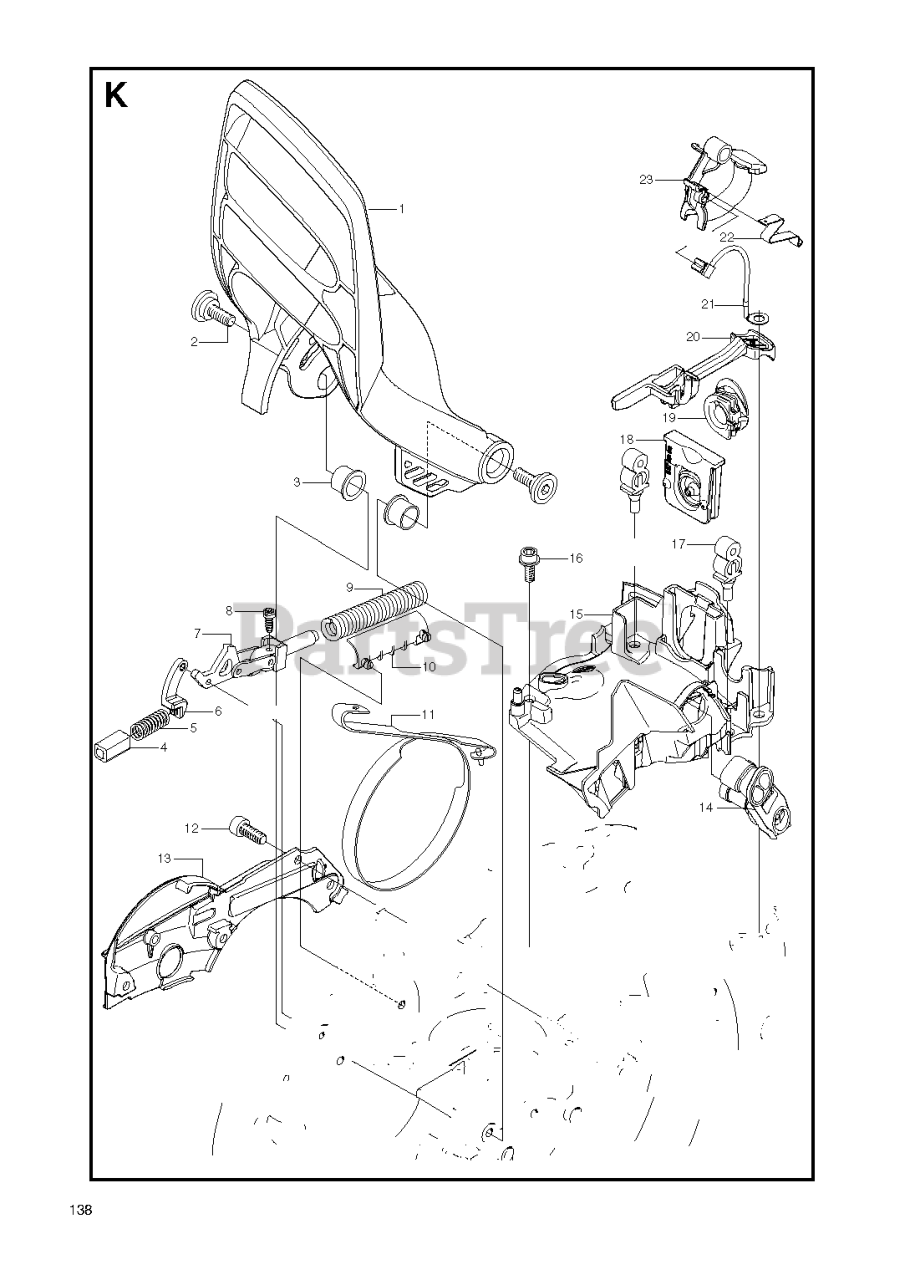

CONTROLS Parts Diagram

  • Title

1

RedMax 505259801

HAND GUARD

$66.99

$

Usually ships in 3-10 days

0

2

RedMax 537209001

SCREW

$7.49

$

In Stock, Qty 11

0

3

RedMax 537202801

BUSHING

$9.99

$

In Stock, Qty 13

0

4

RedMax 537210701

GUIDE

$7.49

$

In Stock, only 1 left!

0

5

RedMax 503436501

LOCK SPRING

$7.49

$

In Stock, Qty 14

0

6

RedMax 537203101

LEVER

$13.99

$

In Stock, only 1 left!

0

7

RedMax 501875304

KNEE JOINT

$40.99

$

Usually ships in 3-10 days

0

8

RedMax 503212810

SCREW

$3.99

$

In Stock, Qty 20+

0

9

RedMax 503709901

BRAKE SPRING
(Superseded to 503709902)

$12.99

$

In Stock, only 4 left!

0

10

RedMax 503792701

%SUPPORT
(Superseded to 503792702)

$7.99

$

In Stock, Qty 11

0

11

RedMax 503752202

BRAKE BAND

$21.99

$

In Stock, Qty 7

0

12

RedMax 503217072

SCREW

$6.49

$

Usually ships in 3-10 days

0

13

RedMax 537203201

LOCK

$17.99

$

Usually ships in 3-10 days

0

14

RedMax 537203601

SLEEVE

$9.99

$

In Stock, only 1 left!

0

15

RedMax 537203503

CARBURETOR AREA BAS G

$16.76

$

Usually ships in 3-10 days

0

16

RedMax 503200712

SCREW

$7.49

$

In Stock, Qty 20+

0

17

RedMax 503869301

SUPPORT

$8.49

$

Usually ships in 3-10 days

0

18

RedMax 537203801

GROMMET

$7.82

$

Usually ships in 3-10 days

0

19

RedMax 537205301

SEALING

$7.99

$

Usually ships in 3-10 days

0

20

RedMax 537205202

CHOKE CONTROL

$4.99

$

Usually ships in 3-10 days

0

21

RedMax 537208701

CABLE

$9.99

$

In Stock, Qty 7

0

22

RedMax 503869702

SPRING

$7.49

$

In Stock, Qty 11

0

23

RedMax 537205102

STOP CONTROL

$9.49

$

Usually ships in 3-10 days

0
