GZ 7100 - RedMax Chainsaw (2017-10) CLUTCH OIL PUMP Parts Diagram

Chainsaw

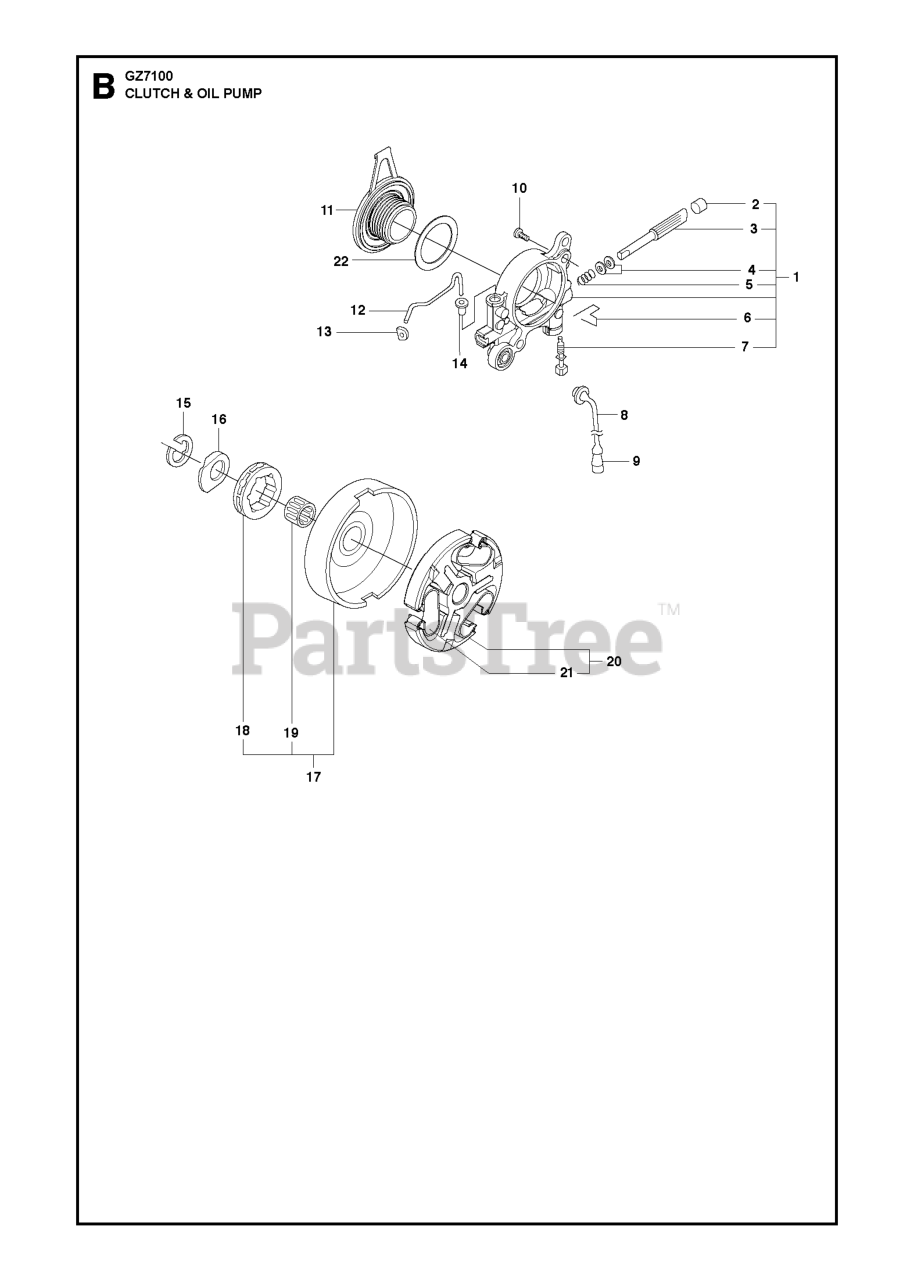

CLUTCH OIL PUMP Parts Diagram

  • Title

1

RedMax 503521303

OIL PUMP
(Superseded to 503521305)

$109.99

$

In Stock, Qty 8

0

2

RedMax 503624901

PLUG

Note: . 1

$8.99

$

Usually ships in 3-10 days

0

3

RedMax 503521501

PUMP PISTON

Note: . 1

$24.99

$

Usually ships in 3-10 days

0

4

RedMax 503230004

WASHER 6.1X9

Note: . 1

$7.49

$

Usually ships in 3-10 days

0

5

RedMax 501615801

SPRING

Note: . 1

$6.49

$

Usually ships in 3-10 days

0

6

RedMax 503813001

SPRING CLIP

Note: . 1

$7.49

$

In Stock, only 2 left!

0

7

RedMax 503811301

SCREW

Note: . 1

$7.49

$

In Stock, only 2 left!

0

8

RedMax 503426701

OIL HOSE

$18.99

$

In Stock, only 3 left!

0

9

RedMax 501544102

OIL SCREEN

$17.99

$

In Stock, Qty 5

0

10

RedMax 525824912

SCREW ITXSCM M5X16 T27 12.9 T

$6.49

$

Usually ships in 3-10 days

0

11

RedMax 537207807

PUMP PINION

$21.99

$

Usually ships in 3-10 days

0

12

RedMax 503774301

PIPE

$17.99

$

In Stock, only 2 left!

0

13

RedMax 503644701

GROMMET

$10.99

$

In Stock, only 1 left!

0

14

RedMax 504300026

SEAL

$6.99

$

In Stock, Qty 10

0

15

RedMax 503272101

RETAINING RING

$3.99

$

In Stock, Qty 20+

0

16

RedMax 503752401

WASHER

$6.49

$

In Stock, Qty 20+

0

17

RedMax 586980601

CLUTCH DRUM ASSY

Note: 3 /8 x7T

$78.99

$

In Stock, Qty 5

0

17

RedMax 586980602

CLUTCH DRUM ASSY

Note: 3 /8 x8T

$67.99

$

Usually ships in 3-10 days

0

18

RedMax 501598002

68210 RIMSPROCKET
(Superseded to 640200215)

Note: 3 /8 x7T. 17

$8.49

$

In Stock, Qty 20+

0

18

RedMax 505303661

Power Mate Rim
(Superseded to 608000112)

Note: 3 /8 x8T. 17

$

$

Not available

19

RedMax 503432001

CLUTCH DRUM BEARING

Note: . 17

$15.99

$

In Stock, Qty 20+

0

20

RedMax 586798401

CLUTCH ASSY M14X1.25-6H

$136.99

$

In Stock, only 1 left!

0

21

RedMax 537360601

SPRING

Note: . 20

$7.49

$

Usually ships in 3-10 days

0

22

RedMax 503230059

WASHER

$6.99

$

In Stock, only 1 left!

0
