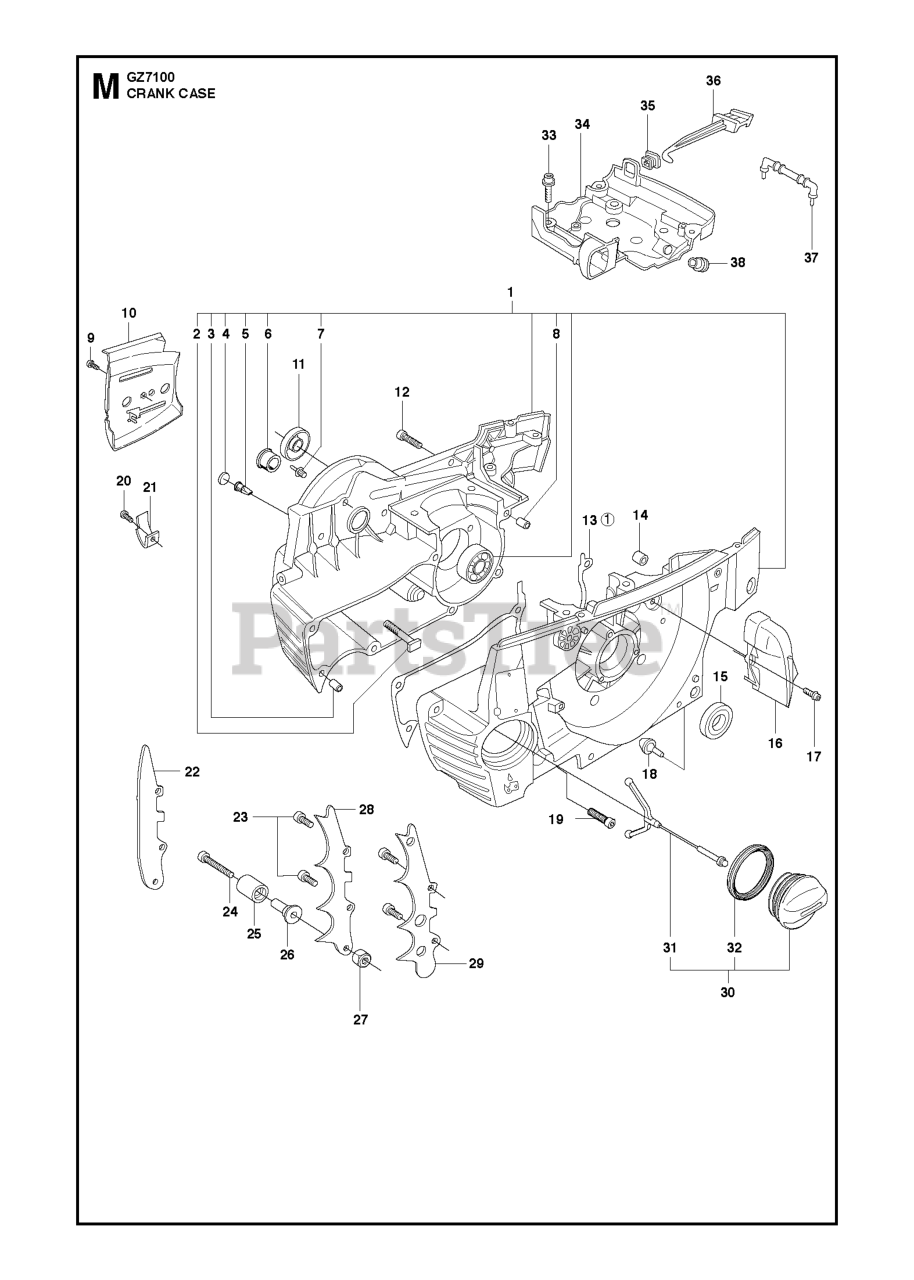

GZ 7100 - RedMax Chainsaw (2017-10) CRANKCASE Parts Diagram

Chainsaw

CRANKCASE Parts Diagram

  • Title

1

RedMax 503626814

CRANKCASE ASSY
(Superseded to 503626820)

$484.99

$

Usually ships in 3-10 days

0

2

RedMax 537051301

BOLT

Note: . 1

$10.99

$

In Stock, Qty 6

0

3

RedMax 501270801

SLEEVE

Note: . 1

$8.49

$

Usually ships in 3-10 days

0

4

RedMax 530026119

VALVE-CHECK (DUCKBILL)

Note: . 1

$4.49

$

In Stock, Qty 14

0

5

RedMax 537403501

PLUG
(Superseded to 537403502)

Note: . 1

$3.99

$

In Stock, only 4 left!

0

6

RedMax 503967001

BUSHING

Note: . 1

$10.99

$

In Stock, Qty 9

0

7

RedMax 503751801

PIN

Note: . 1

$7.99

$

In Stock, Qty 8

0

8

RedMax 501270801

SLEEVE

Note: . 1

$8.49

$

Usually ships in 3-10 days

0

9

RedMax 525887402

SCREW CITXPANT

$6.49

$

In Stock, Qty 20+

0

10

RedMax 537013701

BAR PLATE

$15.99

$

In Stock, only 2 left!

0

11

RedMax 503260301

SEAL

$21.99

$

In Stock, Qty 15

0

12

RedMax 586445401

SCREW ITXSCM LIMITER M5X20/8 T

$6.49

$

Usually ships in 3-10 days

0

13

RedMax 503627201

GASKET

$10.99

$

In Stock, Qty 7

0

14

RedMax 503857301

PROTECTOR

$6.99

$

Usually ships in 3-10 days

0

15

RedMax 505275719

SEAL RING

$17.99

$

In Stock, Qty 20+

0

16

RedMax 503628401

JET

$10.99

$

In Stock, Qty 7

0

17

RedMax 525755201

SCREW ITXSCFM M5X12 T27 12.9

$6.49

$

Usually ships in 3-10 days

0

18

RedMax 503846101

BUFFER

$8.99

$

In Stock, Qty 11

0

19

RedMax 575791202

SCREW ITXSCM M5X32.3 T27 TIP

$6.49

$

Usually ships in 3-10 days

0

20

RedMax 525824913

SCREW ITXSCM M5X20 T27 10.9 Z

$6.49

$

Usually ships in 3-10 days

0

21

RedMax 501686801

CHAIN CATCHER

$8.99

$

In Stock, Qty 6

0

22

RedMax 537042901

BUMPER

$14.99

$

Usually ships in 3-10 days

0

23

RedMax 575793501

SCREW ITXPANM M5X16 T27 10.9

$6.49

$

Usually ships in 3-10 days

0

24

RedMax 525755103

SCREW

$6.49

$

In Stock, only 4 left!

0

25

RedMax 537024401

SPACER

$9.99

$

In Stock, Qty 7

0

26

RedMax 537089201

CHAIN CATCHER

$10.99

$

In Stock, Qty 12

0

27

RedMax 503222401

NUT

$2.49

$

In Stock, Qty 20+

0

28

RedMax 537017101

FELLING DOG

$24.99

$

In Stock, only 1 left!

0

29

RedMax 503647902

FELLING DOG

$24.99

$

In Stock, only 1 left!

0

30

RedMax 537215206

TANK CAP

$13.99

$

In Stock, only 3 left!

0

31

RedMax 503578901

TANK LOCK

Note: . 30

$9.99

$

In Stock, Qty 15

0

32

RedMax 589241101

SEALING

Note: . 30

$8.99

$

In Stock, Qty 17

0

33

RedMax 525755201

SCREW ITXSCFM M5X12 T27 12.9

$6.49

$

Usually ships in 3-10 days

0

34

RedMax 588093702

BASE

$31.99

$

Usually ships in 3-10 days

0

35

RedMax 503734401

GROMMET

$6.99

$

In Stock, Qty 8

0

36

RedMax 515982201

CHOKE

$6.99

$

In Stock, Qty 19

0

37

RedMax 579468901

SUPPORT

$6.99

$

In Stock, Qty 10

0

38

RedMax 537095401

GROMMET

$7.99

$

In Stock, only 3 left!

0
