GZ 7100 - RedMax Chainsaw (2017-10) IGNITION SYSTEM Parts Diagram

Chainsaw

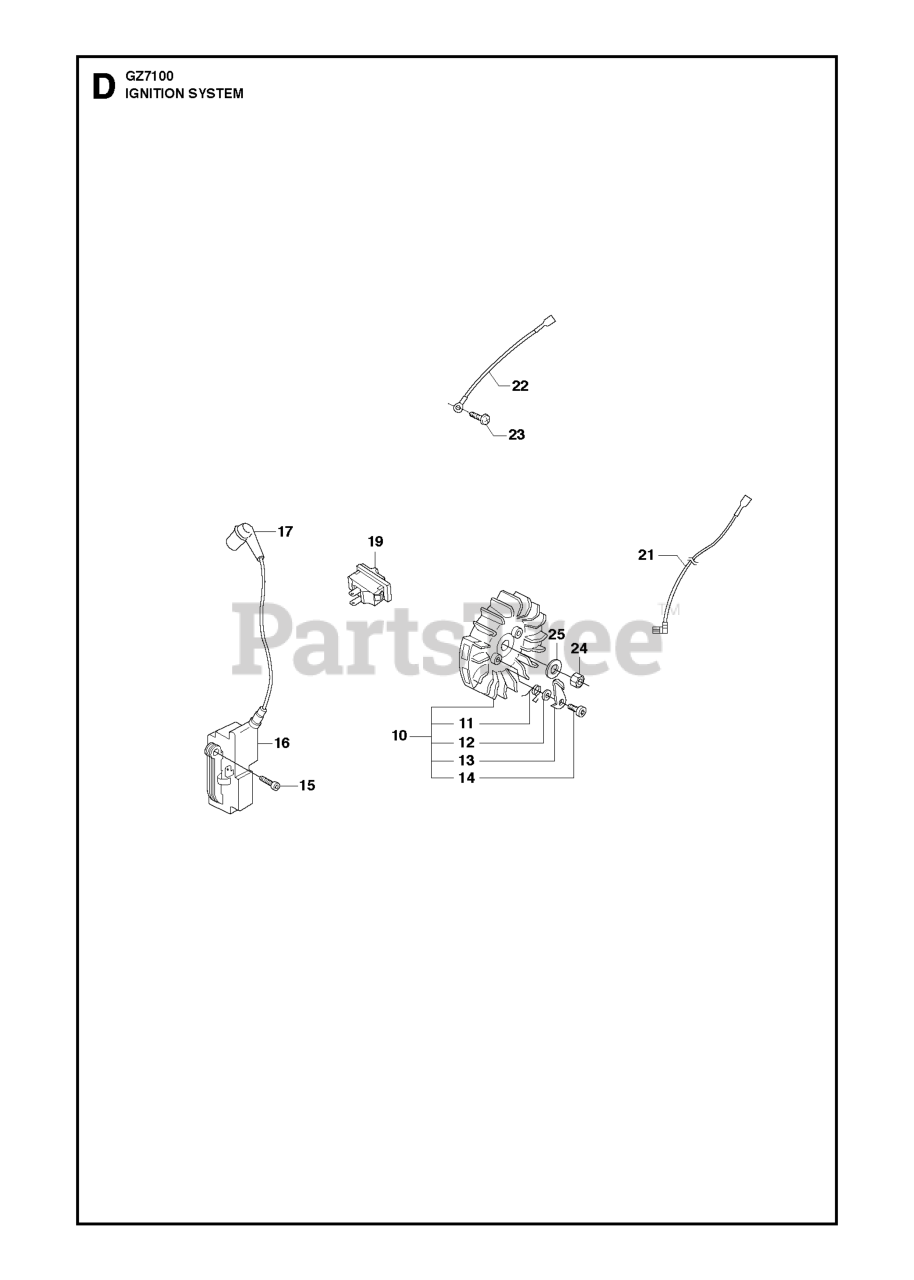

IGNITION SYSTEM Parts Diagram

  • Title

10

RedMax 537051605

FLYWHEEL

$182.99

$

In Stock, only 1 left!

0

11

RedMax 501673501

SPRING

Note: . 10

$7.49

$

In Stock, Qty 20+

0

12

RedMax 503230042

WASHER

Note: . 10

$6.49

$

In Stock, Qty 16

0

13

RedMax 537015501

PAWL

Note: . 10

$9.49

$

In Stock, only 1 left!

0

14

RedMax 506006901

SCREW
(Superseded to 501819901)

Note: . 10

$6.49

$

In Stock, Qty 8

0

15

RedMax 582029701

SCREW ITXSCM M5X20 T27 12.9 T

$6.49

$

In Stock, Qty 18

0

16

RedMax 588937403

IGNITION MODULE

Note: DM51 COT

$145.99

$

In Stock, only 4 left!

0

17

RedMax 501485402

SPARK PLUG CONN. KIT

$12.99

$

In Stock, Qty 20+

0

19

RedMax 503718201

START/STOP SWITCH

$13.99

$

In Stock, Qty 9

0

21

RedMax 503626101

WIRE

$12.99

$

In Stock, only 2 left!

0

22

RedMax 503897601

CABLE

$7.99

$

In Stock, Qty 10

0

23

RedMax 525887402

SCREW CITXPANT

$6.49

$

In Stock, Qty 20+

0

24

RedMax 503221011

NUT M8X1

$6.49

$

In Stock, only 1 left!

0

25

RedMax 503230101

WASHER 8.4X16

$7.49

$

In Stock, only 1 left!

0
