H 121 GC (21AK121G931) - Huskee Garden Cultivator (2010) (Tractor Supply) Engine Assembly Parts Diagram

Garden Cultivator

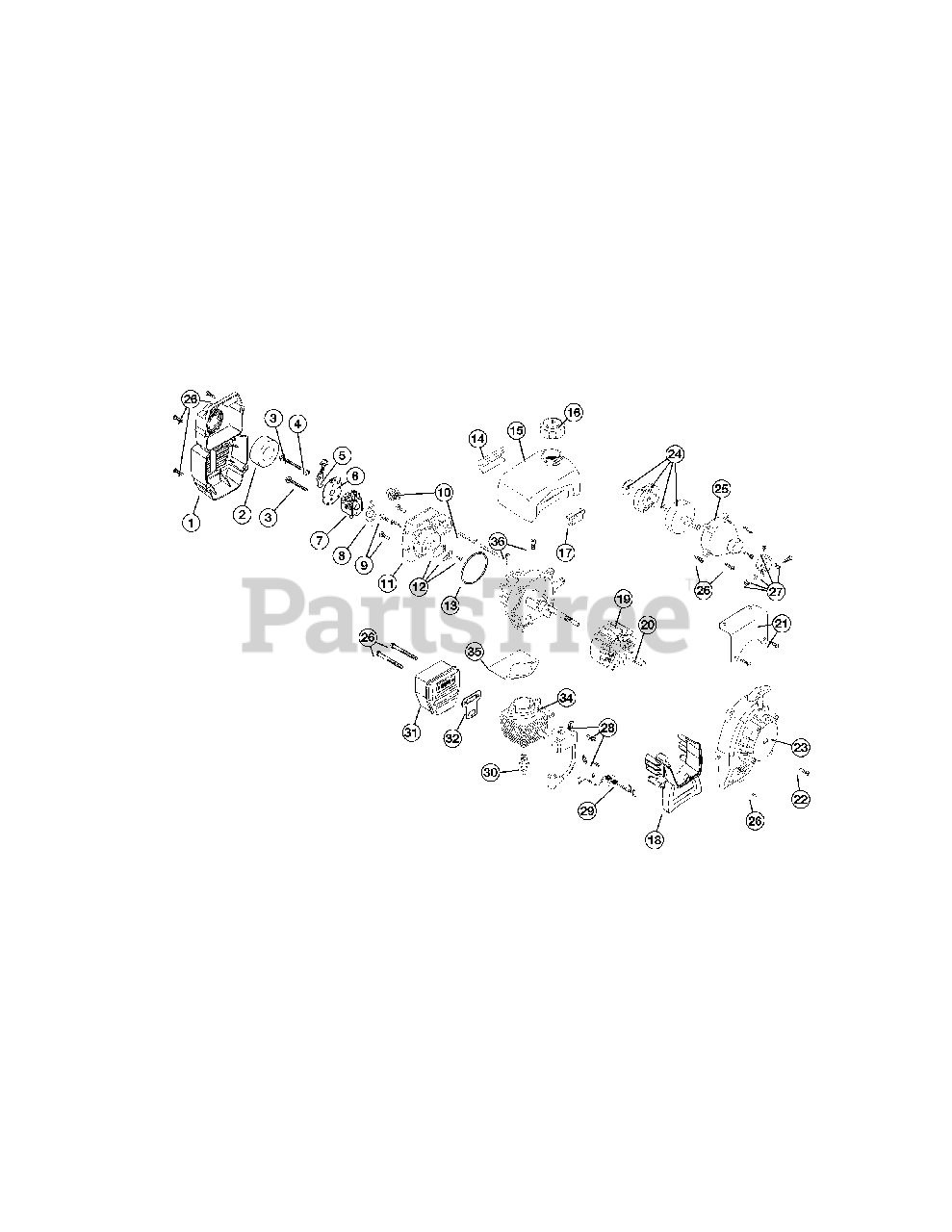

Engine Assembly Parts Diagram

  • Title

1

MTD 753-04511

Air Cleaner Assembly (includes 2 & 26)

$36.99

$

Usually ships in 3-6 days

0

2

MTD 791-180350B

Air Cleaner Filter

$9.49

$

In Stock, Qty 9

0

3

MTD 791-180351

Carburetor Mounting Screw

$

$

Not available

4

MTD 936-0271

Wavey Washer

$4.49

$

In Stock, Qty 12

0

5

MTD 753-04418

Choke Lever Assembly

$10.99

$

Usually ships in 3-6 days

0

6

MTD 753-04419

Choke Lever & Plate (includes 5)

$

$

Not available

7

MTD 753-04333

Carburetor Assembly (includes 8)

$

$

Not available

8

MTD 791-610675

Carburetor Gasket

$3.99

$

In Stock, Qty 20+

0

9

MTD 791-181860

Carb Mount Screw

$

$

Not available

10

MTD 791-683974B

Primer and Hose Assembly

$21.99

$

In Stock, Qty 20+

0

11

MTD 753-1196

Carb Mount Assembly (includes 9, 12 & 13)

$

$

Not available

12

MTD 791-684451

Reed Assembly

$

$

Not available

13

MTD 721-04163

Carburetor O-Ring

$3.49

$

In Stock, Qty 8

0

14

MTD 791-612134

Rear Mounting Pad

$

$

Not available

15

MTD 753-04306

Fuel Tank Assembly (includes 16)

$

$

Not available

16

MTD 791-182529

Fuel Cap Assembly

$19.99

$

In Stock, Qty 6

0

17

MTD 791-145308

Front Mounting Pad

$

$

Not available

18

MTD 753-04611

Shroud Extension and Stand (includes 26)

$

$

Not available

19

MTD 753-05240

Flywheel Assembly

$71.99

$

In Stock, only 3 left!

0

20

MTD 791-181065

Spacer

$

$

Not available

21

MTD 791-180317

Fuel Tank Guard Assembly

$

$

Not available

22

MTD 791-181912

Housing Screw

$6.49

$

Usually ships in 3-6 days

0

23

MTD 791-182776

Starter Housing Assembly (includes 22 & 26)

$

$

Not available

24

MTD 753-05860

Clutch Assembly

$23.99

$

In Stock, Qty 20+

0

25

MTD 791-180098

Clutch Cover Assembly (includes 26)

$32.99

$

In Stock, only 1 left!

0

26

MTD 791-181345

Cover Screw

$3.99

$

In Stock, Qty 17

0

27

MTD 791-153597

Upper Clamp Assembly

$15.99

$

Usually ships in 3-6 days

0

28

MTD 753-05420

Module Assembly
(Superseded to 753-05376)

$92.99

$

Usually ships in 3-6 days

0

29

MTD 791-182880

Wire Lead

$14.99

$

Usually ships in 3-6 days

0

30

MTD 791-610311B

Spark Plug

$13.99

$

In Stock, Qty 8

0

31

MTD 753-04926

Muffler Assembly (includes items 32, 33 & Spark Arrestor)

$101.99

$

Usually ships in 3-6 days

0

32

MTD 753-04619

Exhaust Gasket

$8.49

$

In Stock, only 3 left!

0

33

MTD 710-04188A

Muffler Mounting Bolt Assembly

$3.99

$

Usually ships in 3-6 days

0

34

MTD 753-04814

Cylinder Assembly (includes 35 & 36)

$78.99

$

In Stock, only 1 left!

0

35

MTD 753-04182

Cylinder Gasket

$15.99

$

Usually ships in 3-6 days

0

36

MTD 791-182723

Cylinder Bolt

$4.49

$

In Stock, Qty 20+

0

MTD 753-04986

Short Block Assembly

Note: (includes items 9, 19-20, 28,30, 34-36 & Crankcase & Piston), Not Shown

$190.99

$

Usually ships in 3-6 days

0
