H 1226 E (1696236-02) - Simplicity 26" Snow Thrower, 11.5hp Auger Drive Group Parts Diagram

26" Snow Thrower, 11.5hp

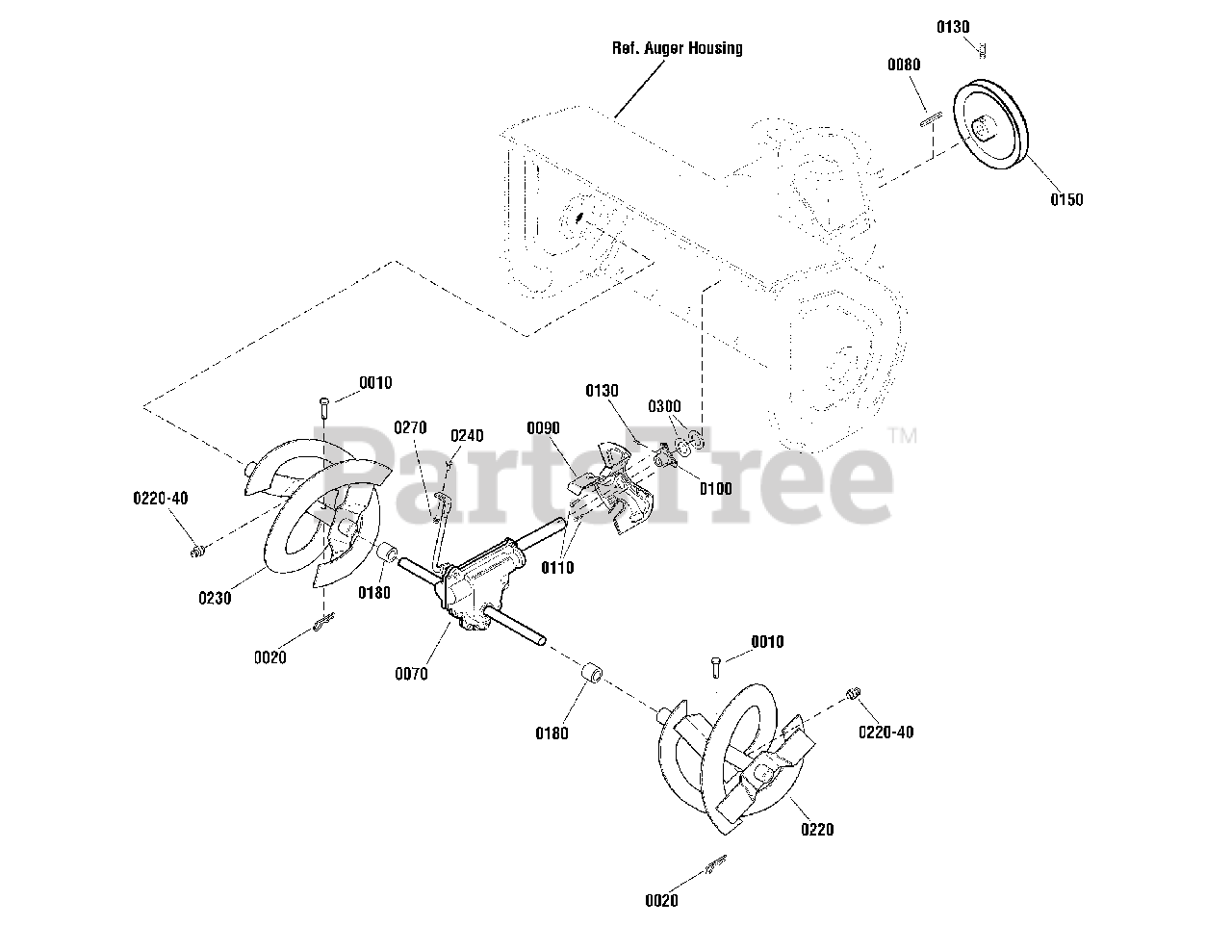

Auger Drive Group Parts Diagram

  • Title

0010

Simplicity 703063

PIN, Sheer, 1/4 x 1-3/4

$3.99

$

In Stock, Qty 20+

0

0020

Simplicity 703060

PIN, Cotter, Bow Tie, 3/16

$4.99

$

In Stock, Qty 6

0

0070

Simplicity 1755811YP

GEAR CASE ASSEMBLY
(Superseded to 1687729)

$575.99

$

Usually ships in 2-12 days

0

0080

Simplicity 056534MA

KEY, Square, 3/16 x 1

$5.49

$

In Stock, only 2 left!

0

0090

Simplicity 1739094AYP

IMPELLER
(Superseded to 1687600YP)

$91.99

$

In Stock, only 2 left!

0

0100

Simplicity 1739073YP

HUB, Impeller

$24.99

$

In Stock, only 2 left!

0

0110

Simplicity 1924856SM

SCREW, Hex Washer Head, Taptite, 5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, Qty 17

0

0130

Simplicity 1930540SM

SET SCREW, Square Head, 5/16-18 x 5/8

$4.99

$

In Stock, Qty 6

0

0150

Simplicity 1752220YP

PULLEY, Auger

$93.99

$

In Stock, only 2 left!

0

0180

Simplicity 1733406SM

SPACER, Auger

Note: (Use on 26" Models)

$5.99

$

Usually ships in 2-12 days

0

0220

Simplicity 1737079BMYP

AUGER ASSEMBLY, 28, LH

Note: (Use on 28" & 30" Models)

$220.99

$

Usually ships in 2-12 days

0

0220

Simplicity 1737083BMYP

AUGER ASSEMBLY, 24, LH

Note: (Use on 26" Models)

$158.99

$

Usually ships in 2-12 days

0

0230

Simplicity 1737078BMYP

AUGER ASSEMBLY, 28, RH

Note: (Use on 28" & 30" Models)

$164.99

$

Usually ships in 2-12 days

0

0230

Simplicity 1737082BMYP

AUGER ASSEMBLY, 24, RH

Note: (Use on 26" Models)

$112.99

$

Usually ships in 2-12 days

0

0220-40

Simplicity 2821133SM

FITTING, Zerk
(Superseded to 703907)

$5.49

$

In Stock, Qty 20+

0

0240

Simplicity 703185

BOLT, Carriage, 5/16-18 x 3/4, G5

$3.49

$

In Stock, Qty 20+

0

0270

Simplicity 015X79MA

NUT, Flange, 5/16-18, G5
(Superseded to 703409)

$5.99

$

In Stock, Qty 20+

0

0300

Simplicity 703151

WASHER, 3/4 ID x 1 OD

$3.49

$

In Stock, Qty 20+

0
