H 1524 E (1696920-00) - Simplicity 24" Snow Thrower, 14.5hp Auger Housing Group Parts Diagram

24" Snow Thrower, 14.5hp

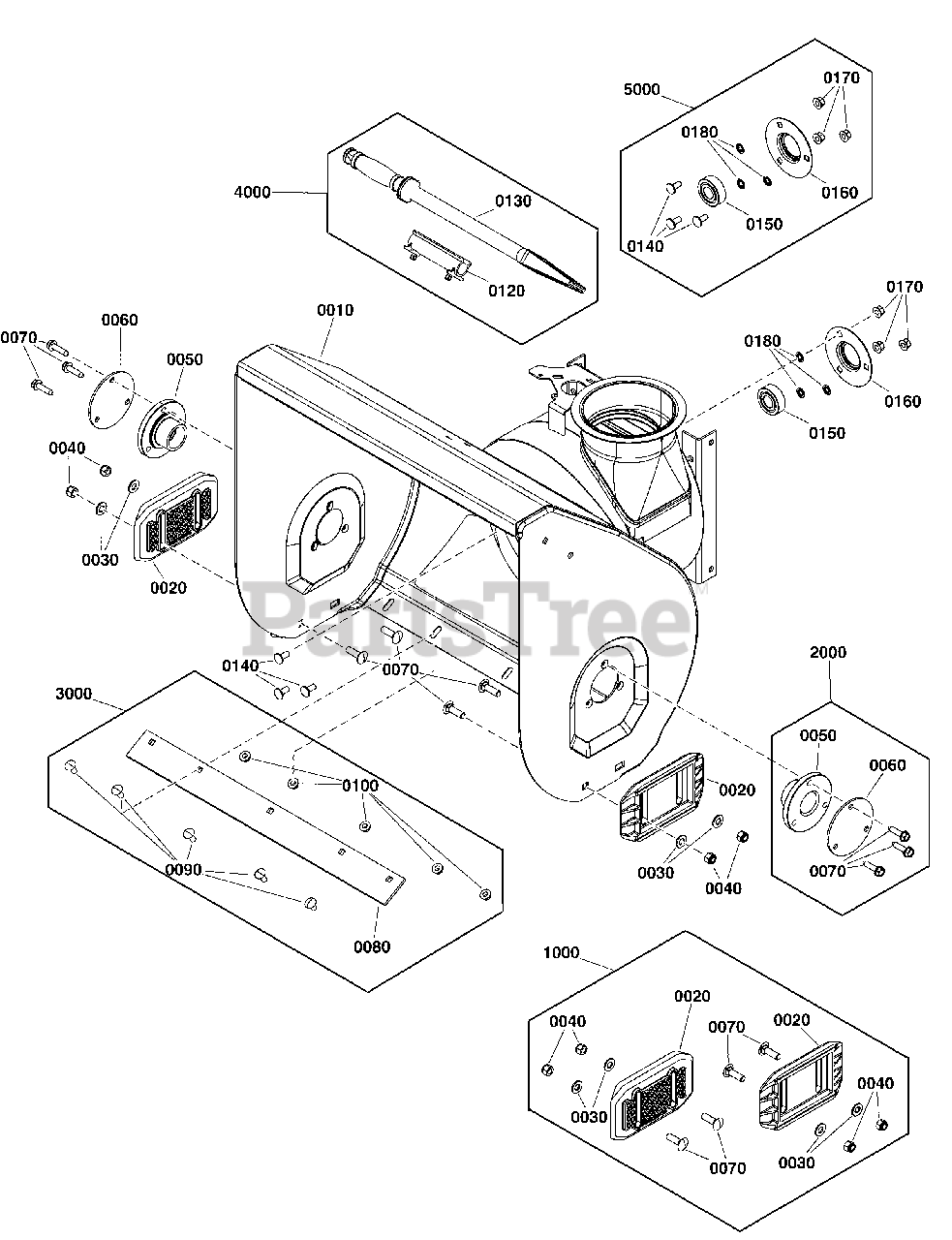

Auger Housing Group Parts Diagram

  • Title

0010

WELDMENT, Auger Housing, HD, 24", Orange

Note: (Not a serviceable part)

$

$

Not available

1000

Simplicity 772086

KIT, Skid Shoe

Note: (Incl. Ref. Nos. 0020, 0030, 0040, 0110)

$46.99

$

Usually ships in 2-12 days

0

0020

SHOE, Skid, Reversible, Thin

$

$

Not available

0030

WSHR .406 FLAT ZINC/CLEAR

$

$

Not available

0040

NUT 3/8-16 GR5 HEXNYL ZINC/CLR

$

$

Not available

0110

Simplicity 80003604

BOLT,3/8-16X1-1/4,GR5,CARRIAGE,ZC/CL
(Superseded to 703130)

$4.49

$

In Stock, Qty 13

0

2000

Simplicity 772166

KIT, Bearing Mounting Plate

Note: (Incl. Ref. Nos. 0050, 0060, 0070)

$21.99

$

Usually ships in 2-12 days

0

0050

BEARING, Flange

$

$

Not available

0060

Simplicity 1734932

$

$

Currently unavailable

0070

SCREW, Hex Washer Head Taptite 5/16-18 x 1-1/4

$

$

Not available

3000

Simplicity 772147

KIT, Scraper Bar 24"

Note: (Incl. Ref. Nos. 0080, 0090, 0100)

$50.99

$

In Stock, only 1 left!

0

0080

BLADE, Scraper, 24" (Used on 1691368)

$

$

Not available

0090

BOLT 5/16-18X0.625 CARRIAGE SQ GR5 ZC/CL

$

$

Not available

0100

NUT 5/16-18 HEX FLNG CNTR LCK ZC/CL

$

$

Not available

4000

Simplicity 707549

KIT, CLEANOUT BRUSH STICK

Note: (Incl. Ref. Nos. 0120, 0130)

$30.99

$

Usually ships in 2-12 days

0

0120

CLAMP, Cleanout

$

$

Not available

0130

SHOVEL, Cleanout

$

$

Not available

5000

Simplicity 772145

KIT, Bearing Mounting Plate

Note: (Incl. Ref. Nos. 0140, 0150, 0160, 0170, 0180)

$19.99

$

Usually ships in 2-12 days

0

0140

RHSSNB,5/16-18 X 3/4 GR5 ZINC/CLEAR

$

$

Not available

0150

BEARING-BALL 0.750ID 1.780OD 0.610LG

$

$

Not available

0160

RETAINER, BEARING CLEAR ZINC

$

$

Not available

0170

NUT, 5/16-18 Hex Flange Nyloc

$

$

Not available

0180

NUT, 5/16 X.625, Push Pal

$

$

Not available
