H 1528 E (1696518-01) - Simplicity 28" Snow Thrower, 14.5hp Engine & Frame Group - 14.5 & 16.5GrossTP Parts Diagram

28" Snow Thrower, 14.5hp

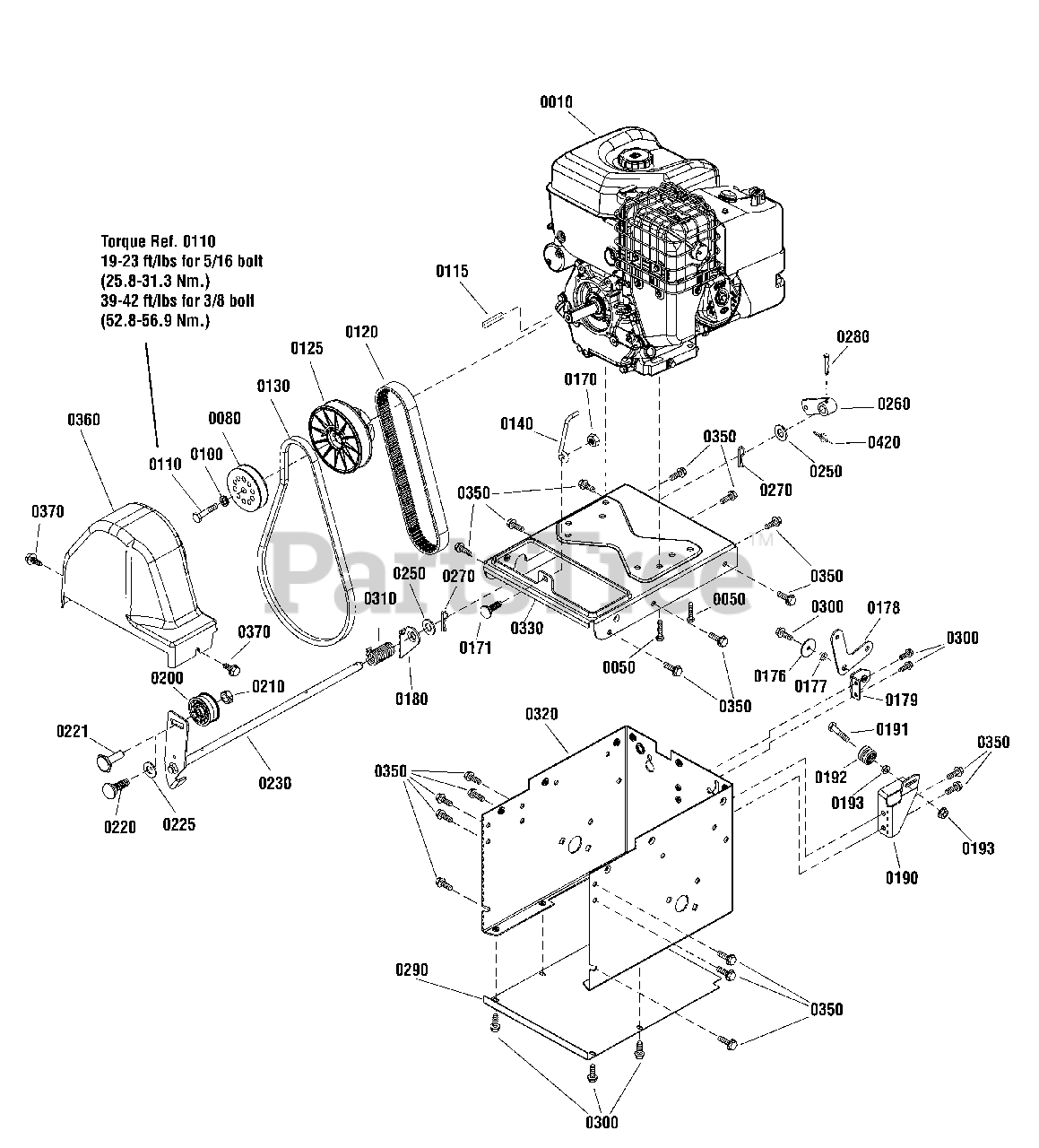

Engine & Frame Group - 14.5 & 16.5GrossTP Parts Diagram

  • Title

0010

Simplicity 25D137-0016-F1

* ENGINE, 16.5TP Briggs & Stratton

Note: (Engine Model: 25D137-0016-F1) (Engine Model: 19J137-0001-F1)

$

$

Not available

0010

Simplicity 25D137-0002-F1

* ENGINE, 16.5TP Briggs & Stratton

Note: (Engine Model: 25D137-0002-F1) (Engine Model: 19J137-0001-F1)

$

$

Not available

0010

Simplicity 19J137-0001-F1

* ENGINE, 14.5TP Briggs & Stratton

Note: (Engine Model: 19J137-0001-F1)

$1043.99

$

Usually ships in 2-12 days

0

0010

Simplicity 19J137-0002-F1

* ENGINE, 14.5TP Briggs & Stratton

Note: (Engine Model: 19J137-0002-F1)

$

$

Not available

0050

Simplicity 75246GS

SCREW, Hex Head, Trilobular, 3/8-16 x 1-1/4

$3.99

$

Usually ships in 2-12 days

0

0080

Simplicity 1737509YP

PULLEY

$

$

Not available

0100

Simplicity 1916965SM

LOCKWASHER, Spring, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 10

0

0110

Simplicity 703132

CAPSCREW, Hex Head, 3/8-24 x 1-3/4, G8

$3.99

$

Usually ships in 2-12 days

0

0115

Simplicity 2157427SM

KEY, Parallel, 3/16 x 3/16 x 1-1/4

$5.49

$

In Stock, only 1 left!

0

0120

Simplicity 1754209YP

V-BELT, Multi-Speed

$35.99

$

In Stock, Qty 12

0

0125

Simplicity 1733968YP

PULLEY

$76.99

$

In Stock, only 1 left!

0

0130

Simplicity 706174

V-BELT, 4L, 38.35, Auger

$40.99

$

In Stock, Qty 7

0

0140

Simplicity 1737377YP

STOP, Belt

$11.99

$

In Stock, only 1 left!

0

0170

Simplicity 703222

NUT, Hex, KEPS, 5/16-18

$5.99

$

In Stock, only 2 left!

0

0171

Simplicity 1931335SM

BOLT, Carriage, 5/16-18 x 1, G5
(Superseded to 703800)

$3.99

$

In Stock, Qty 16

0

0176

Simplicity 703136

WASHER, Flat, 1/4

$3.99

$

Usually ships in 2-12 days

0

0177

Simplicity 703124

SPACER, 1/4 x .118, G5

$3.99

$

Usually ships in 2-12 days

0

0178

Simplicity 1737329YP

BELLCRANK

$29.99

$

Usually ships in 2-12 days

0

0179

Simplicity 1737328AYP

BRACKET, Lower

$11.99

$

Usually ships in 2-12 days

0

0180

Simplicity 1737297YP

BRACKET, Support, Auger Idler

$9.49

$

Usually ships in 2-12 days

0

0190

Simplicity 1737347BMYP

BRACKET, Guide Wheel

$13.99

$

Usually ships in 2-12 days

0

0191

Simplicity 703234

CAPSCREW, Hex Head, 1/4-20 x 1-1/2, G5

$4.49

$

In Stock, only 3 left!

0

0192

Simplicity 579860MA

SPOOL CABLE, Auger Control

$5.99

$

In Stock, Qty 10

0

0193

Simplicity 703233

NUT, Flange, Serrated, 1/4-20, G5

$4.49

$

In Stock, only 2 left!

0

0200

Simplicity 1502120MA

IDLER, Plastic Ball Bearing

$21.99

$

In Stock, only 1 left!

0

0210

Simplicity 703230

NUT, Centerlock, 3/8-16

$4.99

$

In Stock, only 2 left!

0

0220

Simplicity 703227

BOLT, Carriage, 3/8-16 x 1-1/4

Note: (Use with Ref# 0225 Washer)

$4.99

$

Usually ships in 2-12 days

0

0221

Simplicity 1960032SM

CAPSCREW, Hex Head, 3/8-16 x 1-1/4

$5.49

$

In Stock, Qty 9

0

0225

Simplicity 1670971SM

WASHER, Thrust, 1/2 ID x 1 OD

Note: (Use with Ref# 0220 bolt only)

$4.49

$

In Stock, Qty 7

0

0230

Simplicity 1737296YP

AUGER IDLER
(Superseded to 1756662YP)

$57.99

$

Usually ships in 2-12 days

0

0250

Simplicity 1960027SM

WASHER, 1/2
(Superseded to 703128)

$3.49

$

In Stock, Qty 20+

0

0260

Simplicity 1733451SM

ARM, Control

$20.99

$

In Stock, Qty 5

0

0270

Simplicity 703300

PIN, Hair, 3/32 x 1.60, G5

$3.99

$

In Stock, Qty 20+

0

0280

Simplicity 703313

PIN, Clevis

$4.99

$

In Stock, Qty 8

0

0290

Simplicity 1737221BMYP

PANEL, Bottom

$43.99

$

Usually ships in 2-12 days

0

0300

Simplicity 703054

SCREW, Hex Washer Head, Thread Roll, 1/4-20 x 5/8

$4.49

$

In Stock, only 1 left!

0

0310

Simplicity 1737350YP

SPRING, Torsion

$7.99

$

In Stock, only 1 left!

0

0320

Simplicity 1737106CYP

FRAME

$119.99

$

Usually ships in 2-12 days

0

0330

Simplicity 706528

PLATE, Engine

$59.99

$

Usually ships in 2-12 days

0

0350

Simplicity 703228

SCREW, 5/16-18 X .750, Washer Head Taptite

$4.49

$

In Stock, Qty 20+

0

0360

Simplicity 1754153YP

COVER, Belt

$47.99

$

Usually ships in 2-12 days

0

0370

Simplicity 1751355YP

SCREW, Hex Washer Head, Taptite, SEMS, 1/4-20 x 3/4

$6.49

$

Usually ships in 2-12 days

0

0420

Simplicity 7023590SM

PIN, Cotter, Self Locking, 1/4

$3.99

$

In Stock, Qty 20+

0
