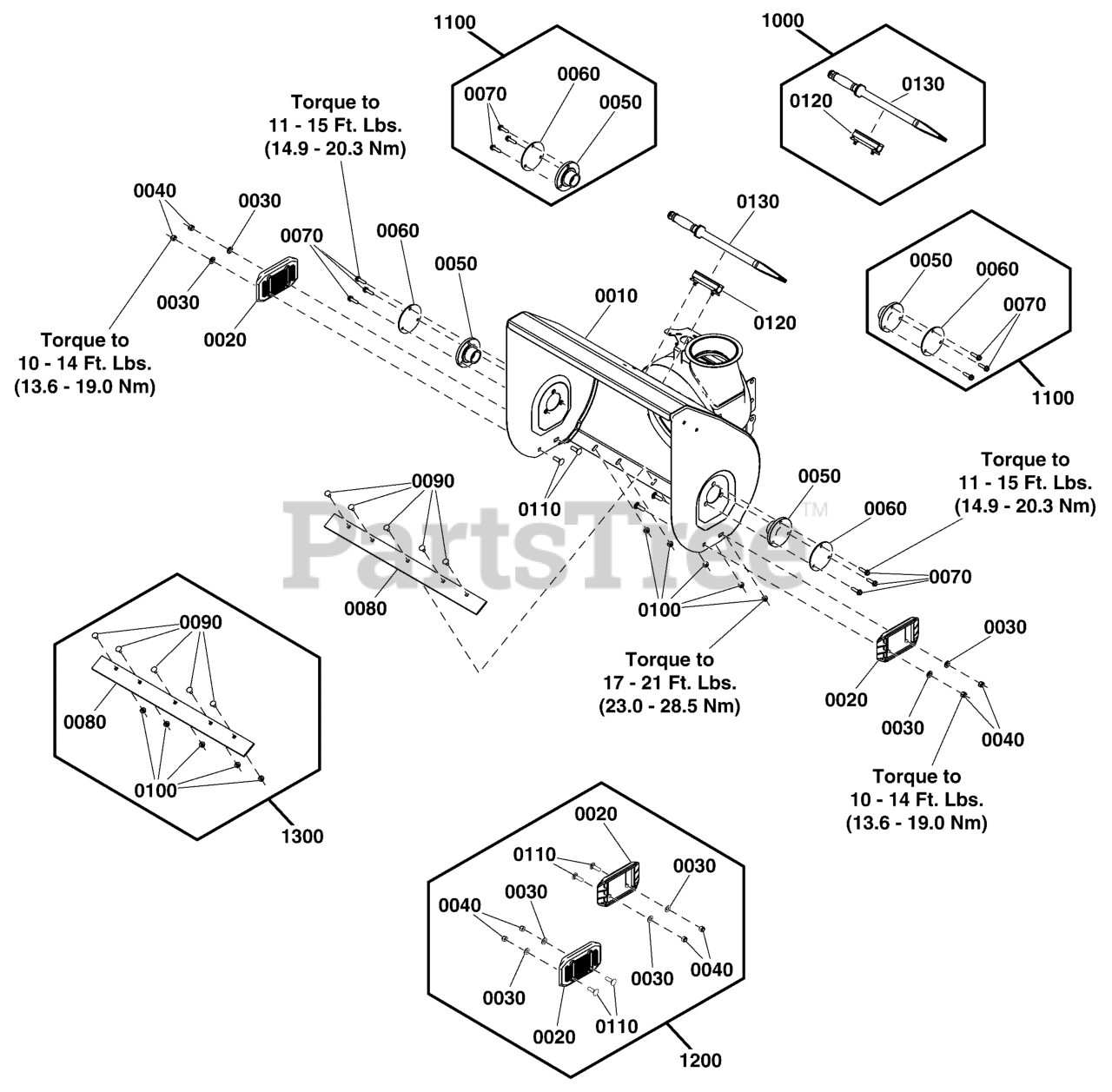

H 1528ES (1696925-00) - Snapper 28" Snow Thrower, 14.5hp (2019) Auger Housing Group Parts Diagram

28" Snow Thrower, 14.5hp

Auger Housing Group Parts Diagram

  • Title

0010

WELDMENT, Auger Housing, HD, 28", Red

Note: (Not a serviceable part)

$

$

Not available

1000

Snapper 707549

KIT, CLEANOUT BRUSH STICK

Note: (Incl. Ref. Nos. 0120, 0130)

$30.99

$

Usually ships in 2-12 days

0

0120

CLAMP, Cleanout

$

$

Not available

0130

SHOVEL, Cleanout

$

$

Not available

1100

Snapper 772166

KIT, Bearing Mounting Plate

Note: (Incl. Ref. Nos. 0050, 0060, 0070)

$21.99

$

Usually ships in 2-12 days

0

0050

Snapper 1733103SM

BEARING, Flange, 1.3/8 ID x 3-3/4 OD

$12.99

$

In Stock, only 2 left!

0

0060

Snapper 1734932ASM

COVER, Bushing
(Superseded to 1734932BMYP)

$12.99

$

Usually ships in 2-12 days

0

0070

Snapper 703167

SCREW, Hex Washer Head, Taptite, 5/16-18 x 1-1/4

$3.99

$

In Stock, only 4 left!

0

1200

Snapper 772086

KIT, Skid Shoe

Note: (Incl. Ref. Nos. 0020, 0030, 0040, 0110)

$46.99

$

Usually ships in 2-12 days

0

0020

SHOE, Skid, Reversible, Thin

$

$

Not available

0030

Snapper 703590

WASHER, .406

$3.99

$

In Stock, Qty 14

0

0040

NUT 3/8-16 GR5 HEXNYL ZINC/CLR

$

$

Not available

0110

Snapper 703130

BOLT, Carriage, 3/8-16 X 1 1/4, GR5

$4.49

$

In Stock, Qty 13

0

1300

Snapper 772148

KIT, Scraper Bar 28"
(Superseded to 1709947BMYP)

Note: (Incl. Ref. Nos. 0080, 0090, 0100)

$48.99

$

In Stock, Qty 11

0

0080

Snapper 1709947BMYP

SCRAPER BAR, 28"

$48.99

$

In Stock, Qty 11

0

0090

Snapper 703159

BOLT, Carriage, 5/16-18 x 5/8, G5

$3.99

$

In Stock, Qty 20+

0

0100

Snapper 704067

NUT, Hex Flange, 5/16-18

$3.99

$

In Stock, Qty 20+

0
