H 1536 (55AE332R150) - Cub Cadet Walk-Behind Mower (2003) Caster Wheel Fabricated Deck Parts Diagram

Walk-Behind Mower

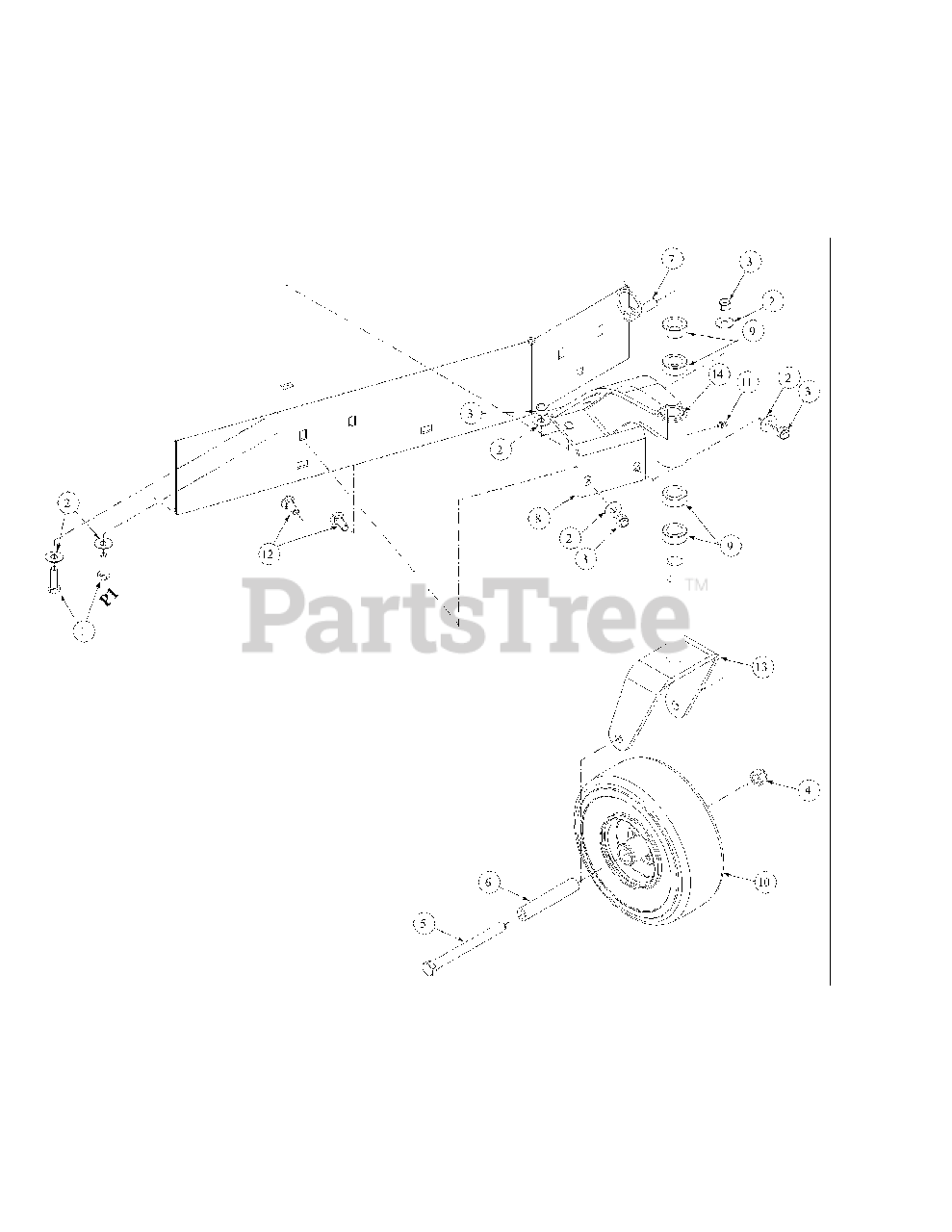

Caster Wheel Fabricated Deck Parts Diagram

  • Title

1

Cub Cadet 00011444

HHCS, Standard 3/8-16 x 1-1/4

$4.49

$

In Stock, only 3 left!

0

2

Cub Cadet 00012158

Flat Washer, 3/8

$4.99

$

In Stock, only 2 left!

0

3

Cub Cadet 712-04065

Lock Nut, Nylon Insert 3/8-16

$4.49

$

In Stock, Qty 15

0

4

Cub Cadet 00012428

Lock Nut, Nylon Insert, 1/2-13

$7.49

$

In Stock, only 2 left!

0

5

Cub Cadet 00012675

HHCS, 1/2-20, 5.5 Lg

$10.99

$

In Stock, only 1 left!

0

6

Cub Cadet 00014528

Spacer Wheel

$13.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 711-1105

Klik Pin, 1-3/4

$12.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 01006718

Caster Bracket Weldment

$

$

Not available

9

Cub Cadet 00021925

Caster Spacer

$17.99

$

In Stock, only 2 left!

0

10

Cub Cadet 02000192

Wheel Assembly 9.0 x 3.50

$144.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 737-04345

Grease Fitting, 1/4-28 x 3/16

$4.99

$

In Stock, Qty 7

0

12

Cub Cadet 01000643

Carriage Bolt, 3/8-16 x 1" Lg

$5.99

$

In Stock, only 2 left!

0

13

Cub Cadet 01001051-0637

Caster Yoke Weldment Assembly

$178.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 00064164

Caster Bushing

$24.99

$

In Stock, Qty 9

0
