H 1728 E (1696951-00) - Briggs & Stratton 28" Snow Thrower, 6.5 Gross TP (2020) Auger Housing Group Parts Diagram

28" Snow Thrower, 6.5 Gross TP

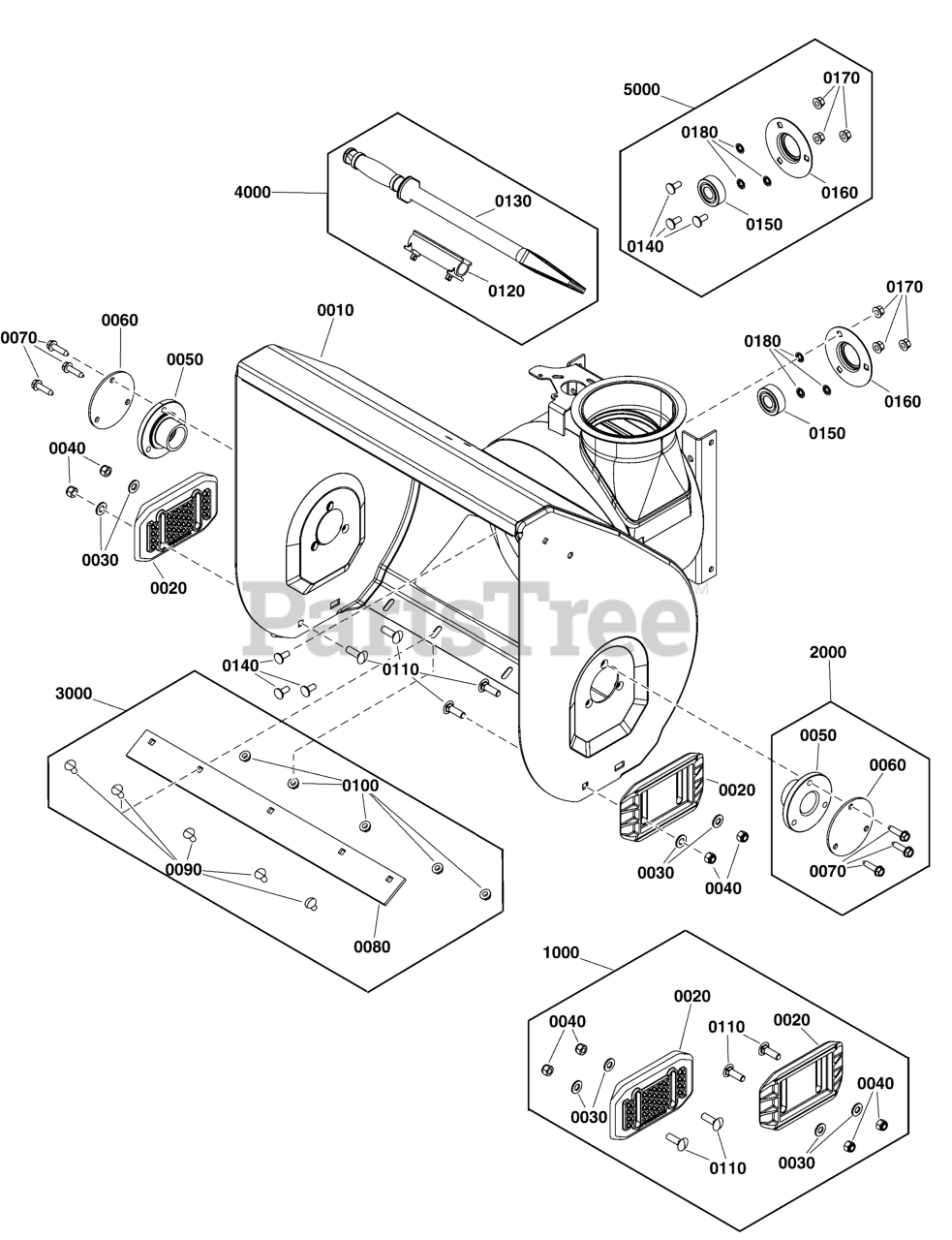

Auger Housing Group Parts Diagram

  • Title

0010

WELDMENT, Augur Housing, HD, 28", Charcoal

Note: (Not a serviceable part)

$

$

Not available

1000

Murray 772086

KIT, Skid Shoe

Note: (Incl. Ref. Nos. 0020, 0030, 0040, 0110)

$46.99

$

Usually ships in 2-12 days

0

0020

SHOE, Skid, Reversible, Thin

$

$

Not available

0030

Murray 703590

WASHER, .406

$3.99

$

In Stock, Qty 20+

0

0040

Murray 703117

NUT, Hex, Nylock, 3/8-16, GR5

$3.99

$

In Stock, Qty 20+

0

0110

Murray 703130

BOLT, Carriage, 3/8-16 X 1 1/4, GR5

$4.49

$

In Stock, Qty 13

0

2000

Murray 772166

KIT, Bearing Mounting Plate

Note: (Incl. Ref. Nos. 0050, 0060, 0070)

$21.99

$

Usually ships in 2-12 days

0

0050

Murray 1733103SM

BEARING, Flange, 1.3/8 ID x 3-3/4 OD

$12.99

$

In Stock, only 2 left!

0

0060

Murray 1734932BMYP

COVER, Bushing

$12.99

$

Usually ships in 2-12 days

0

0070

Murray 703167

SCREW, Hex Washer Head, Taptite, 5/16-18 x 1-1/4

$3.99

$

In Stock, Qty 5

0

3000

Murray 772148

KIT, Scraper Bar 28"
(Superseded to 1709947BMYP)

Note: (Incl. Ref. Nos. 0080, 0090, 0100)

$48.99

$

In Stock, Qty 11

0

0080

Murray 1709947BMYP

SCRAPER BAR, 28"

$48.99

$

In Stock, Qty 11

0

0090

Murray 703159

BOLT, Carriage, 5/16-18 x 5/8, G5

$3.99

$

In Stock, Qty 20+

0

0100

Murray 704067

NUT, Hex Flange, 5/16-18

$3.99

$

In Stock, Qty 20+

0

4000

Murray 707549

KIT, CLEANOUT BRUSH STICK

Note: (Incl. Ref. Nos. 0120, 0130)

$30.99

$

Usually ships in 2-12 days

0

0120

CLAMP, Cleanout

$

$

Not available

0130

SHOVEL, Cleanout

$

$

Not available

5000

Murray 772145

KIT, Bearing Mounting Plate

Note: (Incl. Ref. Nos. 0140, 0150, 0160, 0170, 0180)

$19.99

$

Usually ships in 2-12 days

0

0140

Murray 703185

BOLT, Carriage, 5/16-18 X 3/4

$3.49

$

In Stock, Qty 20+

0

0150

Murray 2108202SM

BEARING, Ball, 3/4 ID x 1-3/4 OD x 5/8"

$11.99

$

In Stock, Qty 20+

0

0160

Murray 1665982SM

RETAINER, Bearing

$7.49

$

In Stock, only 4 left!

0

0170

Murray 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 20+

0

0180

Murray 703297

RETAINER, 5/16 X 5/8

$3.99

$

In Stock, Qty 7

0
