H 1748 (55AE3D4S150) - Cub Cadet Walk-Behind Mower (2003) FH500V-AS14 Electric Equipment Parts Diagram

Walk-Behind Mower

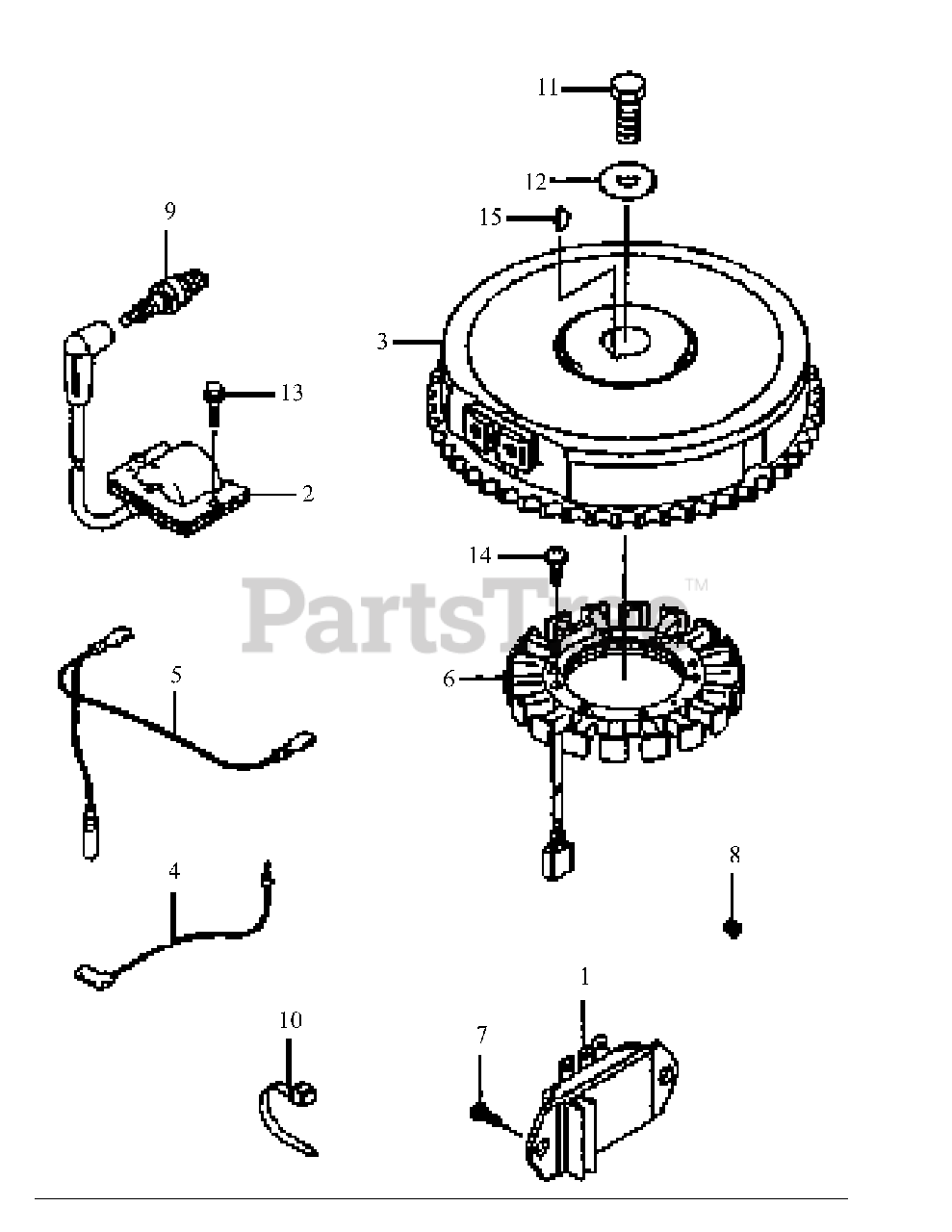

FH500V-AS14 Electric Equipment Parts Diagram

  • Title

1

Cub Cadet KM-21066-7011

Regulator, Voltage

$77.99

$

In Stock, Qty 16

0

2

Cub Cadet KM-21171-7034

Coil, Ignition

$81.99

$

In Stock, Qty 20+

0

3

Cub Cadet KM-21193-7001

Flywheel

Note: NLA

$

$

Not available

4

Cub Cadet KM-26011-7001

Wire, Lead

$3.99

$

In Stock, Qty 10

0

5

Cub Cadet KM-26030-7001

Harness

$10.99

$

In Stock, only 1 left!

0

6

Cub Cadet KM-59031-7014

Coil, Charging
(Superseded to KM-59031-7009)

$128.99

$

In Stock, only 2 left!

0

7

Cub Cadet KM-92009-2308

Screw

$0.99

$

In Stock, Qty 10

0

8

Cub Cadet KM-92066-7002

Plug

$

$

Not available

9

Cub Cadet 759-3331

Spark Plug

$3.99

$

In Stock, only 1 left!

0

10

Cub Cadet KM-92072-7001

Band

$

$

Not available

11

Cub Cadet KM-92154-7003

Bolt 12x30

$4.99

$

In Stock, Qty 9

0

12

Cub Cadet KM-92200-7002

Washer

$3.49

$

In Stock, only 4 left!

0

13

Cub Cadet KM-130CA0620

Bolt, Flange

$1.49

$

In Stock, Qty 6

0

14

Cub Cadet KM-224B0520

Screw Pan Hd.
(Superseded to KM-224AA0520)

$0.99

$

In Stock, Qty 16

0

15

Cub Cadet KM-510A5100

Key-Woodruff

$3.49

$

In Stock, Qty 9

0
