H 1748 (55AE3D4S750) - Cub Cadet Walk-Behind Mower Hydro Pump Assembly Parts Diagram

Walk-Behind Mower

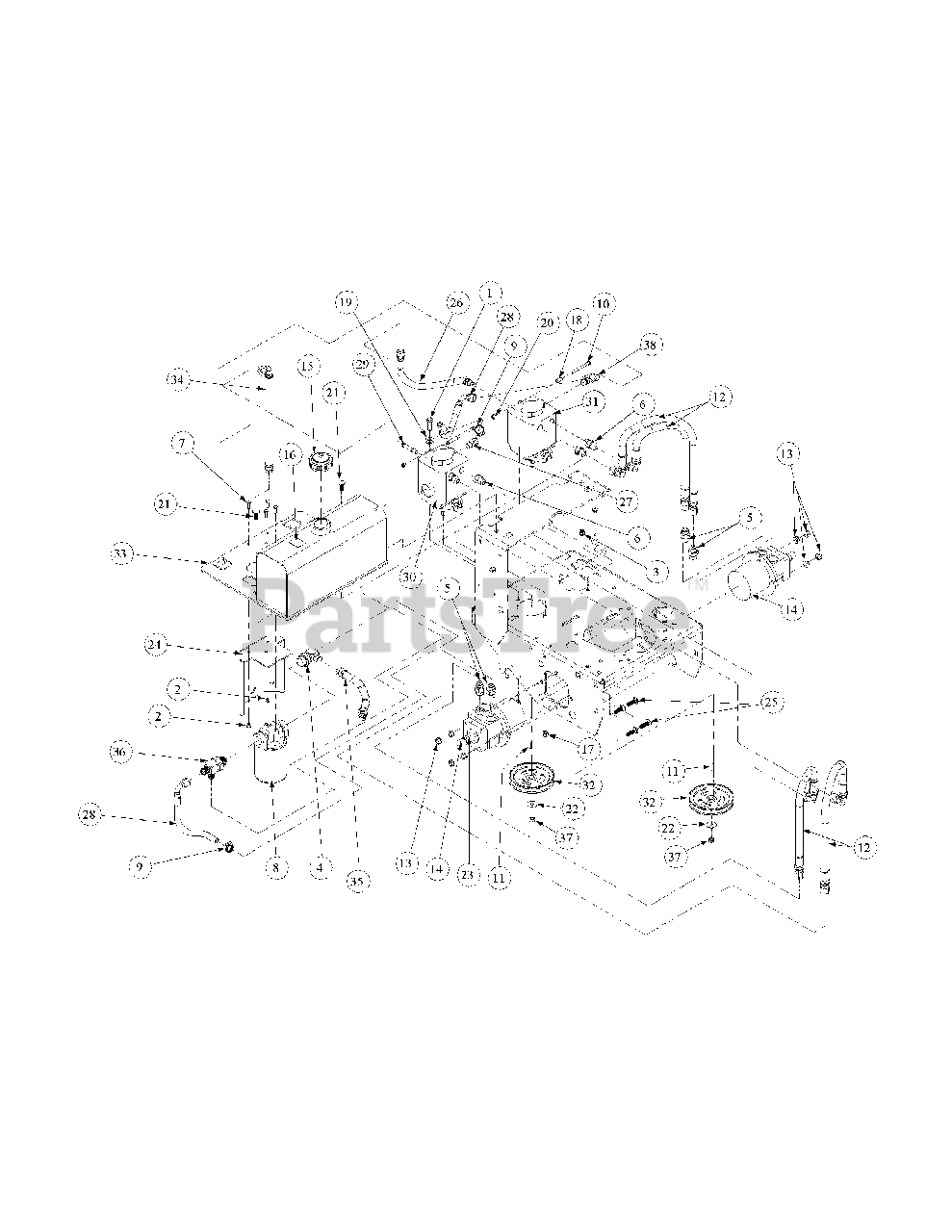

Hydro Pump Assembly Parts Diagram

  • Title

1

Cub Cadet 00011444

Cap Screw, Standard, 3/8-16 x 1-1/4

$4.49

$

In Stock, only 3 left!

0

2

Cub Cadet 00012152

Lock Nut Nylon Insert, 1/4-20

$4.49

$

In Stock, only 1 left!

0

3

Cub Cadet 712-04065

Lock Nut, 3/8-16

$4.49

$

In Stock, Qty 13

0

4

Cub Cadet 00012269

Elbow 90ø 1/2 x 3/4

$

$

Not available

5

Cub Cadet 00012288

Fitting, Aeroquip

$

$

Not available

6

Cub Cadet 00012426

Fitting, Aeroquip

$

$

Not available

7

Cub Cadet 00013131

Cap Screw, 1/4-20 x 3/4

$6.49

$

In Stock, only 1 left!

0

8

Cub Cadet 00017665P

Filter Head 3/4

$

$

Not available

9

Cub Cadet 00017892

Worm Gear Clamp, 5/16-7/8

$

$

Not available

10

Cub Cadet 00031672

Cap Screw, Socket Head, 1/4-20 x 1-1/2 Zinc

$3.49

$

Usually ships in 3-6 days

0

11

Cub Cadet 00020628

Key, 3/16" x 7/8"

$7.49

$

Usually ships in 3-6 days

0

12

Cub Cadet 00021609

Reverse Pressure Hydraulic Hose Assembly

$118.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 00022560

Flange Lock Hex Nut, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 00024060P

Hydraulic Motor, Wheel

$1140.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 00030261

Cap, Hydraulic Oil Tank

$39.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 00031994

Oil Label, 20W-50

$

$

Not available

17

Cub Cadet 00034224

Lock Nut, 3/8-16

$

$

Not available

18

Cub Cadet 01008607

Spacer, Pump Release

$

$

Not available

19

Cub Cadet 00083192

Washer, Idler
(Superseded to 736-0258)

$4.99

$

In Stock, Qty 10

0

20

Cub Cadet 712-0324

Hex Lock Nut, 1/4-20

$3.99

$

In Stock, only 2 left!

0

21

Cub Cadet 01000643

Carriage Bolt, 3/8-16 x 1.0

$5.99

$

In Stock, only 2 left!

0

22

Cub Cadet 01000942

Bell Washer, .396 x 1.140 x .095

$

$

Not available

23

Cub Cadet 914-0868

Woodruff Key, 3/16 x 3/4

$4.49

$

In Stock, only 3 left!

0

24

Cub Cadet 01001087-0637

Filter Guard Weldment

$

$

Not available

25

Cub Cadet 710-3034

Carriage Bolt, 3/8-16 x 1.25

$4.49

$

In Stock, only 2 left!

0

26

Cub Cadet 01006461

Left Pump Inlet Hose

$

$

Not available

27

Cub Cadet 01006462

Push On Fitting 45

$

$

Not available

28

Cub Cadet 01006463

Right Pump Inlet Hose

$

$

Not available

29

Cub Cadet 01006464

Push On Straight Fitting

$

$

Not available

30

Cub Cadet 01006478P

Right Hand, Hydro Pump, BDP 10A 308

$1006.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 01006479P

Left Hand, Hydro Pump, BDP 10A 413

$

$

Not available

32

Cub Cadet 01006799

Hydro Pump Pulley, 5.00 Dia

$192.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 01006820-0637

Fuel Tank Mounting Bracket and Integrated Hydraulic Tank

$

$

Not available

34

Cub Cadet 01006902

Left Hand, 14.25 Return Hose Assembly

$121.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 01006941

9.5" Supply Hose Assembly

$91.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 01006959

Tee Fitting, 3/4 x 1/2 x 1/2

$

$

Not available

37

Cub Cadet 01007309

Hex Nut, 3/8-24

$5.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 01007805

Tee Fitting

$

$

Not available

Cub Cadet 737-3120

Lubricant
(Superseded to 490-000-C051)

Note: (Not shown)

$23.99

$

In Stock, only 4 left!

0
