H 1748 (55AI4HPS050) - Cub Cadet Walk-Behind Mower Kawasaki FH541V-CS25 Cylinder & Crankcase Parts Diagram

Walk-Behind Mower

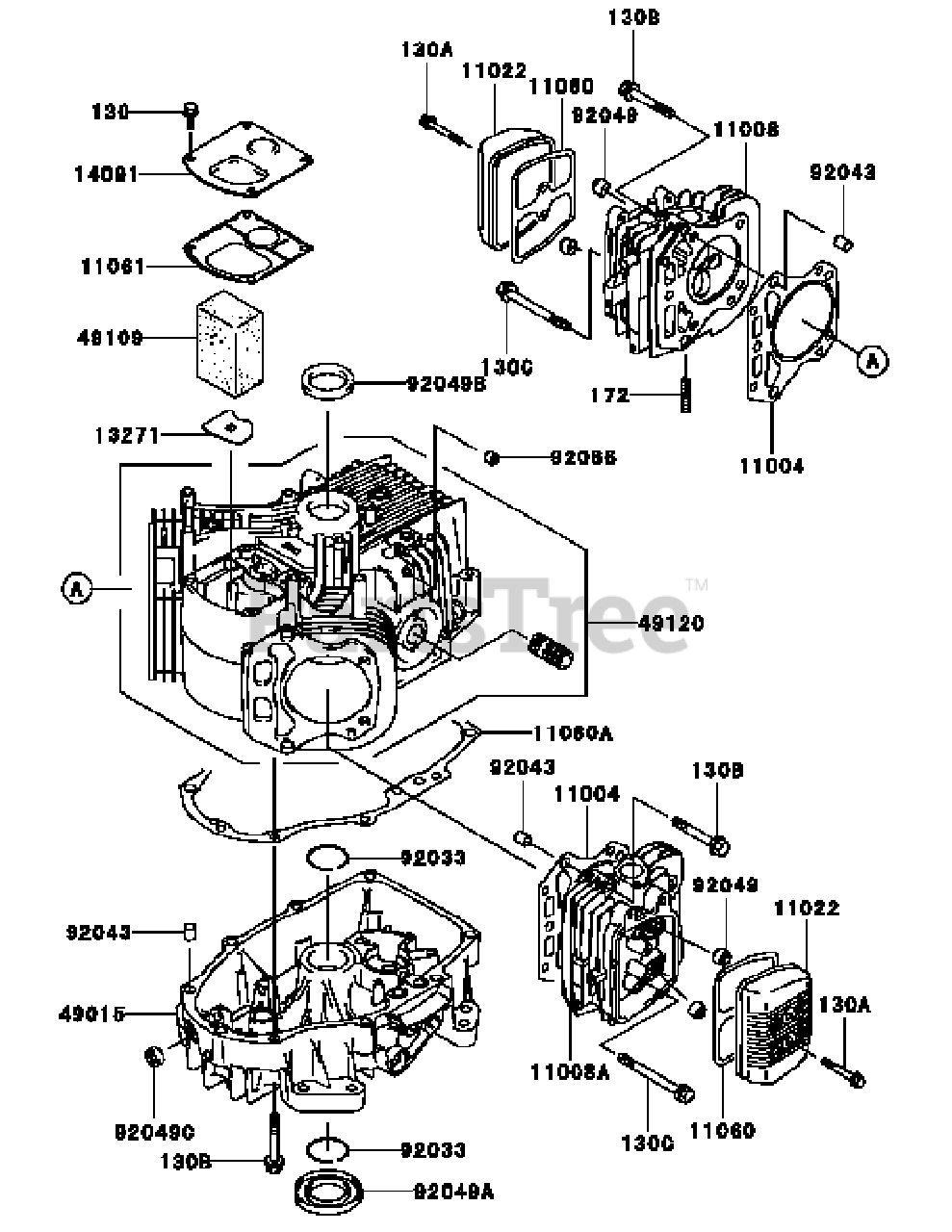

Kawasaki FH541V-CS25 Cylinder & Crankcase Parts Diagram

  • Title

11004

Cub Cadet KM-11004-7016

GASKET-HEAD

$10.99

$

In Stock, Qty 20+

0

11008

Cub Cadet KM-11008-6043

HEAD-COMP-CYLINDER,#1

$274.99

$

In Stock, Qty 9

0

1008A

Cub Cadet KM-11008-7020

HEAD-COMP-CYLINDER,#2

$274.99

$

In Stock, only 4 left!

0

11022

Cub Cadet KM-11022-7003

CASE-ROCKER

$14.99

$

In Stock, only 2 left!

0

11060

Cub Cadet KM-11060-7001

GASKET,ROCKER CASE

$6.99

$

In Stock, Qty 20+

0

11060A

Cub Cadet KM-11060-7008

GASKET,CRANKCASE COVER

$6.99

$

In Stock, Qty 20+

0

11061

Cub Cadet KM-11061-7001

GASKET,BREATHER
(Superseded to KM-99996-6104)

$19.99

$

In Stock, Qty 20+

0

130

Cub Cadet KM-130B0612

BOLT-FLANGED,6X12
(Superseded to KM-130BA0612)

$1.99

$

In Stock, Qty 20+

0

130A

Cub Cadet KM-130B0640

BOLT-FLANGED,6X40
(Superseded to KM-130BA0640)

$1.49

$

In Stock, only 4 left!

0

130B

Cub Cadet KM-130T0850

BOLT-FLANGED,8X50
(Superseded to KM-130CA0850)

$1.99

$

In Stock, Qty 20+

0

130C

Cub Cadet KM-130T0875

BOLT-FLANGED,8X75
(Superseded to KM-130CA0875)

$2.99

$

In Stock, Qty 20+

0

13271

Cub Cadet KM-13271-7016

PLATE

$2.49

$

In Stock, Qty 13

0

14091

Cub Cadet KM-14091-7006

COVER
(Superseded to KM-99996-6104)

$19.99

$

In Stock, Qty 20+

0

172

Cub Cadet KM-172G0818

BOLT-STUD,8X18
(Superseded to KM-172BA0818)

$1.99

$

In Stock, Qty 20+

0

49015

Cub Cadet KM-49015-6253

COVER-CRANKCASE

$183.99

$

Usually ships in 2-5 days

0

49109

Cub Cadet KM-49109-7002

ELEMENT-BREATHER
(Superseded to KM-99996-6104)

$19.99

$

In Stock, Qty 20+

0

49120

Cub Cadet KM-49120-7023

CRANKCASE-COMP

$

$

Not available

92033

Cub Cadet KM-92033-7003

RING-SNAP

$0.99

$

In Stock, Qty 20+

0

92043

Cub Cadet KM-92043-7001

PIN

$0.99

$

In Stock, Qty 20+

0

92049

Cub Cadet KM-92049-7001

SEAL-OIL,RVC2 6X11X10.2
(Superseded to KM-92049-0862)

$10.99

$

Usually ships in 3-6 days

0

92049A

Cub Cadet KM-92049-7015

SEAL-OIL,SD 35X62X8 L HS

$8.99

$

In Stock, Qty 20+

0

92049B

Cub Cadet KM-92049-7016

SEAL-OIL,SD 35X48X8 R HS

$6.99

$

In Stock, Qty 20+

0

92049C

Cub Cadet KM-92049-7019

SEAL-OIL,SO 8X14X5 HS

$2.49

$

In Stock, Qty 20+

0

92066

Cub Cadet KM-92066-7002

PLUG

$

$

Not available
