H 1748 (55AI4HPS750) - Cub Cadet Walk-Behind Mower FH541V-BS31 Electric Equipment Parts Diagram

Walk-Behind Mower

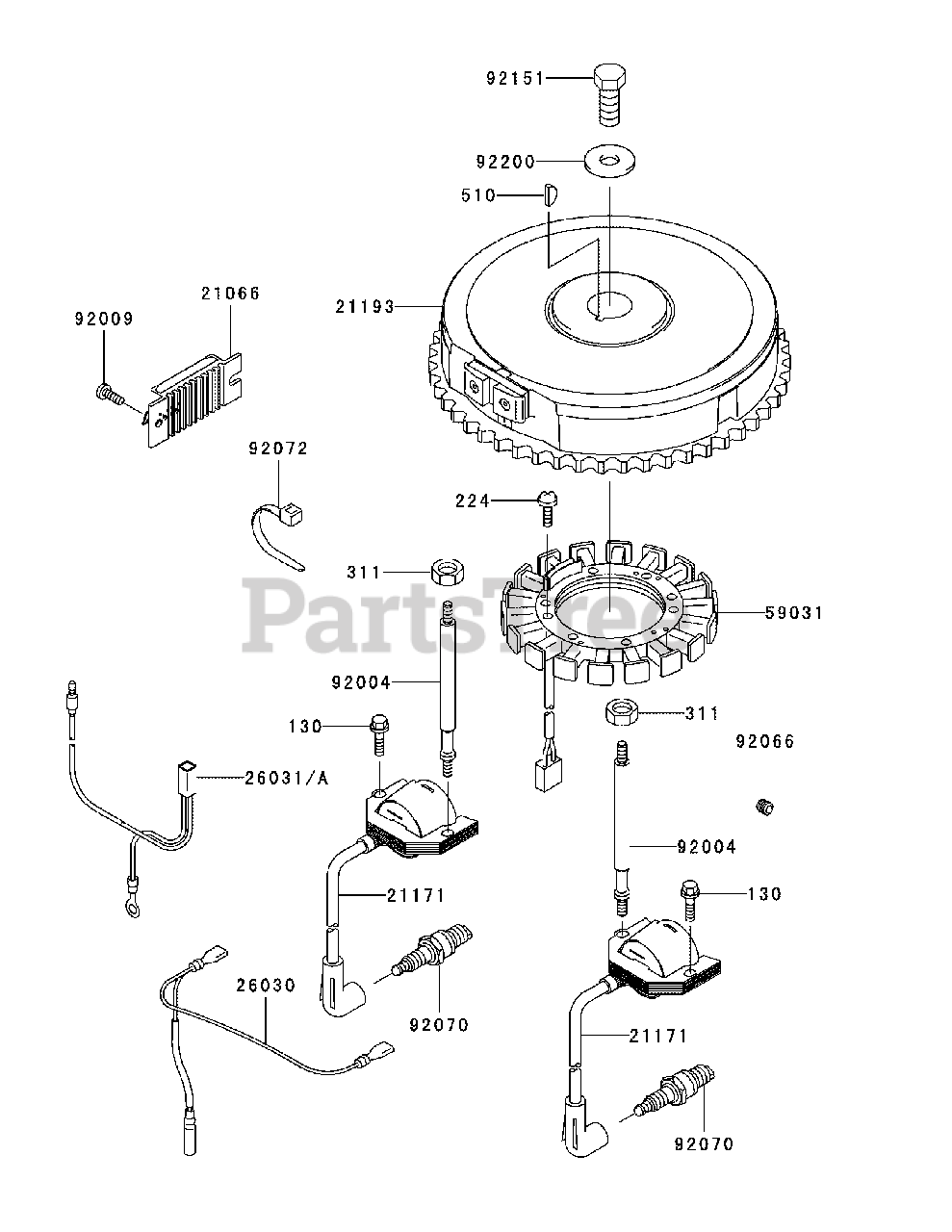

FH541V-BS31 Electric Equipment Parts Diagram

  • Title

21066

Cub Cadet KM-21066-7011

REGULATOR-VOLTAGE

$79.99

$

In Stock, Qty 20+

0

21171

Cub Cadet KM-21171-7034

COIL-ASSY-IGNITION

$83.99

$

In Stock, Qty 20+

0

21193

Cub Cadet KM-21193-7007

FLYWHEEL-ASSY

$

$

Not available

26030

Cub Cadet KM-26030-7001

HARNESS

$11.99

$

In Stock, Qty 11

0

26031A

Cub Cadet KM-26031-7012

HARNESS

$8.99

$

In Stock, only 4 left!

0

59031

Cub Cadet KM-59031-7014

COIL-CHARGING
(Superseded to KM-59031-7009)

$133.99

$

In Stock, Qty 20+

0

92004

Cub Cadet KM-92004-7009

STUD
(Superseded to KM-92004-7026)

$4.99

$

In Stock, Qty 20+

0

92009

Cub Cadet KM-92009-2308

SCREW

$0.99

$

In Stock, Qty 12

0

92066

Cub Cadet KM-92066-7002

PLUG

$

$

Not available

92070

Cub Cadet TC-611049

PLUG-SPARK

$4.99

$

In Stock, Qty 12

0

92072

Cub Cadet KM-92072-7003

BAND

$1.49

$

In Stock, Qty 5

0

92151

Cub Cadet KM-92154-7003

BOLT,12X30

$4.99

$

In Stock, Qty 20+

0

92200

Cub Cadet KM-92200-7002

WASHER

$3.49

$

Usually ships in 2-5 days

0

130

Cub Cadet KM-130CA0620

BOLT-FLANGED

$

$

Not available

224

Cub Cadet KM-224B0520

SCREW-PAN-WP-CROS
(Superseded to KM-224AA0520)

$0.99

$

In Stock, Qty 20+

0

311

Cub Cadet KM-311AA0600

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

510

Cub Cadet KM-510A5100

KEY-WOODRUFF

$3.49

$

In Stock, Qty 20+

0
