H 1952 (55AI4HPD750) - Cub Cadet Walk-Behind Mower Engine Deck Assembly Hydro WT Parts Diagram

Walk-Behind Mower

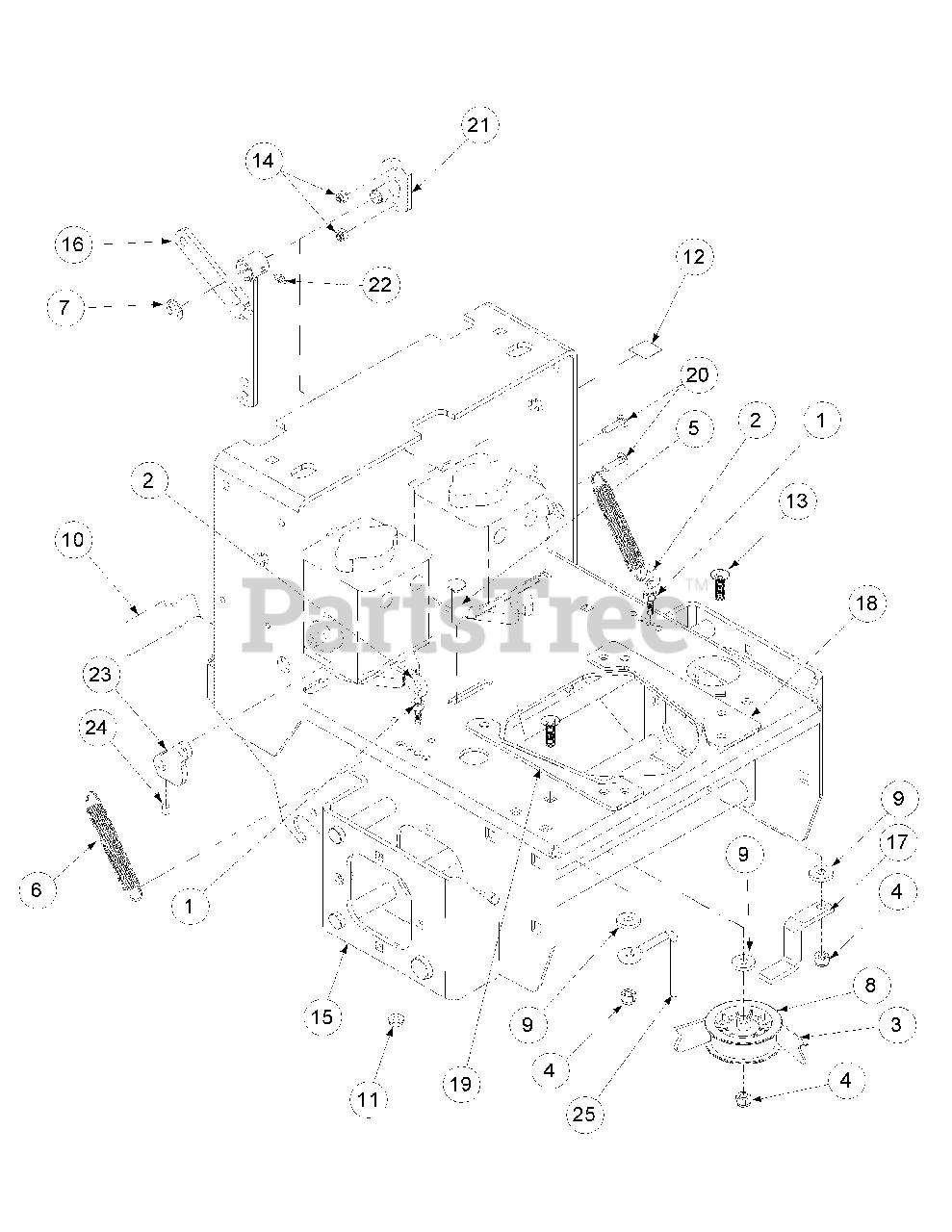

Engine Deck Assembly Hydro WT Parts Diagram

  • Title

1

Cub Cadet 00012166

Hex Nut, 5/16-18

$

$

Not available

2

Cub Cadet 00014459

Eye Bolt

$11.99

$

In Stock, only 2 left!

0

3

Cub Cadet 01007579

Belt, Hydro Pump
(Superseded to 01007579P)

$60.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 712-04065

Nut, L, Nylon Insert, 3/8-16 Grade A

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 01002011

Carriage Bolt, 3/8-16 x 2 Grade 5

$

$

Not available

6

Cub Cadet 00020816

Spring, Music Wire, LE-093G-9, Plated

$16.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 00021962

E-Ring, 5/8" #5113-62

$

$

Not available

8

Cub Cadet 02004558

Pulley, Flat Idler W/Adaptor

$24.99

$

In Stock, Qty 7

0

9

Cub Cadet 00083192

Washer, Idler
(Superseded to 736-0258)

$4.99

$

In Stock, Qty 20+

0

10

Cub Cadet 00090006

Decal, "Made In America"

$

$

Not available

11

Cub Cadet 712-3004A

Lock Nut, 5/16-18, Hex Flange Lock

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 01001035

Label, Mower, Warn, Open Belt Drive

$

$

Not available

13

Cub Cadet 710-3034

Carriage Bolt, 3/8-16 x 1.25 Grade 5

$4.49

$

In Stock, only 2 left!

0

14

Cub Cadet 00012152

Nut, L, Nylon Insert, 1/4-20 Grade A

$4.49

$

In Stock, only 1 left!

0

15

Cub Cadet 01002115

Engine Base Assembly

Note: NLA

$

$

Currently unavailable

16

Cub Cadet 01009455

Bellcrank Clutch

$

$

Not available

17

Cub Cadet 01003146-0637

Belt Guide, Engine, 36/42/48

$

$

Not available

18

Cub Cadet 01004393

Spacer, Engine, LH
(Superseded to 01004392-0637)

$

$

Not available

19

Cub Cadet 01004396

Spacer, Engine, RH
(Superseded to 01004395-0637)

$

$

Not available

20

Cub Cadet 00031602

Carriage Bolt, 1/4-20 x 1.00

$3.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 00021906

Bellcrank Pivot Weldment

$164.99

$

In Stock, only 1 left!

0

22

Cub Cadet 737-04345

Grease Fitting, 1/4-28 x 3/16

$4.99

$

In Stock, Qty 6

0

23

Cub Cadet 01007568

Hydro Pump Lever

$

$

Not available

24

Cub Cadet 01008004

Set Screw, 5/16-24 x .50

$

$

Not available

25

Cub Cadet 01005114

Belt Guide, 3.375

$14.99

$

Usually ships in 3-6 days

0
