H 2510 (41ADZ02C735) - Hyper Tough String Trimmer Engine Assembly Parts Diagram

String Trimmer

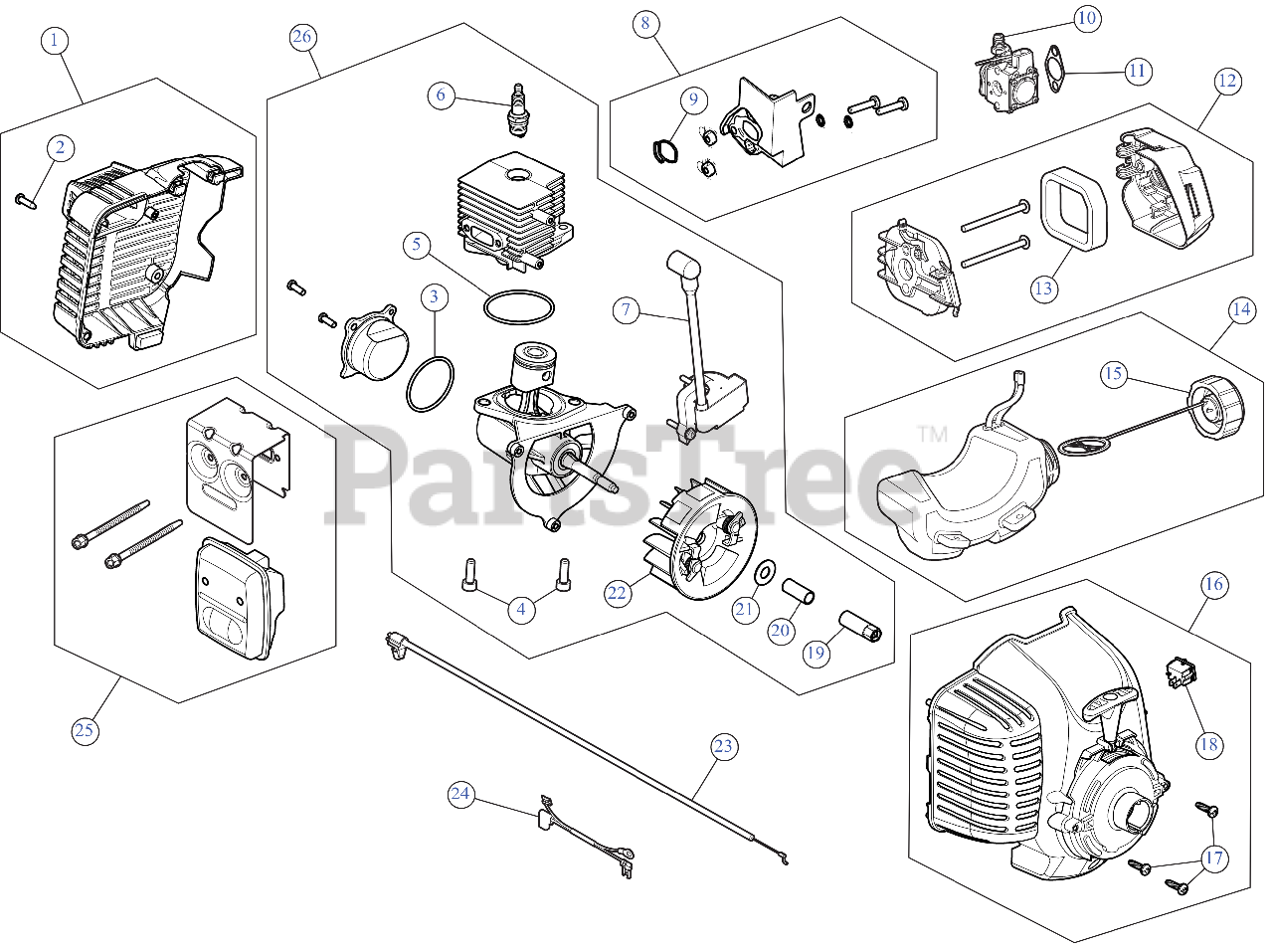

Engine Assembly Parts Diagram

  • Title

1

MTD 753-09084

HOUSING ASSEMBLY RR

Note: (Incl. 2)

$4.99

$

In Stock, only 2 left!

0

2

MTD 791-181345

SCREW, #8-16X.750 PH

$4.49

$

In Stock, Qty 20+

0

3

MTD 753-09086

O-RING SEAL CRANKCASE

$2.99

$

In Stock, Qty 20+

0

4

MTD 710-06241

SCREW 5/16-18x3/4 T40

$3.49

$

Usually ships in 3-6 days

0

5

MTD 753-09085

O-RING SEAL CYLINDER

$2.99

$

In Stock, Qty 13

0

6

MTD 753-06847

SPARK PLUG

$7.99

$

In Stock, Qty 20+

0

7

MTD 753-09104

MODULE ASSEMBLY

$16.99

$

In Stock, Qty 7

0

8

MTD 753-09105

INTAKE ASSEMBLY

Note: (Incl. 9)

$4.99

$

In Stock, Qty 5

0

9

MTD 721-04973

INSL/CYL SEAL

$3.49

$

Usually ships in 3-6 days

0

10

MTD 753-06423

CARB ASSEMBLY
(Superseded to 753-06190)

$37.99

$

In Stock, Qty 20+

0

11

MTD 753-06253

GASKET CARB

$3.99

$

In Stock, Qty 20+

0

12

MTD 753-09344

AIR CLEANER

Note: (Incl. 13)

$10.99

$

In Stock, only 2 left!

0

13

MTD 753-06417

AIR FLITER

$2.99

$

In Stock, Qty 20+

0

14

MTD 753-09345

FUEL TANK

Note: (Incl. 15)

$16.99

$

In Stock, only 2 left!

0

15

MTD 791-182612

FUEL CAP ASSEMBLY

$21.99

$

In Stock, only 1 left!

0

16

MTD 753-09346

STARTER HOUSING

Note: (Incl. 17 & 18)

$19.99

$

In Stock, only 2 left!

0

17

MTD 791-182195

SCREW #

$7.49

$

In Stock, Qty 19

0

18

MTD 791-182405

SW, MOMENTARY ON/O

$11.99

$

In Stock, only 3 left!

0

19

MTD 711-07481-1

POWER SHAFT ADAPTER

$2.99

$

In Stock, only 4 left!

0

20

MTD 753-09087

SPACER CRANKSHAFT

$3.49

$

Usually ships in 3-6 days

0

21

MTD 753-06247

BELL WASHER

$3.99

$

In Stock, Qty 17

0

22

MTD 753-09125

FLYWHEEL ASSEMBLY

$16.99

$

In Stock, only 3 left!

0

23

MTD 746-05451

THROTTLE CABLE

$3.99

$

In Stock, only 2 left!

0

24

MTD 794-00184

SHORT WIRE LEAD

$2.99

$

Usually ships in 3-6 days

0

25

MTD 753-09144

MUFFLER ASSEMBLY

$

$

Not available

26

MTD 753-09145

SHORT BLOCK

Note: (Incl. Crankcase, Cylinder, Piston, 3 - 7 & 19 - 22)

$65.99

$

Usually ships in 3-6 days

0
